Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Model Number: 2W-500-50B
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: plastic box+export carton
Supply Ability: 300000 Perch/Perches per Week
Port Size: |
2inch |
Structure: |
Diaphragm |
Type: |
Normally Closed |
Operating: |
Direct Acting |
Application: |
Gas, Water, Oil |
Body Material: |
Ss304 |
End Connection: |
G(BSP), NPT F |
Port Size: |
2inch |
Structure: |
Diaphragm |
Type: |
Normally Closed |
Operating: |
Direct Acting |
Application: |
Gas, Water, Oil |
Body Material: |
Ss304 |
End Connection: |
G(BSP), NPT F |

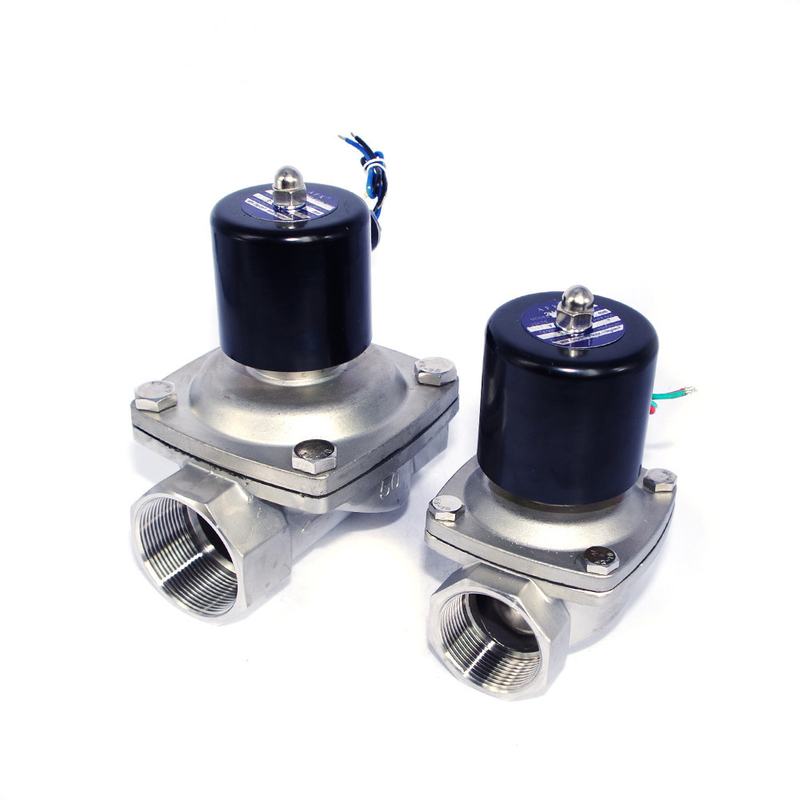

12 Volt Solenoid Valve Chemical Resistant 1/2"-2" High Temperature Diaphragm
|
Pipe size |
3/8 |
1/2” |
3/4” |
1” |
1 1/4“ |
1 1/2” |
2” |
|
Orifce size |
16mm |
16mm |
20mm |
25mm |
32mm |
40mm |
50mm |
|
CV valve |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
fuild |
Air, water, ol, the neutral gas,liquid |
||||||
|
Service voltage |
AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10% |
||||||
|
Operating |
Pilot operating |
Type |
Normally closed |
||||
|
Body Material |
stainless teel 304 |
viscosity |
(Below)20CST |
||||
|
Working pressure |
Water, air;0-10kgf/m2 ;oil:0-7kgf/m2 |
||||||
|
Material of seal |
Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON |
||||||
| Model NO. | A | B | C |
| 2W-160-10B | 69 | 57 | 107 |
| 2W-160-15B | 69 | 57 | 107 |
| 2W-200-20B | 73 | 57 | 115 |
| 2W-250-25B | 98 | 77 | 125 |
| 2W-320-32B | 115 | 87 | 153 |
| 2W-400-40B | 124 | 94 | 162 |
| 2W-500-50B | 168 | 123 | 187 |
