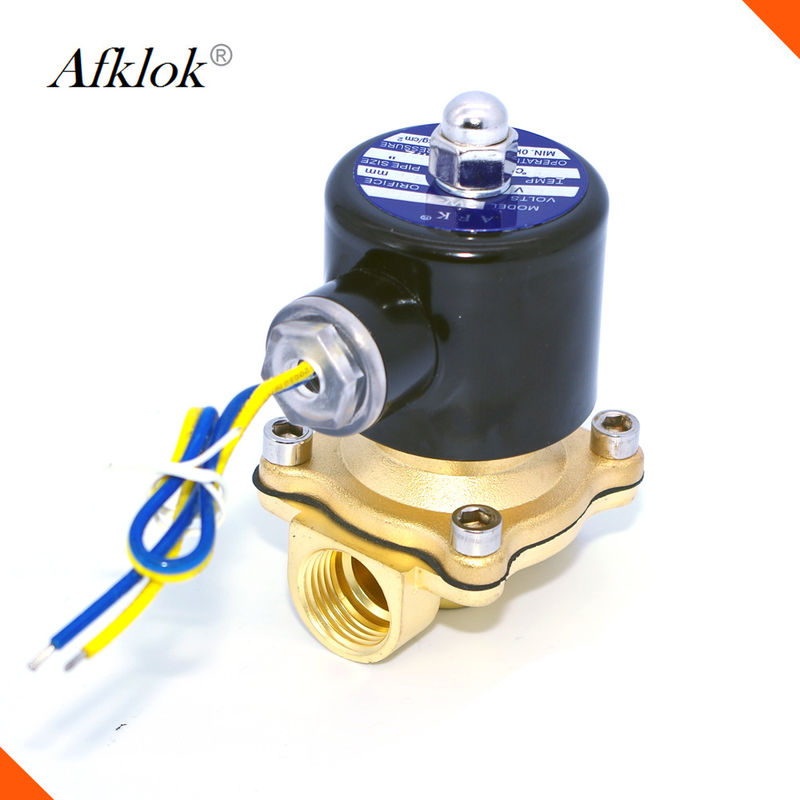

Diesel Oil Water Solenoid Valve 1 Inch Normally Closed High Temp Resistant

Product Details

Place of Origin: Guangdong, China (Mainland)

Brand Name: AFK

Certification: CE

Model Number: 2W-250-25

Payment & Shipping Terms

Minimum Order Quantity: 10 - 99 Pieces

Price: Negotiable

Packaging Details: PP bag+ white box+export carton

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 30000 Piece/Pieces per Week

Get Best Price
Contact Now
Specifications
Highlight:

stainless steel solenoid valves for water

,

water control solenoid valve

Application:
General, Water, Oil, Air
Temperature Of Media:
High Temperature
Port Size:
1"
Working Pressure:
0-10bar
Connection:
G , NPT Thread
Media Temperature:
-5-80C, 120C, 150C
Application:
General, Water, Oil, Air
Temperature Of Media:
High Temperature
Port Size:
1"
Working Pressure:
0-10bar
Connection:
G , NPT Thread
Media Temperature:
-5-80C, 120C, 150C
Description
Diesel Oil Water Solenoid Valve 1 Inch Normally Closed High Temp Resistant
2W Low Pressure Electric Water Solenoid Valve 220v 1/2 2W-160-15

Product Description



Model NO.

2w-025-06

2w-025-08

2w-040-10

2w-160-10

2w-160-15

2w-200-20

2w-250-25

2w-320-32

2w-400-40

2w-500-50

Pipe size

1/8”

1/4”

3/8”

1/2”

3/4”

1”

1 1/4

1 1/2”

2”

Orifce size

2.5mm

4mm

4mm

16mm

16mm

20mm

25mm

32mm

40mm

50mm

CV valve

0.23

0.6

4.8

4.8

7.6

12

24

29

48

fuild

Air, water, ol, the neutral gas,liquid

Service voltage

AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%

Operating

Direct acting

Type

Normally closed

Body Material

Brass

viscosity

(Below)20CST

Working pressure

Water, air;0-10kgf/m2 ;oil:0-7kgf/m2

Material of seal

Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON






Diesel Oil Water Solenoid Valve 1 Inch Normally Closed High Temp Resistant 0

Diesel Oil Water Solenoid Valve 1 Inch Normally Closed High Temp Resistant 1

Detailed Images
Diesel Oil Water Solenoid Valve 1 Inch Normally Closed High Temp Resistant 2Diesel Oil Water Solenoid Valve 1 Inch Normally Closed High Temp Resistant 3
