Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK

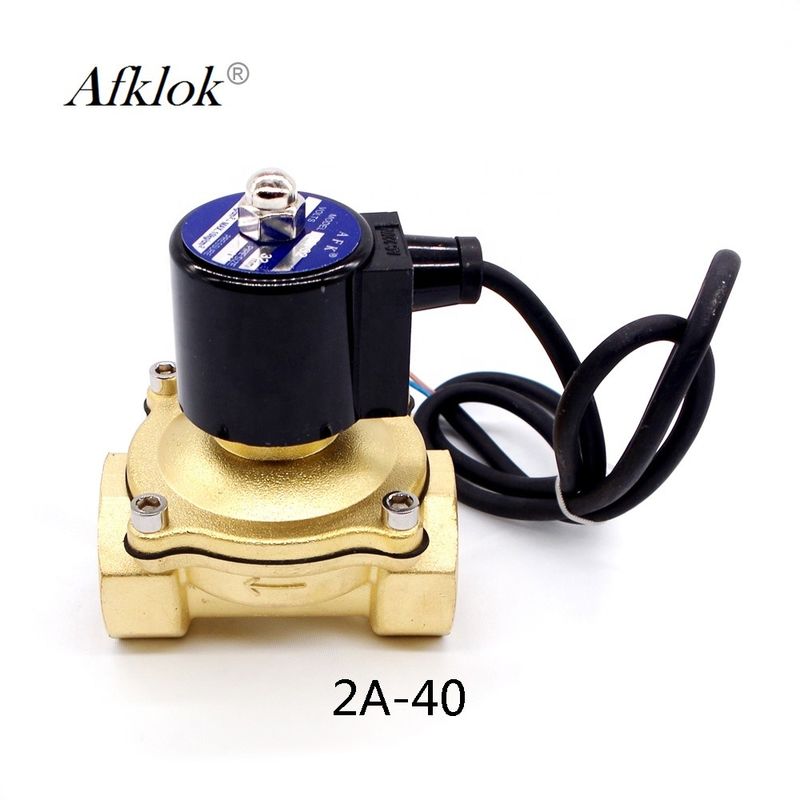

Model Number: 2A-40
Payment & Shipping Terms
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Supply Ability: 30000 Set/Sets per Week
Material: |
Brass |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Port Size: |
1-1/2" |
Structure: |
Diaphragm |
Working Pressure: |
1Mpa |
Applicable Medium: |
Water |
Material: |
Brass |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Port Size: |
1-1/2" |
Structure: |
Diaphragm |
Working Pressure: |
1Mpa |
Applicable Medium: |
Water |
|
Model
|
A
|
B
|
C
|
Size
|
Material
|
|
2A-15
|
62
|
55
|
102
|
G1/2"
|
Brass
|
|
2A-20
|
67
|
55
|
113
|
G3/4"
|
|
|
2A-25
|
86
|
73
|
117
|
G1"
|
|
|
2A-32
|
90
|
77
|
130
|
G1 1/4"
|
|
|
2A-40
|
106
|
67
|
164
|
G1 1/2"
|
|
|
2A-50
|
123
|
93
|
176
|
G2"
|
|
|
2A-15B
|
69
|
57
|
107
|
G1/2"
|
Stainless steel
|
|
2A-20B
|
73
|
57
|
115
|
G3/4"
|
|
|
2A-25B
|
98
|
57
|
125
|
G1"
|
|
|
2A-32B
|
115
|
87
|
153
|
G1 1/4"
|
|
|
2A-40B
|
121
|
94
|
162
|
G1 1/2"
|
|
|
2A-50B
|
168
|
123
|
187
|
G2"
|
|
Technical parameter
|
|||
|
Ambient temperature
|
-10℃-50℃
|
Media Temperature
|
0℃-60℃
|
|
Working pressure
|
1 Mpa
|
Media
|
water
|
|
Body material
|
Brass /stainless steel
|
||
|
Power supply
|
Below Ф32
|
AC220V 15VA DC24 15W
|
|
|
Ф401-50
|
AC220V 15VA DC24 15W
|
||
|
Allow the fluctuation
|
10%~+10%
|
||
|
Insulation grade
|
(Bclass)
|
Insulation class
|
IP68
|
|
Closing and opening speed
|
1(second)
|
Application of life
|
(100 thousand time)
|
|
Install way
|
Media flow direction and the arrow consistent. The coil vertically upward. The working media clean and no particle impurities.
|
||
