Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: 2A-20
Payment & Shipping Terms
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Supply Ability: 30000 Set/Sets per Week
Material: |
Brass |
Media: |
Water |
Port Size: |
3/4" |
Operation: |
Direct Acting |
Coil Protection Level: |
IP68 |
Body Material: |
Brass |
Material: |
Brass |
Media: |
Water |
Port Size: |
3/4" |
Operation: |
Direct Acting |
Coil Protection Level: |
IP68 |
Body Material: |
Brass |
Product Specification

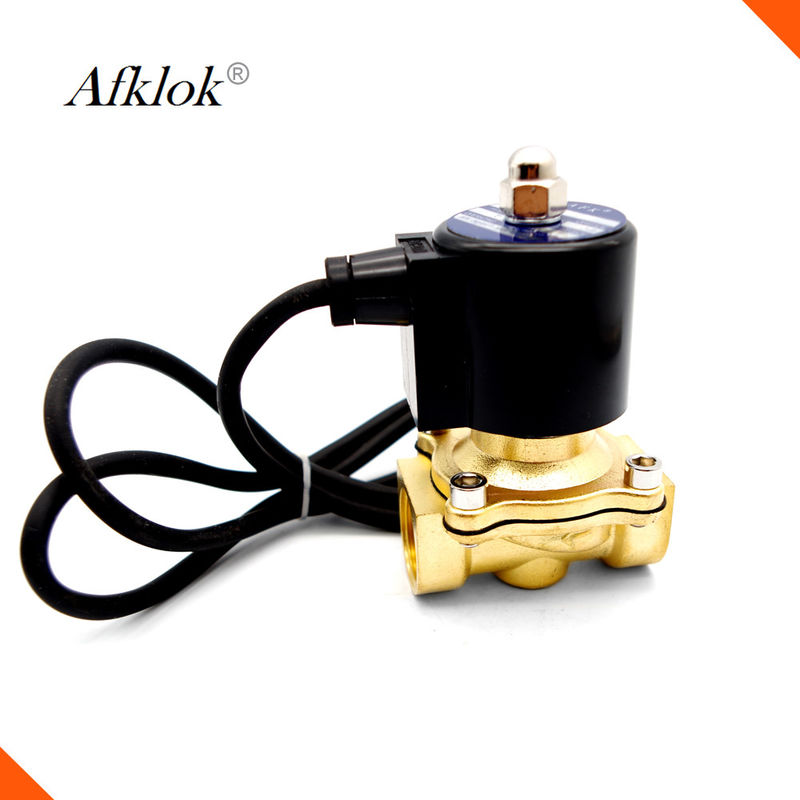

1.Model: 2A-20
2.Size: 3/4 inch
3.Media: Water
4.Connection: G thread
5.Working pressure: 1Mpa
6.Voltage: AC220V, AC110V, AC24V, DC24V, DC12V
7.Ambient temperature: -10℃~50℃
8.Media temperature: 0℃~60℃
9.Insulation class: IP65
|
Model
|
A
|
B
|
C
|
Size
|
Material
|
|
2A-15
|
62
|
55
|
102
|
G1/2"
|
Brass
|
|
2A-20
|
67
|
55
|
113
|
G3/4"
|
|
|
2A-25
|
86
|
73
|
117
|
G1"
|
|
|
2A-32
|
90
|
77
|
130
|
G1 1/4"
|
|
|
2A-40
|
106
|
67
|
164
|
G1 1/2"
|
|
|
2A-50
|
123
|
93
|
176
|
G2"
|
|
|
2A-15B
|
69
|
57
|
107
|
G1/2"
|
Stainless steel
|
|
2A-20B
|
73
|
57
|
115
|
G3/4"
|
|
|
2A-25B
|
98
|
57
|
125
|
G1"
|
|
|
2A-32B
|
115
|
87
|
153
|
G1 1/4"
|
|
|
2A-40B
|
121
|
94
|
162
|
G1 1/2"
|
|
|
2A-50B
|
168
|
123
|
187
|
G2"
|
