Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: 2A-25
Payment & Shipping Terms
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Supply Ability: 30000 Set/Sets per Week
Material: |
Brass |
Power: |
Solenoid |
Working Pressure: |
1Mpa |
Applicable Medium: |
Water |
Ambient Temperature: |
-10-50℃ |
Medium Temperature: |
0℃-60℃ |
Material: |
Brass |
Power: |
Solenoid |
Working Pressure: |
1Mpa |
Applicable Medium: |
Water |
Ambient Temperature: |
-10-50℃ |
Medium Temperature: |
0℃-60℃ |
Product Specification

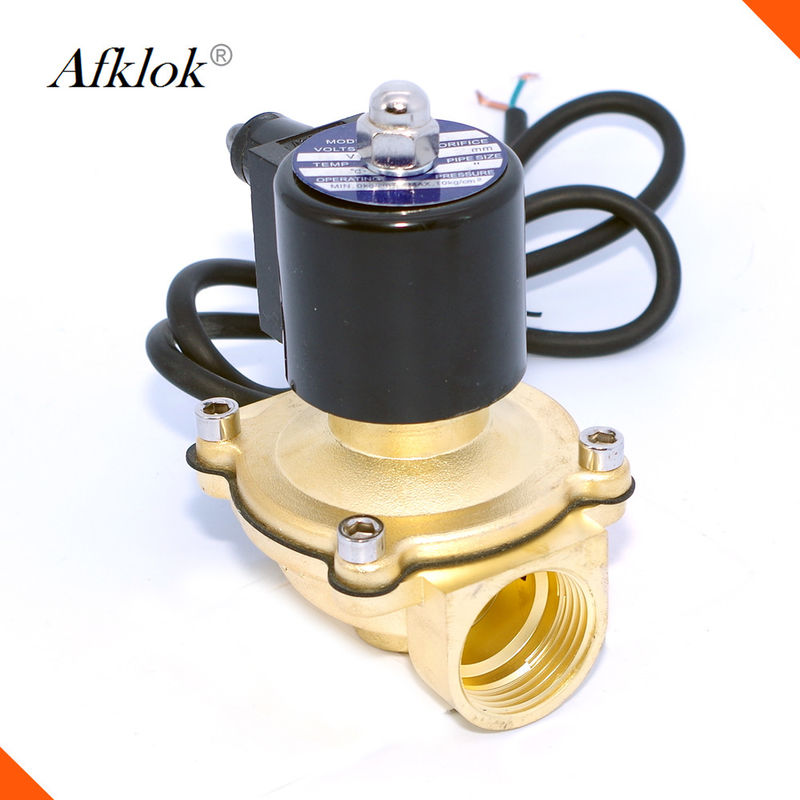

1.Model: 2A-25
2.Size: 1 inch
3.Media: Water
4.Connection: G thread
5.Working pressure: 1Mpa
6.Voltage: AC220V, AC110V, AC24V, DC24V, DC12V
7.Ambient temperature: -10℃~50℃
8.Media temperature: 0℃~60℃
9.Insulation class: IP65
2A series solenoid valve is the automatic control system of common switch element, as the core of the musical fountain control equipment. Especially suitable for running spring, spring of water control.
2A series direct acting solenoid valve with a media pressure working. It adopts diaphragm structure with the opening and closing speed.stable performance, convenient application, high reliability, long service life. This valve anti-pollution ability, can be used in river and various artificial water area for a long period. It excellent performance in the domestic leading level.
|
Technical parameter
|
|||
|
Ambient temperature
|
-10℃-50℃
|
Media Temperature
|
0℃-60℃
|
|
Working pressure
|
1 Mpa
|
Media
|
water
|
|
Body material
|
Brass /stainless steel
|
||
|
Power supply
|
Below Ф32
|
AC220V 15VA DC24 15W
|
|
|
Ф401-50
|
AC220V 15VA DC24 15W
|
||
|
Allow the fluctuation
|
10%~+10%
|
||
|
Insulation grade
|
(Bclass)
|
Insulation class
|
IP68
|
|
Closing and opening speed
|
1(second)
|
Application of life
|
(100 thousand time)
|
|
Install way
|
Media flow direction and the arrow consistent. The coil vertically upward. The working media clean and no particle impurities.
|
||
|
Model
|
A
|
B
|
C
|
Size
|
Material
|
|
2A-15
|
62
|
55
|
102
|
G1/2"
|
Brass
|
|
2A-20
|
67
|
55
|
113
|
G3/4"
|
|
|
2A-25
|
86
|
73
|
117
|
G1"
|
|
|
2A-32
|
90
|
77
|
130
|
G1 1/4"
|
|
|
2A-40
|
106
|
67
|
164
|
G1 1/2"
|
|
|
2A-50
|
123
|
93
|
176
|
G2"
|
|
|
2A-15B
|
69
|
57
|
107
|
G1/2"
|
Stainless steel
|
|
2A-20B
|
73
|
57
|
115
|
G3/4"
|
|
|
2A-25B
|
98
|
57
|
125
|
G1"
|
|
|
2A-32B
|
115
|
87
|
153
|
G1 1/4"
|
|
|
2A-40B
|
121
|
94
|
162
|
G1 1/2"
|
|
|
2A-50B
|
168
|
123
|
187
|
G2"
|
|
Packaging
|
|
|
Size
|
17cm*17cm*17cm
|
|
Weight
|
Different size has different weight
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). Or according to customers special request.
|
