Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Model Number: 2A
Payment & Shipping Terms
Minimum Order Quantity: 1 Piece/Pieces
Price: Negotiable
Packaging Details: white box+ export carton
Supply Ability: 3000 Piece/Pieces per Week
Application: |
General |
Material: |
Stainless Steel |
Temperature Of Media: |
Normal Temperature |
Pressure: |
High Pressure |
Power: |
Solenoid |
Media: |
Water |
Port Size: |
1/2''-2'' |
Structure: |
Control |
Type: |
Normal Colse/normal Open |
Connection: |
Female/male Thread ,flange |
Medium: |
Air,water,oil,natural Liquid |
Operation Temperature: |
-5~80℃ |
Working Pressure: |
0-10bar |
Body Material: |
Stainless Steel 316, Brass |
Principium: |
Direct-acting Type |
Seal Material: |
NBR Viton |
Warranty: |
1 Year |
Size: |
Custom Made |
Standard Or Nonstandard: |
Standard |
Port: |
Yantian |
Application: |
General |
Material: |
Stainless Steel |
Temperature Of Media: |
Normal Temperature |
Pressure: |
High Pressure |
Power: |
Solenoid |
Media: |
Water |
Port Size: |
1/2''-2'' |
Structure: |
Control |
Type: |
Normal Colse/normal Open |
Connection: |
Female/male Thread ,flange |
Medium: |
Air,water,oil,natural Liquid |
Operation Temperature: |
-5~80℃ |
Working Pressure: |
0-10bar |
Body Material: |
Stainless Steel 316, Brass |
Principium: |
Direct-acting Type |
Seal Material: |
NBR Viton |
Warranty: |
1 Year |
Size: |
Custom Made |
Standard Or Nonstandard: |
Standard |
Port: |
Yantian |
|
Ambient Temperature
|
-10℃-50℃
|
|
Body Material
|
brass/stainless steel
|
|
Media Temperature
|
0-60℃
|
|
Working Pressure
|
1Mpa
|
|
Media
|
Water
|
|
POwer Supply
|
AC220V 15VA, DC24V 15W,AC220V 25VA, DC24V 25W
|
|
Allow the Fluctuation
|
-10%~+10%
|
|
Insulation Grade
|
B class
|
|
Insulation class
|
IP68
|
|
Closing and opening speed
|
1 second
|
|
Applicable of life
|
100 thousand times
|
|
Install Way
|
media flow direction and the on the arrow consistent. The coil vertically upward. The working media clean and no particle impurities
|
Size: 1/2", 3/4", 1"
Coil length: 1m
Body material: brass
Size: 1-1/4", 1-1/2", 2"
Coil Length: 1m
Body material: brass

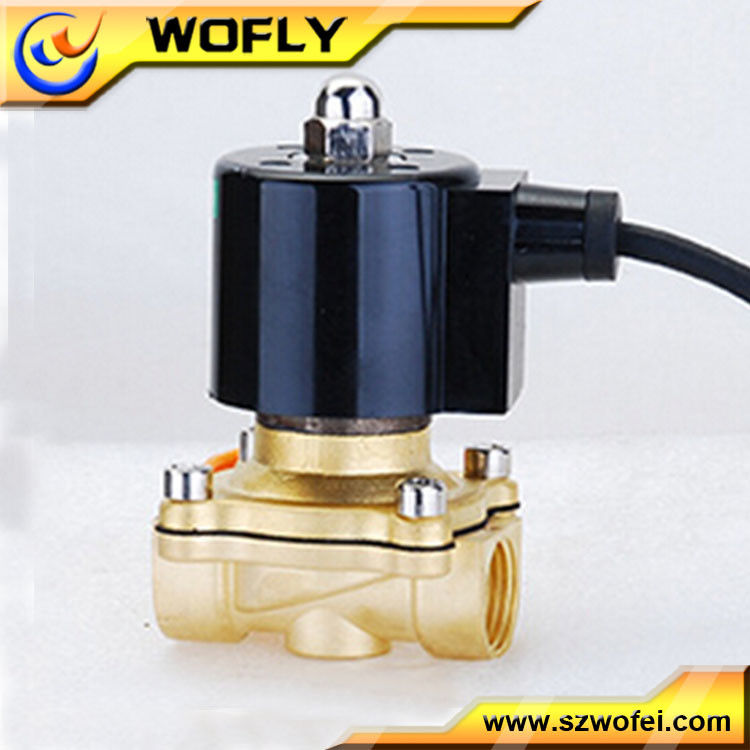

1. 2A series solenoid valve is the automatic control system of common switch element.
2. As the core of music fountain control equipment, especially suitable for running spring.
3. 2A series direct-acting solenoid valve with a media pressure working, adoting diaphragm structure with the opening and closing speed.
4. Stable performance, convenient application, high reliability, long service.
5.Can be used in river and various artificial water area for a long period, excellent performance in the domestic leading level.
Our Workshop
Our Warehouse
Our Team
Pls confirm following to us once you send the inquiry:
1. Media? water?
2. Working pressure?
3. End connection?BSP or NPT thread?
4.Type:normally closed or normally opened?
5.Voltage? 24VAC, 24VDC, 110VAC, 12VDC, or 220VAC?
6.Material? brass or ssss304?
7.Quantity
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
