2 way Normal Closed Irrigation 24vdc ac 100mm Water Flange Solenoid Valve

2 way Normal Closed  Irrigation 24vdc ac 100mm Water Flange Solenoid Valve
2 way Normal Closed  Irrigation 24vdc ac 100mm Water Flange Solenoid Valve 2 way Normal Closed  Irrigation 24vdc ac 100mm Water Flange Solenoid Valve

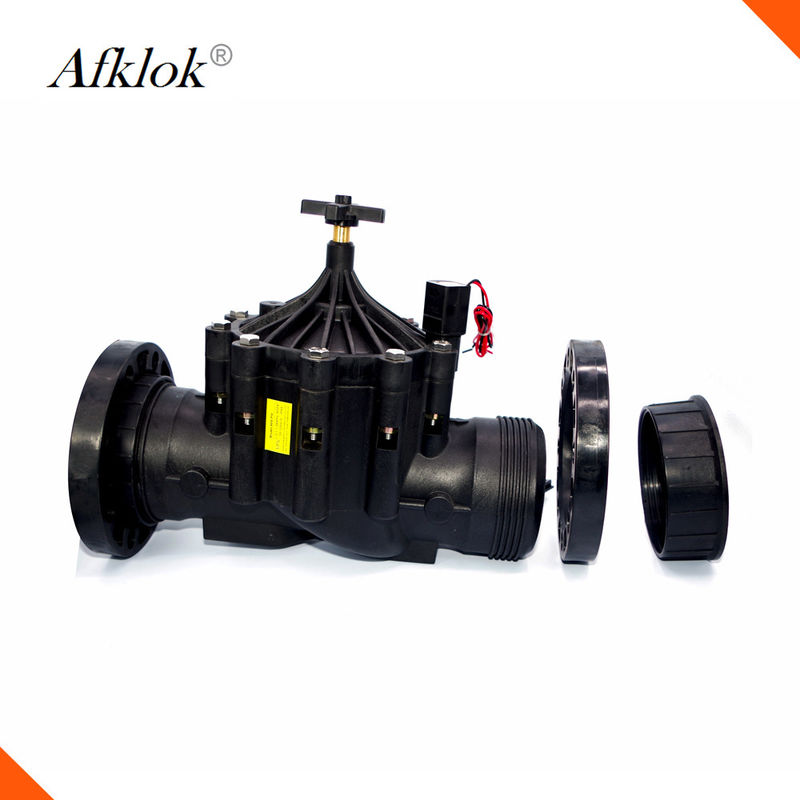

Large Image :  2 way Normal Closed Irrigation 24vdc ac 100mm Water Flange Solenoid Valve

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Model Number: 400P
Payment & Shipping Terms:
Minimum Order Quantity: 1-9 Sets
Price: Negotiable

2 way Normal Closed Irrigation 24vdc ac 100mm Water Flange Solenoid Valve

Description
Application: Agriculture Irrigation Material: Plastic
Temperature Of Media: Below 43°C Pressure: Medium Pressure
Power: Solenoid Media: Water
High Light:

irrigation system valve

,

irrigation valve manifold

2 way Normal Closed Irrigation 24vdc ac 100mm Water Flange Solenoid Valve



Specification



 No.  ITEM TECHNICAL PARAMETERS
1   Material   nylon plastic body, NBR seal
2   Fluid    water
3   Fluid temperature    ≤43°C
4   Environment temperature   ≤52°C
5   Service voltage   6-20VDC(can be order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
6   Pulse width   20-500mSec (only for latching type)
7   Coil resistance    6 Ω
8   Capacitance   4700uF
9   Coil inductance   12mH
10   Connection   G(BSP) female thread is regular, special order for NPT(3/4" and 1")
11   Size



075D: 3/4", 20mm  (BSP or NPT female)

100D:1", 25mm      (BSP or NPT female )

100P:1", 25mm      (BSP female)

150P:1-1/2"(1.5"), 40mm (BSP female)

200P:2", 50mm      (BSP female)

300P:3", 80mm      (BSP female, male, flange)

400P:4", 100mm    (BSP female, male, flange)



12   Working pressure



3/4" and 1": 1-10bar

1.5"and 2":  1-10.4bar

3"and 4":     0.7-14bar



13      Flow rate



3/4":  5 /h

1":     9 m³/h

1.5"-2": 0.45-34.05 m³/h

3"-4":    1.1-70 m³/h



14   Operation mode valve element lock position,valve open, release position, valve close.
