Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Model Number: 200P
Payment & Shipping Terms
Minimum Order Quantity: 1 - 9 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Set/Sets per Week
Application: |
General |
Temperature Of Media: |
Medium Temperature |
Port Size: |
2" |
Structure: |
Pilot |
Orifice Size: |
50mm |
Applicable Medium: |
Water |
Application: |
General |
Temperature Of Media: |
Medium Temperature |
Port Size: |
2" |
Structure: |
Pilot |
Orifice Size: |
50mm |
Applicable Medium: |
Water |
Model: 200P
Pressure: 0.1~1.0Mpa
Connect size: 2"
Thread: G
Orifice size: 50mm
Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA
Self-holding type coil: DC6-20V, Pulse Width (20-500mSec)
Working model(+red&-black valve open)
(-red&-black valve closed)
|
|
Power
|
Current Amp
|
Coil Impedance
|
|
|
|
|
Open current
|
Hold current
|
|
|
AC24V
|
6.72W
|
0.41A
|
0.28A
|
30Ω
|
|
AC110V
|
3W
|
0.072A
|
0.049A
|
840Ω
|
|
AC220V
|
3W
|
0.037A
|
0.025A
|
2.73Ω
|
|
|
Power
|
Current Amp
|
Coil Impedance
|
|
|
|
|
Open current
|
Hold current
|
|
|
DC9V
|
3.6W
|
560mA
|
400mA
|
24Ω
|
|
DC12V
|
3.6W
|
420mA
|
300mA
|
41Ω
|
|
DC24V
|
3.6W
|
252mA
|
180mA
|
130Ω
|
Required capacitance: 4700u
Coil Resistance: 6Ω
Coil Inductance: 12mH
Pulse Width: 20-500m Sec
Working Model: + Red & Black valve core lock position (valve opening)
+ Red & Black release valve core lock position (valve closing)

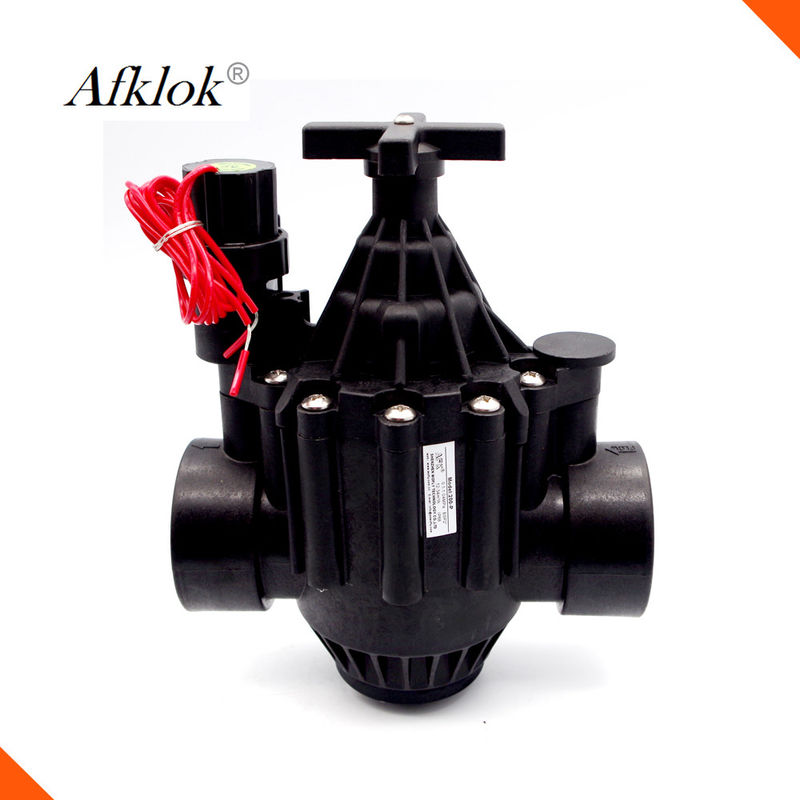

Product Description
1.The pilot type diaphragm structure , nylon body material.
2. Double filter to prevent clogging eletromagnetic core.
3.Fully enclosed eletromagnrtic coil, waterproof.
4.A slow off function to prevent water harmmer, damage the system.
|
DESIGN FEATURES
|
|
|
1. Irrigation solenoid valve
|
|
|
2. Fit for stadium, farm, industrial dust and water treatment equipment.
|
|
|
3. Normally closed.
|
|
|
4.Pipe size 2".
|
|
|
5. Service voltage : AC220, AC110V, AC24V
|
|
|
6.Thread connnection :G
|
|
|
7.Material-body valve -nylon
|
