Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Model Number: 400P
Payment & Shipping Terms
Minimum Order Quantity: >=1 Sets
Price: Negotiable
Packaging Details: White box + Export packing
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30000 Set/Sets per Week
Application: |
General |
Material: |
Nylon |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Port Size: |
4" |
Orifice Size: |
100mm |
Application: |
General |
Material: |
Nylon |
Pressure: |
Low Pressure |
Power: |
Solenoid |
Port Size: |
4" |
Orifice Size: |
100mm |
Medium:Water
Temperature: Suitable water≤42℃, surroundings≤82℃
Application range: It is currently one of the most widely used electromagnetic valve in garden irrigation, large-scale garden lawn, stadium, farm, industrial dust and water treatment equipment.

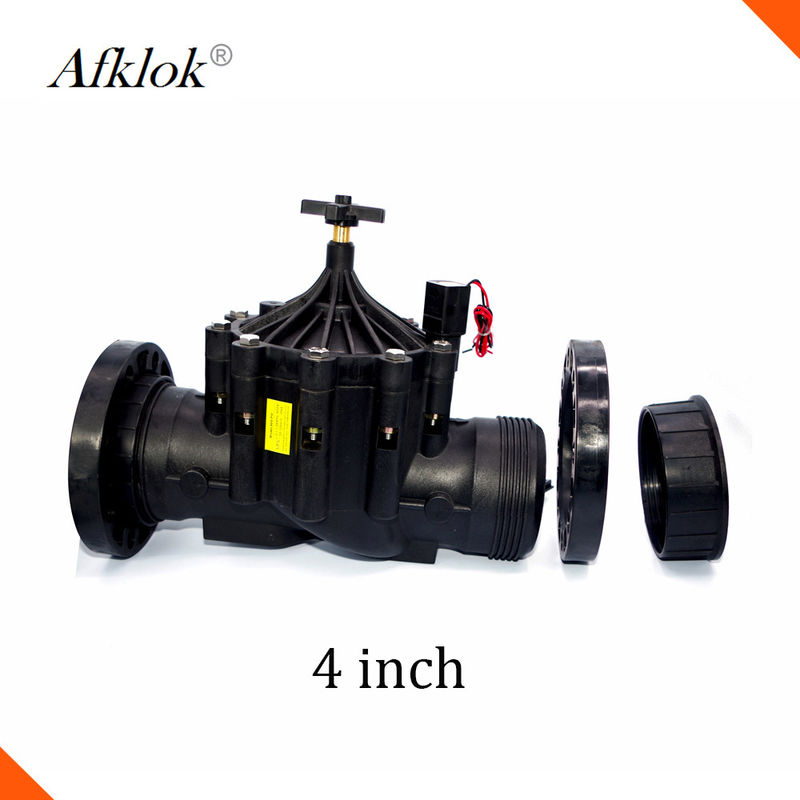

Model: 400P
Pressure: 0.1-1.0Mpa
Flow rate: 1.14-70㎥/h
connect size: 4"
Thread: G, Flange
Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA
Orifice size: 80mm
Self-holding type coil: DC6-20V, Pulse Width (20-500mSec)
working model(+red&-black valve open)
(-red&-black valve closed)
Material-body valve -nylon
enclosed-NBR
Moving iron core-430F
Static iron core-430F
Sping-SUS304
Sub-magnetic ring-Copper
Water treatment solenoid, normally closed, coil AC24V, Self-holding type coil DC6-20V (Please specify when ordering)
4.A slow off function to prevent water harmmer, damage the system.
|
DESIGN FEATURES
|
|
|
1. Irrigation solenoid valve
|
|
|
2. Fit for stadium, farm, industrial dust and water treatment equipment.
|
|
|
3. Normally closed.
|
|
|
4.Pipe size 4".
|
|
|
5. Service voltage : DC latching/AC110V/AC220V
/AC24V/DC12V/DC24V/DC9V
|
|
|
6.Thread connnector : G . Flange
|
|
|
7.Material-body valve -nylon
|
|
Packaging
|
|
|
Size
|
30cm*25cm*16cm
|
|
Weight
|
Different size has different weight
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). Or according to customers special request.
|
