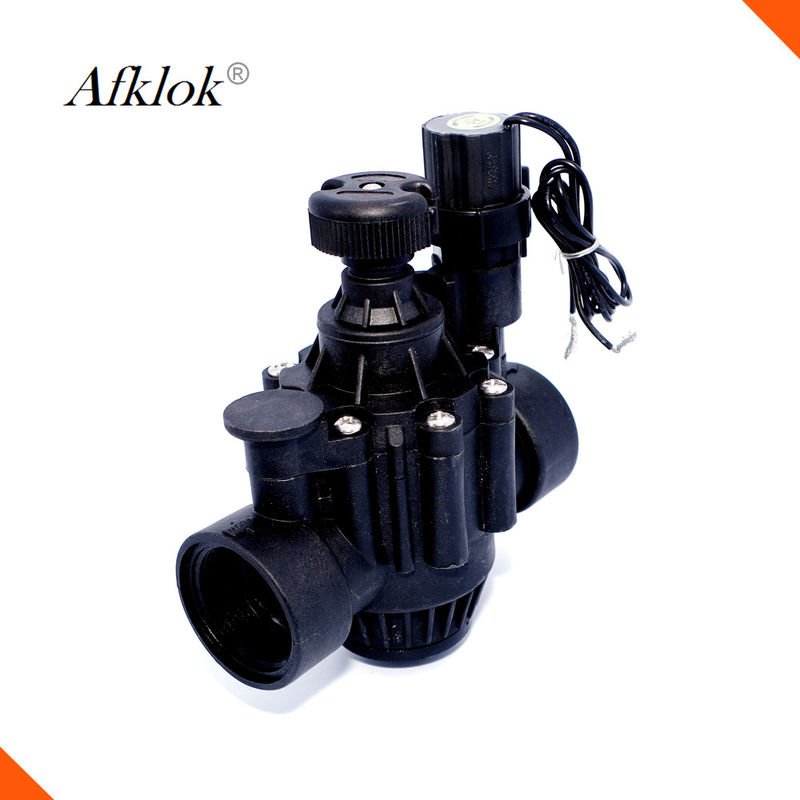

Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector

Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector
Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector

Large Image :  Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: None
Model Number: 150P
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: White box+Export packing
Supply Ability: 30000 Set/Sets per Week

Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector

Description
Temperature Of Media: Medium Temperature Pressure: Low Pressure
Media: Water Port Size: 1"
Structure: Shutoff Pressure Environment: 0.1-1.04Mpa
Standard: AC220V, AC110V, AC380V, DC12V No Heating, DC24V No Heating End Connection: Thread, G, BSP Thread
High Light:

irrigation system valve

,

lawn irrigation valves

Irrigation sprinkler 24v valve waterproof electromagnet



Features



• Globe and angle configuration for flexibility in design and installation.

• Rugged PVC construction

• Filtered pilot flow to resist debris and clogging of solenoid ports.

• Slow closing to prevent water hammer and subsequent system damage.

• Manual internal bleed operates the valve without allowing water into the valve box.

• One-piece solenoid design with captured plunger and spring for easy servicing.

   Prevents loss of parts during field service.

• Non-rising flow control handle adjusts water flows as needed.

• Normally closed, forward flow design.



Specification



Model 150P
Size 1/4", 1", 1-1/2",2", 3", 4"
end connection thread G, BSP
working pressure 0.1-1.04Mpa
flow range 1.14-70m³/h
water temperature ≤43degree
environment temperature ≤52degree
Material plastic

Application

 Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector 0

Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector 1

Installation

 Shutoff Irrigation Solenoid Valve Waterproof Electromagnet With BSP Thread Connector 2
