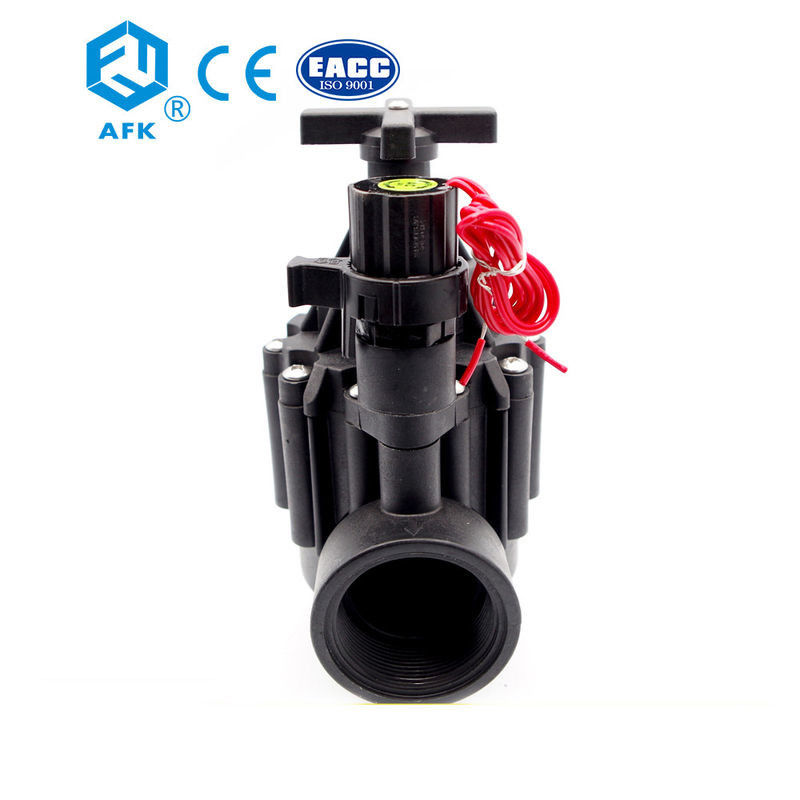

AC 220V 2 Inch Water Irrigation Solenoid Valve Pilot Structure Medium Temperature

  • AC 220V 2 Inch Water Irrigation Solenoid Valve Pilot Structure Medium Temperature
  • AC 220V 2 Inch Water Irrigation Solenoid Valve Pilot Structure Medium Temperature
  • AC 220V 2 Inch Water Irrigation Solenoid Valve Pilot Structure Medium Temperature
Place of Origin Guangdong, China (Mainland)
Brand Name AFK
Model Number 200P
Minimum Order Quantity 1 - 9 Sets
Price Negotiable
Packaging Details White box + Export packing
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 30000 Set/Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application General Temperature Of Media Medium Temperature
Port Size 2" Structure Pilot
Orifice Size 50mm Applicable Medium Water
Material Nylon
High Light

irrigation valve manifold

,

lawn irrigation valves
Leave a Message
Product Description
AC 220 V 2 Inch Water Solenoid Valve for Irrigation


it's currently one of the most widely used solenoid valve in garden irrigation
Applied in large area of lawn, Gym, agriculture, industrial dedusting and water treatment equipment

DESIGN FEATURES
1. Irrigation solenoid valve
2. Fit for stadium, farm, industrial dust and water treatment equipment.
3. Normally closed.
4.Pipe size 2".
5. Service voltage : AC220, AC110V, AC24V
6.Thread connnection :G
7.Material-body valve -nylon

AC 220V 2 Inch Water Irrigation Solenoid Valve Pilot Structure Medium Temperature 0

Detailed Images


Power
Current Amp
Coil Impedance


Open current
Hold current

AC24V
6.72W
0.41A
0.28A
30Ω
AC110V
3W
0.072A
0.049A
840Ω
AC220V
3W
0.037A
0.025A
2.73Ω






Power
Current Amp
Coil Impedance


Open current
Hold current

DC9V
3.6W
560mA
400mA
24Ω
DC12V
3.6W
420mA
300mA
41Ω
DC24V
3.6W
252mA
180mA
130Ω





200P solenoid valve

1. Pilot operating construction, valve body in nylon material
2. double filter prevent Blocking electromagnetic iron core
3.Totally Closed electromagnetic coil, waterproof
4.having slow closed function, preveting water hammer, damaging system





*Model: 200P

*Pipe Size: 2 inch

*Orifice Size: 50mm

*Thread: BSP

*Medium: Water

*Operating: Pilot

*Connection: Flange

*Function type: Normally Closed

*Working Pressure: 0.1-1.0Mpa

*Body material: Nylon

*Voltage: DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V,DC9V





*Material-body valve -nylon enclosed-NBR
*Moving iron core-430F
*Static iron core-430F
*Sping-SUS304 Sub-magnetic ring-Copper

*Water treatment solenoid, normally closed, coil AC24V, Self-holding type coil DC6-20V (Please specify when ordering)



AC 220V 2 Inch Water Irrigation Solenoid Valve Pilot Structure Medium Temperature 1
