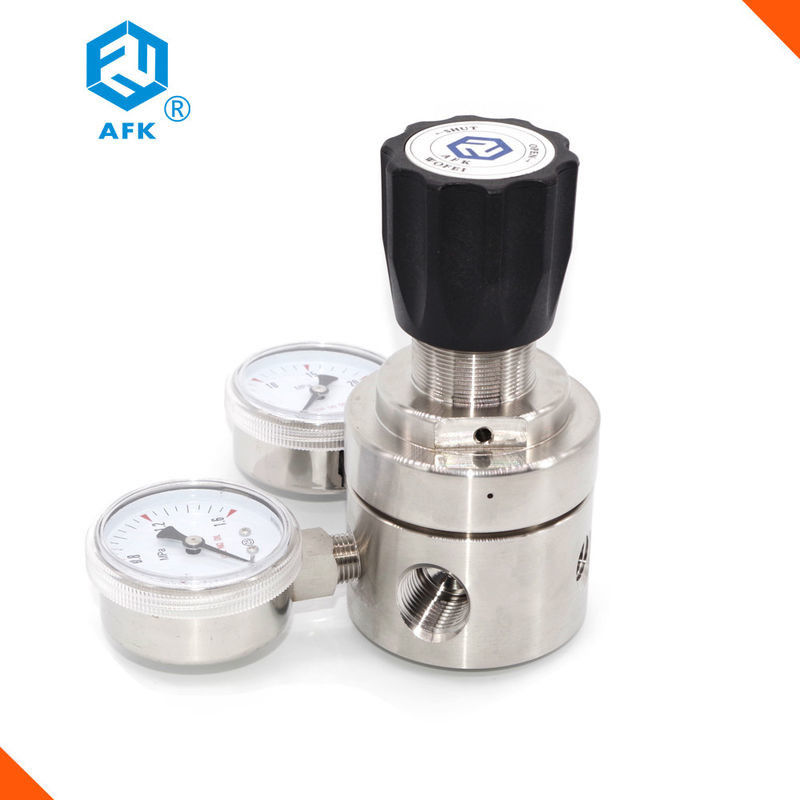

Panel Mounted High Pressure Nitrogen Gas Regulator 500/3000 Psi Inlet Pressure

Place of Origin Guangdong, China
Brand Name AFK
Certification CE RoSH
Model Number R12
Minimum Order Quantity 1
Price Negotiable
Packaging Details Export packing
Delivery Time 10000 Set/Sets per Week
Payment Terms L/C, D/A, D/P, T/T, Western Union

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SS316 Brand Name R12
Inlet Pressure 500,3000 Psi Outlet Pressure E: 0~25, 0~50, 0~100, 0~125, 0~250 Psig
Proof Pressure 1.5 Times Of Maximum Rated Presure Structure Diaphragm
High Light

gas cylinder regulator

,

stainless steel pressure relief valve

Leave a Message
Product Description

Stailess Steel Panel Mounted High Pressure Nitrogen Gas Regulator



Specification


R12 series stainless steel pressure reducers, single-stage diaphragm construction, stainless steel diaphragm pressure transmission,



stable output pressure, applied to medium flow gas system.



Design Features

  • Single-stage pressure-reducing structure
  • Metal-to-metal diaphragm seal
  • Body thread: in and out of air interface ,1/2'' NPT(F)
  • pressure gauge, safety valve connection: 1/4'' NPT(F)
  • Filter net installed internally
  • Panel and wall mounting available





Typical Applications

  • Laboratory
  • Gas Purge System
  • Corrosive Gas and Special gas
  • Gas Bus-bar
  • Testing Equipment





Product Show

Panel Mounted High Pressure Nitrogen Gas Regulator 500/3000 Psi Inlet Pressure 0

Panel Mounted High Pressure Nitrogen Gas Regulator 500/3000 Psi Inlet Pressure 1

Panel Mounted High Pressure Nitrogen Gas Regulator 500/3000 Psi Inlet Pressure 2



Detail Image

Panel Mounted High Pressure Nitrogen Gas Regulator 500/3000 Psi Inlet Pressure 3

Panel Mounted High Pressure Nitrogen Gas Regulator 500/3000 Psi Inlet Pressure 4

Ordering information

R12 L B D F G 02 00 P
Item

Body

Materia

Body

Hole

Inlet

pressure

Outlet

pressure

Pressure

gauge

Inlet

size

Outlet

size

mark
R12 L:316 A D:3000psi G:0~250psig G:MPa gauge 02:3/8”NPT(F) 02:3/8”NPT(F) P:Panel mointing
  B:Brass B F:500psi H::0~125psig 03:3/8”NPT(M) 03:3/8”NPT(M) R:With relief valve
    D   I::0~100psig P:Psig/bar gauge 04:1/2”NPT(F) 04:1/2”NPT(F)
    G   K::0~50psig 05:1/2”NPT(M) 05:1/2”NPT(M)
    J   L::0~25psig W:No gauge 12:3/8”OD 12:3/8”OD
    M       13:1/2”OD 13:1/2”OD
            Other type is available Other type is available
