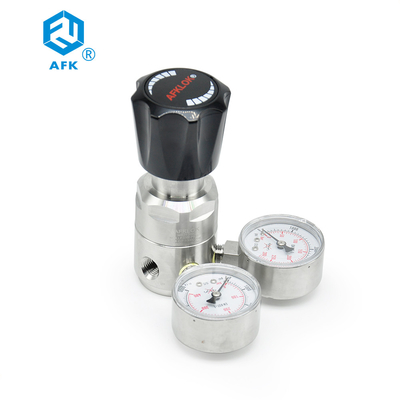

Vacuum Measuring Gauge 6000psi Gas Cylinder Regulator Stainless Steel 316

Product Details

Place of Origin: Chain

Brand Name: AFKLOK

Certification: CE

Model Number: R41

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: General packaging

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000

Get Best Price
Contact Now
Specifications
Highlight:

6000psi Gas Cylinder Regulator

,

6000psi Stainless Steel Regulator

,

6000psi Stainless Steel Air Regulator

Material:
Stainless Steel 316
Max Inlet Pressure:
3000,6000PSI
Outlet Pressure:
250,500,1500,3000PSI
CV:
0.06
Body Thread:
1/4"NPT(F)
Product Name:
R41 Piston Type Pressure Reducing Regulator
Weight:
1.5kg
Gas Type:
Co2 Oxygen Argon Gas
Material:
Stainless Steel 316
Max Inlet Pressure:
3000,6000PSI
Outlet Pressure:
250,500,1500,3000PSI
CV:
0.06
Body Thread:
1/4"NPT(F)
Product Name:
R41 Piston Type Pressure Reducing Regulator
Weight:
1.5kg
Gas Type:
Co2 Oxygen Argon Gas
Description
Vacuum Measuring Gauge 6000psi Gas Cylinder Regulator Stainless Steel 316

Vacuum Measuring Gauge 6000psi Gas Cylinder Regulator Stainless Steel 316



Product Description of Pressure Regulator co2

R41 Serie stainless steel pressure reducers, piston pressure reducing construction, stable output pressure, mainly applied in high input pressure high pure gas, standard gas, corrosive gas and so on.



The General Characteristics of the Range of 6000psi-4000psi Pressure Reducer

Material The regulator body should be made of stainless steel to withstand high pressures and ensure durability.
Pressure Range The regulator should be able to handle a high pressure of up to 6000psi and a low pressure of up to 4000psi.
Gauge Type The regulator should have two gauges, one for high pressure and one for low pressure. The high pressure gauge should have a range of 0-6000psi and the low pressure gauge should have a range of 0-4000psi.
Thread Type The inlet and outlet ports should be designed for 1/4 female thread to allow for easy installation and compatibility with other gas system components.
Accuracy The regulator should be able to maintain a consistent and accurate gas pressure output even when there are fluctuations in the input pressure.
Flow Rate

The regulator should be able to handle the required flow rate of gas for the application it is being used for.

Adjustment Range The regulator should have an adjustable pressure range that allows for fine-tuning of the gas pressure output.
Safety The regulator should have safety features such as a relief valve to prevent over-pressurization and a built-in shut-off valve to stop the gas flow in case of emergency.
Size and Weight The regulator should be compact and lightweight to allow for easy installation and portability.



Technical Parameter
1 Maximum Inlet Pressure 3000,6000psig
2 Outlet Pressure Ranges 0~250, 0~500, 0~1500,0~3000psig
3 Safety test pressure 1.5 times maximum inlet pressure
4 Operating Temperature -40°F to +165°F / -40°c to 74°c
5 Leak rate foam test
6 Cv value 0.06



Vacuum Measuring Gauge 6000psi Gas Cylinder Regulator Stainless Steel 316 0

Specification



DESIGN FEATURES OF regulator gas high pressure
1 Single-stage reduce structure
2 Use hard-seal between body and Diaphragm
3 Body Thread:1/4" NPT (F)
4 Filter mesh inside
5 Easy to sweep inside body
6 Panel mountable or wall mounted

Vacuum Measuring Gauge 6000psi Gas Cylinder Regulator Stainless Steel 316 1

Material of stainless steel co2 regulator high pressure
1 Body 316L.Brass
2 Bonnet 316L. Brass
3 Diafragm 316L
4 Strainer 316L(10 μm)
5 Seat PCTFE
6 Spring 316L
7 Plunger valve core 316L
8 o-ring Fluororubber



Vacuum Measuring Gauge 6000psi Gas Cylinder Regulator Stainless Steel 316 2

Product Selection of argon /co2 gas pressure regulator
R41 L B B D G 00 00 P
Item Body Materia Body Hole Inlet Pressure Outlet Pressure Pressure Gauge Inlet Size Outlet Size Options
R41 L:316 A B:6000psig D:0~3000psig G:MPa gauge 00:1/4″NPT(F) 00:1/4″NPT(F) P:Panel mounting
  B:Brass B D:3000psig E:0~1500psig P:Psig/bar gauge 00:1/4″NPT(M) 00:1/4″NPT(M)
    D   F:0~500psig W:No gauge 10:1/8″OD 10:1/8″OD
    G   G:0~250psig   11:1/4″OD 11:1/4″OD
    J       12:3/8″OD 12:3/8″OD
    M       15:6mm”OD 15:6mm”OD
            16:8mm”OD 16:8mm”OD
            Other type is available Other type is available



Selection of gas

The type of gas that can be regulated using a stainless steel pressure regulator with a high pressure gauge for 6000psi, low pressure gauge for 4000psi, and inlet and outlet for 1/4 female thread depends on the specific model and design of the regulator. However, in general, stainless steel pressure regulators are designed to be compatible with a wide range of gases, including but not limited to:(Compressed air,Oxygen,Nitrogen,Argon,Helium,Hydrogen,Carbon dioxide,Natural gas,Propane)
Before using a pressure regulator with a specific gas, and customer service to determine the gas used's specifications and ensure that the regulator is rated for the specific gas being used. Different gases may have different pressure requirements and compatibility requirements, and using a regulator that is not designed for the specific gas can result in malfunction or safety hazards.



Completion Project

Vacuum Measuring Gauge 6000psi Gas Cylinder Regulator Stainless Steel 316 3

Applicable Scenes

Vacuum Measuring Gauge 6000psi Gas Cylinder Regulator Stainless Steel 316 4
