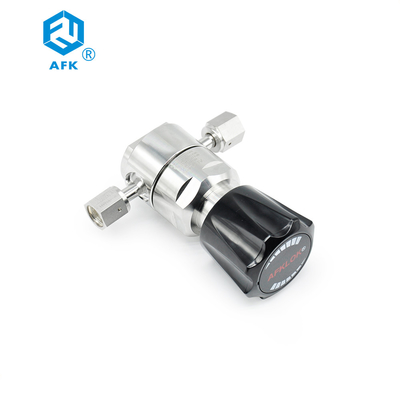

High Purity Stainless Steel Pressure Regulator Vacuum Measuring Gauge

Place of Origin Chain
Brand Name AFKLOK
Certification CE
Model Number R11
Minimum Order Quantity 1
Price Negotiable
Packaging Details General packaging
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 5000

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Weight 1KG Material Stainless Steel,316
Warranty 1 Year Application Industry Equipment
Color Silver Inlet Pressure 3500psi
Outlet Pressure 100psi
High Light

Hastelloy Stainless Steel Pressure Regulator

,

SS316 Vacuum Measuring Gauge

,

SS316 Pressure Measuring Instrument

Leave a Message
Product Description

High Purity Stainless Steel Pressure Regulator Vacuum Measuring Gauge



VCR stainless steel pressure regulators offer a range of characteristics that make them an ideal solution for regulating pressure in high vacuum systems. They are accurate, durable, and compact, and can handle high flow rates.



Features of High Purity Gas Pressure Regulator

  • Single-stage diaphragm structure

  • Corrugated diaphragm design for excellent

  • sensitivity and cycle life

  • Suitable for corrosive and toxic gases

  • 20μm fifilter element installed at inlet

  • Oxygen environment options are availabl

High Purity Stainless Steel Pressure Regulator Vacuum Measuring Gauge 0

Technical Data of VCR Stainless Steel Pressure Regulators

Max Inlet Pressure: 600psig, 3500psig

Outlet Pressure Range: 0~30, 0~60, 0~100, 0~150, 0~250, 0~500

Component Material:

  • Seat:PCTFE
  • Diaphragm:Hastelloy
  • Filter mesh:316L

Working Temperature: -40℃~+74℃(-40℉~+165℉)

Leak Rate (Helium):

  • Internal: ≤1×10-7mbar l/s
  • External: ≤1×10-9mbar l/s

Flow Coeffificient (Cv):

  • 3500psig Inltet: Cv=0.09
  • 600psig Inltet: Cv=0.20

Body Thread:

  • Inlet port: 1/4NPT (EP 1 / 4 VCR optional)
  • Outlet port: 1/4NPT (EP 1 / 4 VCR optional)
  • Pressure gauge port: 1/4NPT (EP 1 / 4 VCR optional)

High Purity Stainless Steel Pressure Regulator Vacuum Measuring Gauge 1

High Purity Stainless Steel Pressure Regulator Vacuum Measuring Gauge 2

Ordering Information of VCR stainless steel pressure regulators

WR11
Body Material Inlet Pressure P1 Outlet Pressure Range P2 Porting Connection 1/2/3/4 Optional Feature Product Grade
316L SS 3500 psig 0-30 psig 2 ports 1/4" Female NPT None Standard(BA)
Hastelloy HCC-276 600 psig 0-60 psig 3 ports 1/4" Male NPT With a panel nut Oxygen cea
ning
    0~100 psig 4 ports 1/4" OD
    0~150 psig Other ports are
available upon
request
3/8"OD
    0-250 psig   1/4" OD diaphragm valve
    0-500 psig   3/8" OD diaphragm valve
        1 /4 "female VCR
        1 /4 "Male VCR
        With gauge
(psi/MPa)

        CGA No.
        DIN No.
        Refer to the manual for cylinderconnections.Other connectionsare available upon request.



Completion Project

High Purity Stainless Steel Pressure Regulator Vacuum Measuring Gauge 3

Applicable Scenes

High Purity Stainless Steel Pressure Regulator Vacuum Measuring Gauge 4

FAQ



Q1: Is the flow rate of the pressure reducer adjustable?

A1: Yes, we can adjust it according to your needs and choose the model.



Q2: What products can you provide?

A2: We can supply pressure reducers (for inert, toxic and corrosive gases), diaphragm valves (Class BA and EP), couplings (VCR and conventional), needle and ball valves and check valves (ferrule, internal, external and G-tooth available), cylinder couplings, etc.



Q3: Can you provide samples to test? For free?

A3: We can provide free samples, and due to their high value, you should bear the cost.



Q4: Can you make the products based on our requests, such as connection, thread, pressure and so on?

A4: Yes, We have experienced techincal team and can design and produce the products according to your requirements. Take a pressure regualtor for example, we can set the range of pressure gauge according actual working pressure, if the regulator is connected to a gas cylinder, we can add an adaptor such as CGA320 or CGA580 to connect the regulator with the cylinder valve.



Q5: What payment methods for chose?

A5: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 30%T/T, Western Union, L/C as deposit, and 70% balance paid before shipment.



Q6: How about the lead time?

A6: Usually, delivery time is 5-7 working days for sample, 10-15 working days for mass production.
