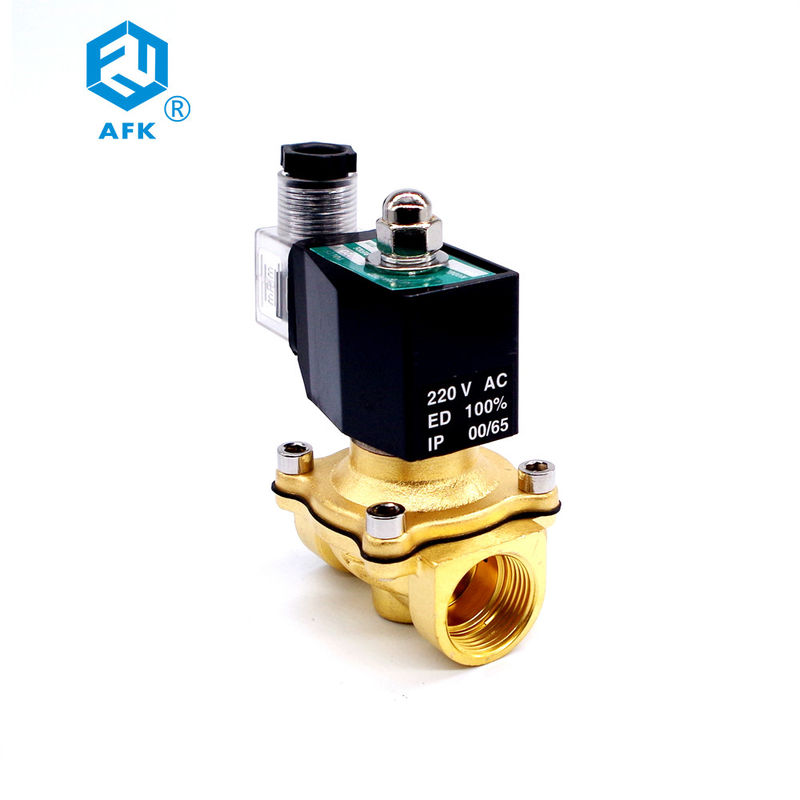

2W-160-15 Water Dispenser Solenoid Valve AC220V AC110V AC380V Shutoff Structure

Product Details

Place of Origin: China

Brand Name: AFK

Model Number: 2W-160-15

Payment & Shipping Terms

Minimum Order Quantity: 1-9 pieces

Price: Negotiable

Packaging Details: PP bag+ white box+export carton

Delivery Time: 5-8 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000 pieces per week

Get Best Price
Contact Now
Specifications
Highlight:

electronic water flow control valve

,

water control solenoid valve

Size:
1/2 Inch
Type:
Normally Closed
Voltage:
AC220V, AC110V, AC380V,
Pressure:
Medium Pressure,Low Pressure,High Pressure
Temperature Of Media:
Normal Temperature,Medium Temperature,High Temperature
Application:
General,irrigation,air And General Use
Size:
1/2 Inch
Type:
Normally Closed
Voltage:
AC220V, AC110V, AC380V,
Pressure:
Medium Pressure,Low Pressure,High Pressure
Temperature Of Media:
Normal Temperature,Medium Temperature,High Temperature
Application:
General,irrigation,air And General Use
Description
2W-160-15 Water Dispenser Solenoid Valve AC220V AC110V AC380V Shutoff Structure

2W-160-15 Electric Water Solenoid Normally Closed Vale AC220V, AC110V, AC380V,



Application: General, Water, Oil, Air

Media: Water
Structure: Shutoff

Working Pressure: 0-10bar
Connection: G , NPT Thread

Media Temperature: -5-80C, 120C, 150C



Charateristic



1. The direct-acting type diaphragm structure without pressure to open to extend the using field.

2. Using the plate diaphragm structure opening and closing with reliable. Then extent product life.

3. Can choose plastic type,. Explosion-proof energy-saving.



Technical data





Model NO.

2w-025-06

2w-025-08

2w-040-10

2w-160-10

2w-160-15

2w-200-20

2w-250-20

2w-320-32

2w-400-40

2w-500-50

Pipe size

1/8”

1/4”

3/8”

1/2”

3/4”

1”

1 1/4

1 1/2”

2”

Orifce size

2.5mm

4mm

4mm

16mm

16mm

20mm

25mm

32mm

40mm

50mm

CV valve

0.23

0.6

4.8

4.8

7.6

12

24

29

48

fuild

Air, water, ol, the neutral gas,liquid

Service voltage

AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%

Operating

Direct acting

Type

Normally closed

Body Material

Brass

viscosity

(Below)20CST

Working pressure

Water, air;0-10kgf/m2 ;oil:0-7kgf/m2

Material of seal

Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON



























2W-160-15 Water Dispenser Solenoid Valve AC220V AC110V AC380V Shutoff Structure 0

Our service

1.R&Q (Design according to client's requirements )

2.Professional mold manufacturer .

3.Competitive price with high quality

4.We will keep online every work day .

5.We will reply your email and fox within 24 hours .

6. You may call and make touch with us anytime , if you have question on our products .
