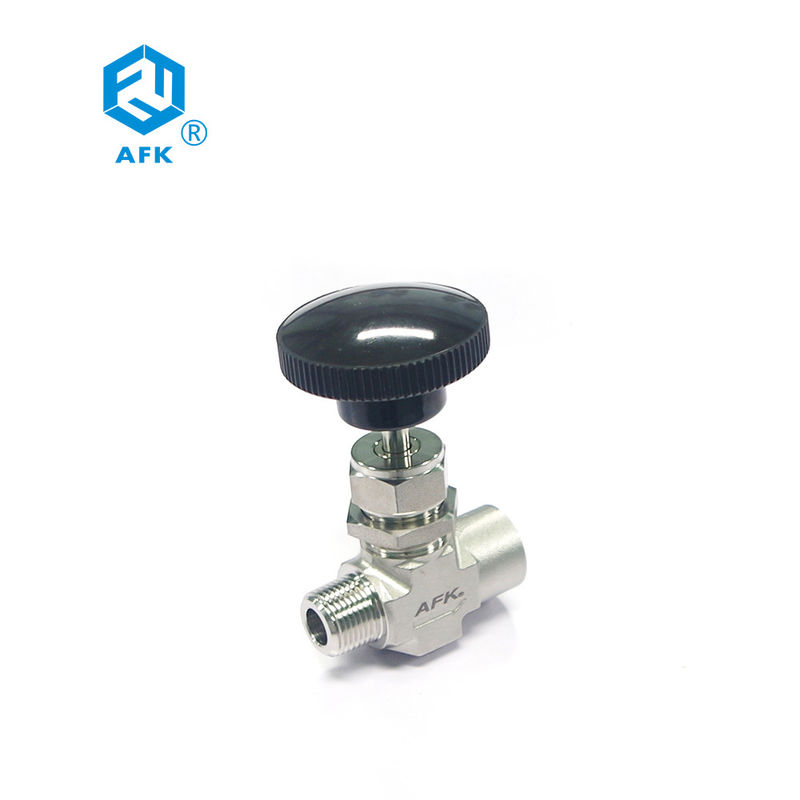

Panel Mount 6000psi SS316 Gas Compression Needle Valve 342bar

  • Panel Mount 6000psi SS316 Gas Compression Needle Valve 342bar
  • Panel Mount 6000psi SS316 Gas Compression Needle Valve 342bar
Place of Origin Guandong.China
Brand Name AFK
Certification CE
Model Number NV
Minimum Order Quantity 1Piese
Price Negotiable
Packaging Details export packing
Delivery Time 5-8work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 10000 Set/Sets per Week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Orifice Upon Requirement Cv 0.09~1.8
Stem Type Regulating Flow Pattern Straight
Mounting Panel Brand AFK
High Light

SS316 Gas Compression Needle Valve

,

6000psi Gas Compression Needle Valve

,

342bar Panel Mount Needle Valve
Leave a Message
Product Description

Features:



  • One-piece forged body
  • Easy external adjustments by packing nuts
  • Live-loaded packing system
  • Handle of afferent colors available for option
  • Compact design
  • Panel mount available as an option
  • Leak-tight performance testing for every valve with Nitrogen/Air at the maximum working pressure



Working pressure up to:

NG Series--Stainless Steel ,Brass,Alloy400:3000 psi(207bar)

NGH Series--Sainless Steel:6000 psi(342bar)



Working temperature:

PTFE:-65℉--450℉(-54℃--232℃)

PEEK:-65℉--500℉(-54℃--260℃)





base metal SS 316L
Handle
Phenolic Resins
Locking Nut
SS304







Panel Mount 6000psi SS316 Gas Compression Needle Valve 342bar 0



Panel Mount 6000psi SS316 Gas Compression Needle Valve 342bar 1

Type
Conn./Size
Orifice
Dimensions(mm)
Inlet/Outiet
In.
A
B
C
D
E
F






AFK TUBE END



Fractional
1/8''
0.08
59.8
29.9
72.7
36
24.2
11.5
1/4''
0.18
61.7
30.9
72.7
36
24.2
11.5
3/8''
0.24
67.5
33.8
86.5
50
28.4
13.0
1/2''
0.24
71.8
35.9
86.5
50
28.4
11.0



Metric
4mm
0.08
60.2
30.1
72.7
36
24.2
11.5
6mm
0.18
61.1
30.6
72.7
36
24.2
11.5
8mm
0.18
63.7
31.9
72.7
36
24.2
11.5
10mm
0.24
67.8
33.9
86.5
50
28.4
13.0
12mm
0.24
71.4
35.7
86.5
50
28.4
13.0


MALE THREAD


Fractional
1/8''
0.16
46.0
23.0
72.7
36
24.2
11.5
1/4''
0.16
50.0
25.0
72.7
36
24.2
11.5
3/8''
0.24
56.0
28.0
86.5
50
28.4
13.0


FEMALE THREAD


Fractional
1/8''
0.16
46.0
23.0
72.7
36
24.2
11.5
1/4''
0.16
46.0
23.0
72.7
36
24.2
11.5
3/8''
0.24
52.0
23.0
86.5
50
 28.4 13.0






Application:
