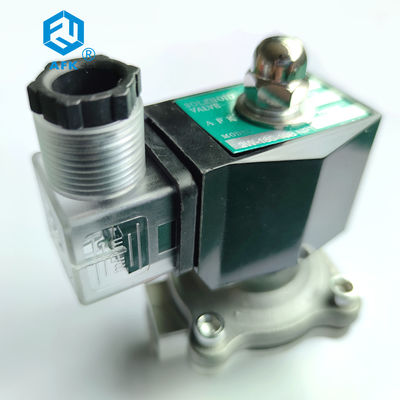

Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: 2W-160-10B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000PC
Power: |
Solenoid |
Port Size: |
1/2" |
Media: |
Water,air |
Standard Or Nonstandard: |
Standard |
Type: |
Normal Close |
Voltage: |
110V,AC220V,24V. AC24V |
Power: |
Solenoid |
Port Size: |
1/2" |
Media: |
Water,air |
Standard Or Nonstandard: |
Standard |
Type: |
Normal Close |
Voltage: |
110V,AC220V,24V. AC24V |
| Pipe size | 3/8 | 1/2” | 3/4” | 1” | 1 1/4“ | 1 1/2” | 2” |
| Orifce size | 16mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm |
| CV valve | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| fuild | Air, water, ol, the neutral gas,liquid | ||||||
| Service voltage | AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10% | ||||||
| Operating | Pilot operating | Type | Normally closed | ||||
| Body Material | stainless teel 304 | viscosity | (Below)20CST | ||||
| Working pressure | Water, air;0-10kgf/m2 ;oil:0-7kgf/m2 | ||||||
| Material of seal | Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use fluororubber | ||||||
| Model NO. | A | B | C |
| 2W-160-10B | 69 | 57 | 107 |
| 2W-160-15B | 69 | 57 | 107 |
| 2W-200-20B | 73 | 57 | 115 |
| 2W-250-25B | 98 | 77 | 125 |
| 2W-320-32B | 115 | 87 | 153 |
| 2W-400-40B | 124 | 94 | 162 |
| 2W-500-50B | 168 | 123 | 187 |
