Material: |
Stainless Steel |
Media: |
Gas |
Application: |
General |
Name: |

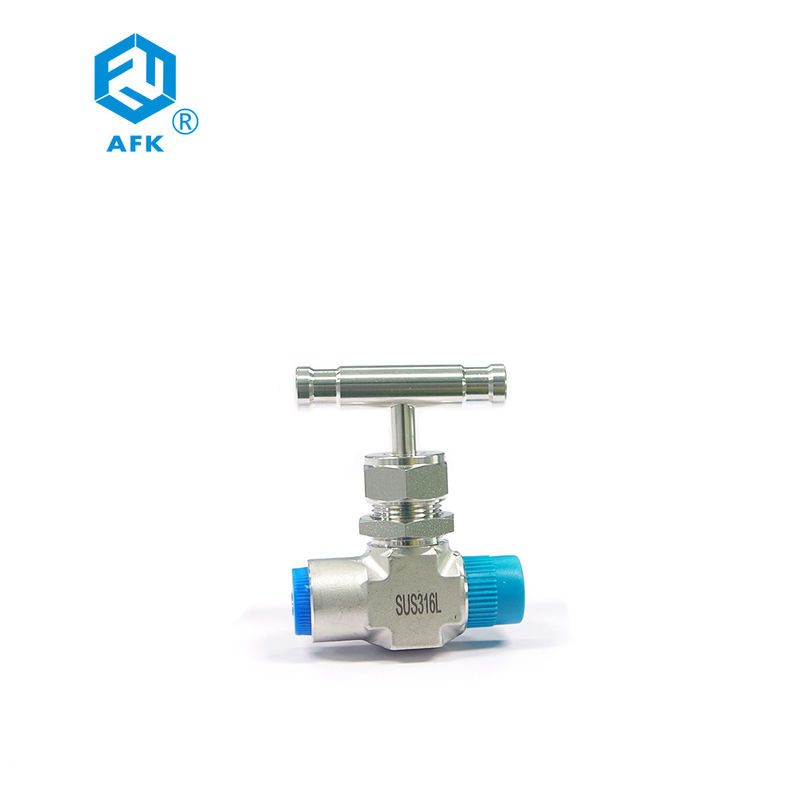

High Pressure Needle Valve |
Standard Or Nonstandard: |
Standard |
Product Name: |
Hydraulic Ball Valve |
Material: |
Stainless Steel |
Media: |
Gas |
Application: |
General |
Name: |
High Pressure Needle Valve |
Standard Or Nonstandard: |
Standard |
Product Name: |
Hydraulic Ball Valve |
characteristic:
Packing material & pressure stability range:
| Body material | ss316/316L | |
| packing material | TFM1600 | GRAPHITE |
| temperature ℃(℉) | temperature range, psi (bar) | |
| -53℃ | 6000(413) | 6000(413) |
| 93(200) | 5160(355) | 5160(355) |
| 121(250) | 4910(338) | 4910(338) |
| 148(300) | 4660(321) | 4660(321) |
| 176(350) | 4470(307) | 4470(307) |
| 204(400) | 4280(294) | 4280(294) |
| 232(450) | 4310(284) | |
| 260(500) | 3980(274) | |
| 315(600) | 3760(259) | |
| 371(700) | 3600(248) | |
| 426(800) | 3460(238) | |
| 482(900) | 3280(225) | |
| 537(1000) | 3030(208) | |
| packing material | Body material | temperature resistance | |
| standard | TFM1600 | SS316/316L | -53℃(-65℉)~+210℃(410℉) |
| selection | GRAPHITE | SS316/316L | -53℃(-65℉)~+537℃(1000℉) |
Material structure:
| Item | part name | quantity | Material |
| 1 | Handle | 1 | Aluminum |
| 2 | handle fixing screw | 1 | SS304 |
| 3 | valve stem | 1 | SS316/316L |
| 4 | dust cover | 1 | PVC |
| 5 | packing screw | 1 | SS316/316L |
| 6 | fixing cover | 1 | SS304 |
| 7 | valve cover | 1 | SS316/316L |
| 8 | gland | 1 | SS316/316L |
| 9 | upper packing | 1 | TFM1600 |
| 10 | lower packing | 1 | TFM1600 |
| 11 | valve core | 1 | SS630 |
| 12 | body | 1 | SS316/316L |
Selection table:
| C | NV | 33- | S6- | 02 | A | T | D4 | |
| Product category | product name | valve type | material | size (English system) | size (metric system) | connection method | packing | hole diameter |
| C:Valves | NV:Needle | 1.straight through corner |
S6:SS316
|
01:1/8" | 4:4mm | A:Ferrule type | T:TFM1600 | D4:4mm |
| S6L:SS316L | 02:1/4" | 6:6mm | MR:external thread PT | G:graphite | D:6:6mm | |||
| 03:3/8" | 8:8mm | FR:internal thread PT | D:8:8mm | |||||
| 04:1/2" | 10:10mm | MN:external thread NPT | D:10:10mm | |||||
| 12:12mm | FN:internal thread NPT | D:12:12mm | ||||||
| 14:14mm | BW:butt welding type | D:15:15mm | ||||||
| 15:15mm | SW:sleeve welding type | |||||||
| 16:16mm | UW:union welding type | |||||||
| 18:18mm | ||||||||
| 20:20mm | ||||||||
| 22:22mm | ||||||||
| 25:25mm | ||||||||
| 28:28mm | ||||||||
| 32:32mm | ||||||||
| 34:34mm | ||||||||
