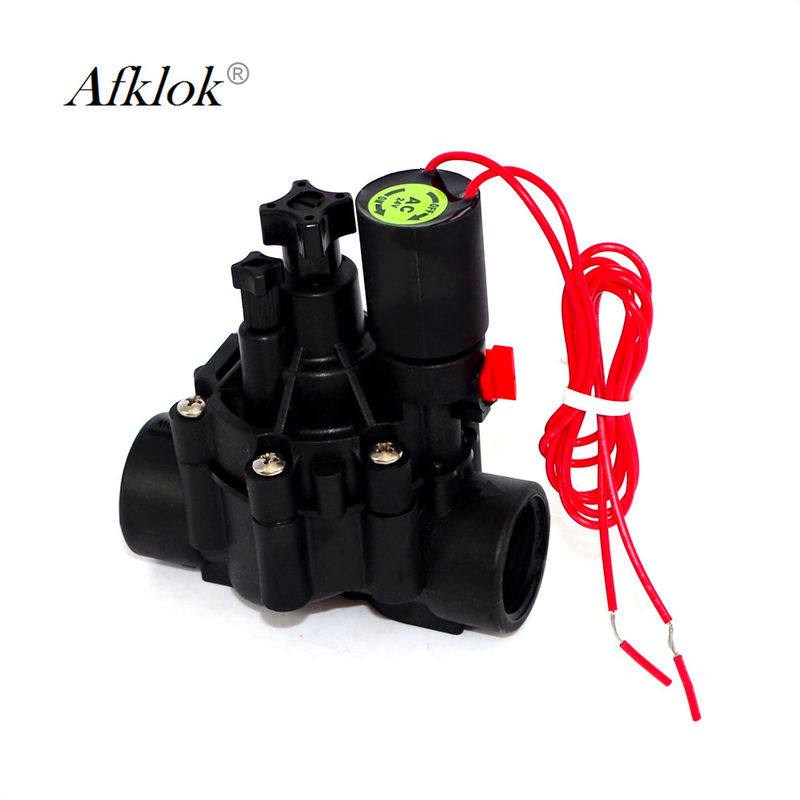

Water Media AC24V Sprinkler Solenoid Valve 3/4" Nylon Plastic

Place of Origin China
Brand Name AFK
Certification CE
Model Number 076D
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Plastic Port Size 3/4",1"
Structure Shutoff Temperature Of Media Medium Temperature
Media Water Voltage 110V,24V. AC24V
High Light

Water Media Sprinkler Solenoid Valve

,

AC24V Sprinkler Solenoid Valve

,

Nylon Plastic Potable Solenoid Valve

Leave a Message
Product Description

it's currently one of the most widely used solenoid valve in garden irrigation
Applied in large area of lawn, Gym, agriculture, industrial dedusting and water treatment equipment

With Flow Control function.

TECHNICAL PARAMETERS
material nylon plastic body, NBR seal
Fluid water
Fluid temperature ≤43°C
Service voltage 6-20VDC(latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
Connection G(BSP) female thread is regular, special order for NPT(3/4" and 1")
Size

076D: 3/4", 20mm (BSP or NPT female)

101D:1", 25mm (BSP or NPT female )

Working pressure 3/4" and 1": 0.2-10bar
Flow rate

3/4":0.24 to 4.5 m3/h

1": 0.24 to 9.0 m3/h

Operation mode valve element lock position,valve open, release position, valve close.



Detailed Images
Water Media AC24V Sprinkler Solenoid Valve 3/4" Nylon Plastic 0



075D 100D solenoid valve

1. Pilot operating construction, valve body in nylon material
2. double filter prevent Blocking electromagnetic iron core
3.Totally Closed electromagnetic coil, waterproof
4.having slow closed function, preveting water hammer, damaging system









200P solenoid valve


1.Straight valve and Angle valves to be in harmony an organic whole
2.Dimesion: 110*80*120mm (L*W*H)
112X 82 X120mm with flange (L*W*H)
