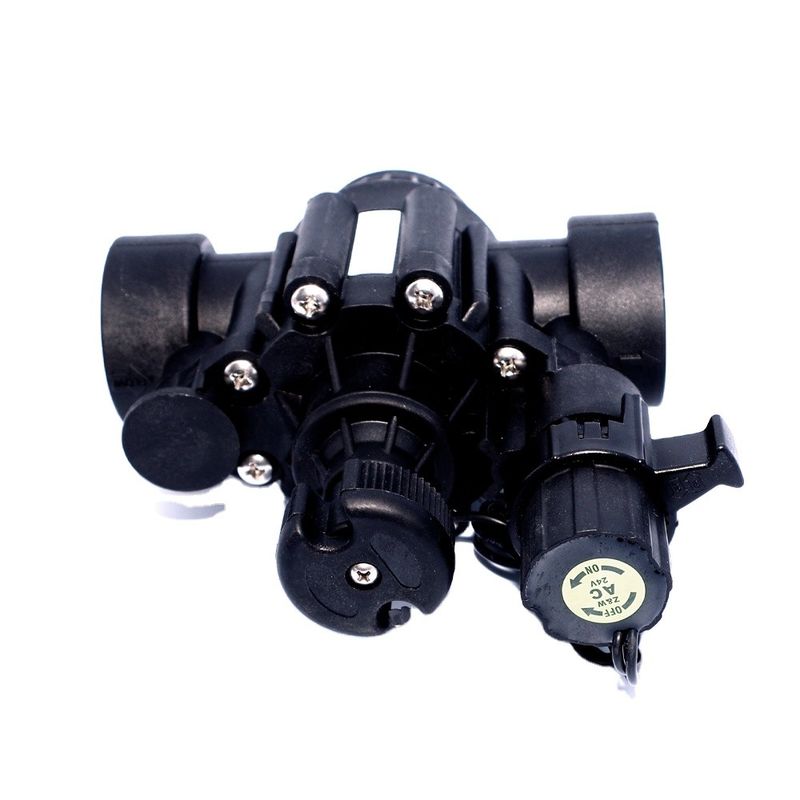

Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water

Place of Origin China
Brand Name AFK
Certification CE
Model Number 150P
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Plastic Power Solenoid
Port Size 1",1/2" Structure Pilot
Temperature Of Media Medium Temperature Media Water
Standard Or Nonstandard Standard Voltage 110V,AC220V,24V. AC24V
Working Pressure 0.15~0.85Mpa Certification CE
High Light

Diaphragm Irrigation Solenoid Valve

,

Magnetic Irrigation Solenoid Valve

,

AC24V Water Shut Off Valve

Leave a Message
Product Description
Product Description





Characteristic


1. The pilot type diaphragm structure , nylon body material.

2. Double filter to prevent clogging eletromagnetic core.

3.Fully enclosed eletromagnrtic coil, waterproof.

4.A slow off function to prevent water harmmer, damage the system.

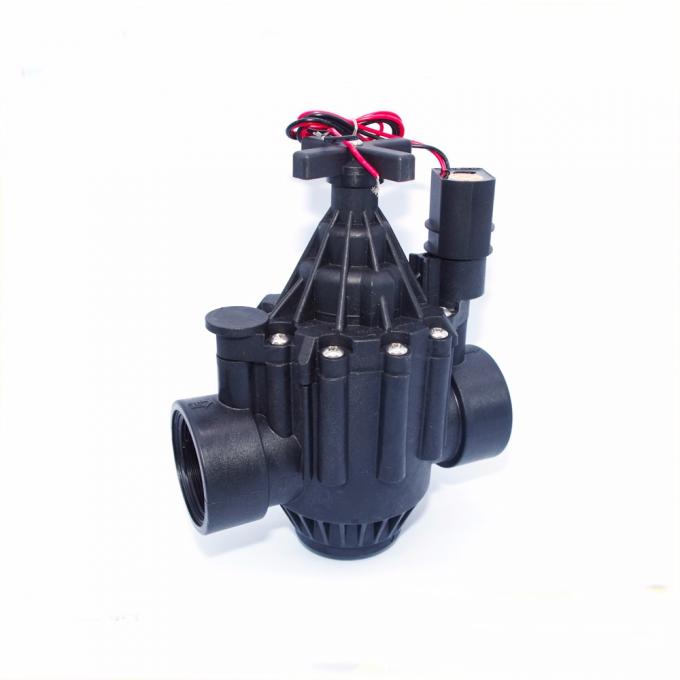

Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water 0
DESIGN FEATURES
1. Irrigation solenoid valve
2. Fit for stadium, farm, industrial dust and water treatment equipment.
3. Normally closed.
4.Pipe size : 1.5 "
5. Service voltage : DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V, DC9V
6.Thread connnector :G
7.Material-body valve -nylon
Structure Parameters



One

Medium:Water

Temperature: Suitable water≤42℃, surroundings≤52℃

Application range: It is currently one of the most widely used electromagnetic valve in garden irrigation, large-scale garden lawn, stadium, farm, industrial dust and water treatment equipment.





Two

Model: 150P

Pressure: 0.1~1.04Mpa

connect size: 1.5"

Thread: G

Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA

Orifice size: 40mm

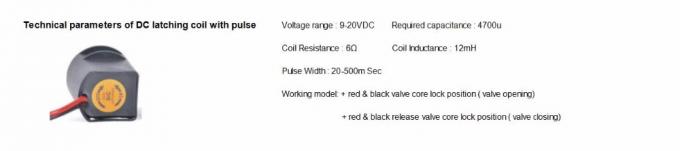

Self-holding type coil: DC6-20V, Pulse Width (20-500mSec)

working model(+red&-black valve open)

(-red&-black valve closed)





Three

Material-body valve -nylon

enclosed-NBR

Moving iron core-430F

Static iron core-430F

Spring-SUS304

Sub-magnetic ring-Copper





Water treatment solenoid, normally closed, coil AC24V, Self-holding type coil DC6-20V (Please specify when ordering)



Detailed Images

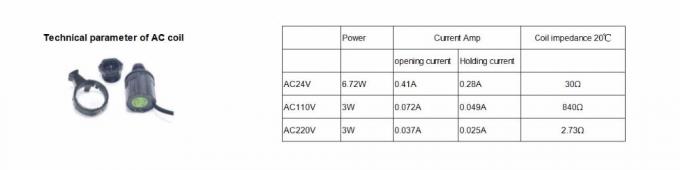

Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water 1

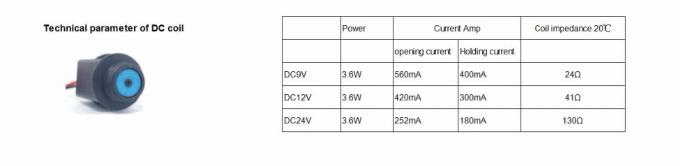

Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water 2
Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water 3
Product Show

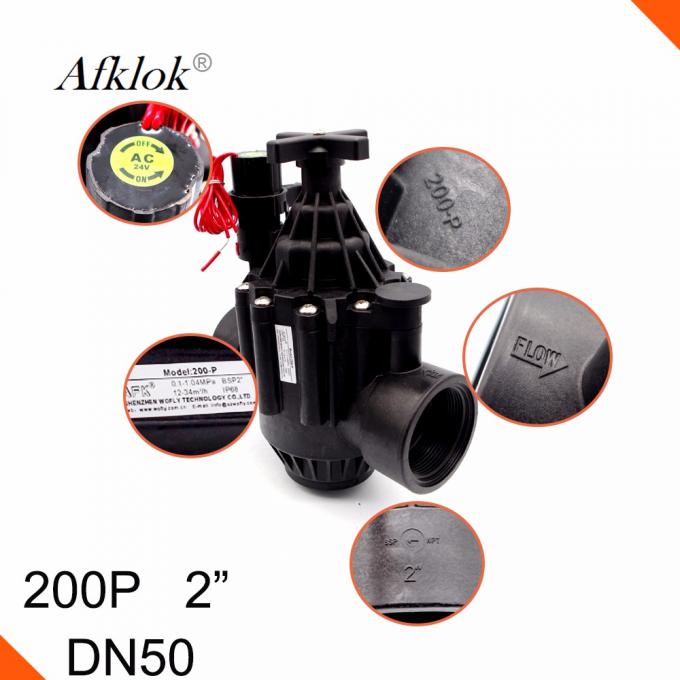

Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water 4
Packing & Delivery

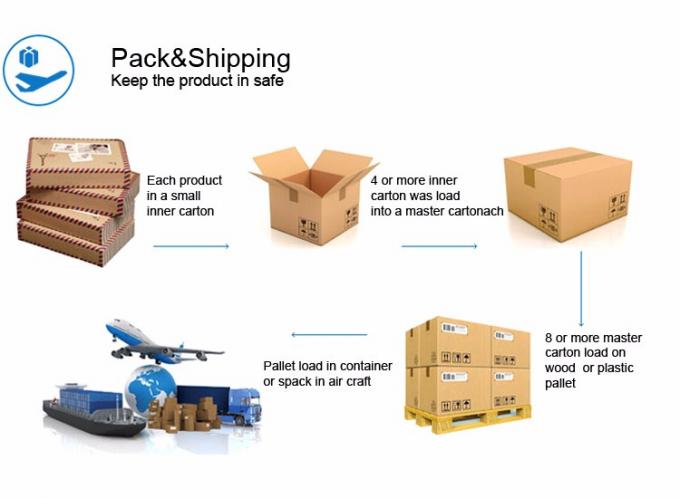

Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water 5
Packaging
Size
30cm*25cm*16cm
Weight
Different size has different weight



Packaging Details
The normal package is wooden box(Size: L*W*H). Or according to customers special request.
Certifications
Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water 6
Our Service
Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water 7



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

Diaphragm Magnetic Irrigation Solenoid Valve AC24V For Water 8



After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
