20VDC 300p Plastic Water Solenoid Valve For Sprinkler System

  • 20VDC 300p Plastic Water Solenoid Valve For Sprinkler System
  • 20VDC 300p Plastic Water Solenoid Valve For Sprinkler System
  • 20VDC 300p Plastic Water Solenoid Valve For Sprinkler System
  • 20VDC 300p Plastic Water Solenoid Valve For Sprinkler System
Place of Origin China
Brand Name AFK
Certification CE
Model Number 300P
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Plastic Power Solenoid
Port Size 2",1" Media Water
Application General Standard Or Nonstandard Standard
Type Normal Close Voltage 110V,AC220V,24V. AC24V
Certification CE
High Light

Sprinkler System Water Solenoid Valve

,

300p Plastic Water Solenoid Valve

,

20VDC Water Control Valve
Leave a Message
Product Description
Specification



No. ITEM TECHNICAL PARAMETERS
1 material nylon plastic body, NBR seal
2 Fluid water
3 Fluid temperature ≤43°C
4 Environment temperature ≤52°C
5 Service voltage 6-20VDC(can be order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
6 Pulse width 20-500mSec (only for latching type)
7 Coil resistance 6 Ω
8 Capacitance 4700uF
9 Coil inductance 12mH
10 Connection G(BSP) female thread is regular, special order for NPT(3/4" and 1")
11 Size



075D: 3/4", 20mm (BSP or NPT female)

100D:1", 25mm (BSP or NPT female )

100P:1", 25mm (BSP female)

150P:1-1/2"(1.5"), 40mm (BSP female)

200P:2", 50mm (BSP female)

300P:3", 80mm (BSP female, male, flange)

400P:4", 100mm (BSP female, male, flange)


12 Working pressure



3/4" and 1": 1-10bar

1.5"and 2": 1-10.4bar

3"and 4": 0.7-14bar


13 Flow rate



3/4": 5 m³/h

1": 9 m³/h

1.5"-2": 0.45-34.05 m³/h

3"-4": 1.1-70 m³/h


14 Operation mode valve element lock position,valve open, release position, valve close.

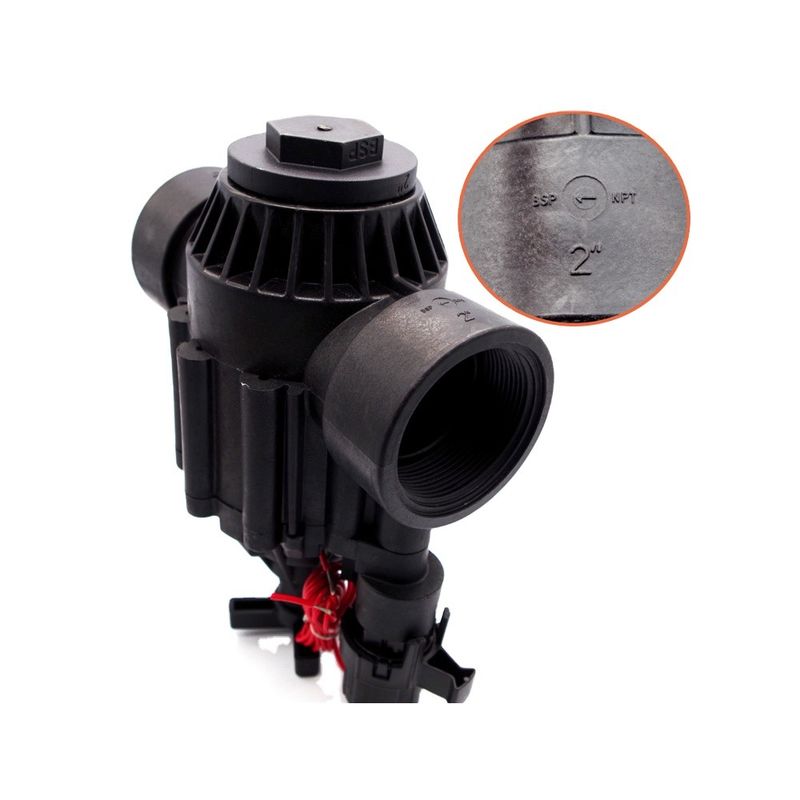

20VDC 300p Plastic Water Solenoid Valve For Sprinkler System 0
