Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: 150P
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC
Standard Or Nonstandard: |
Standard |
Pressure: |
0.1~1.04Mpa |
Applicable Medium: |
Water |
Temperature: |
Suitable Water≤42℃, Surroundings≤52℃ |
Orifice Size: |
40mm |
Thread: |
G |
Voltage: |
DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V, DC9V |
Media: |
Water |
Authentivation: |
CE |
Place Of Origin: |
China |
Standard Or Nonstandard: |
Standard |
Pressure: |
0.1~1.04Mpa |
Applicable Medium: |
Water |
Temperature: |
Suitable Water≤42℃, Surroundings≤52℃ |
Orifice Size: |
40mm |
Thread: |
G |
Voltage: |
DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V, DC9V |
Media: |
Water |
Authentivation: |
CE |
Place Of Origin: |
China |
| Power | Cument Amp | Coil impedance 20℃ | ||
| Opening cument | Holding cument | |||
| AC24V | 6.72W | 0.41A | 0.28A | 30Ω |
| AC110V | 3W | 0.072A | 0.049A | 840Ω |
| AC220V | 3W | 0.037A | 0.025A | 2.73Ω |
| Power | Cument Amp | Coil impedance 20℃ | ||
| Opening cument | Holding cument | |||
| DC9V | 3.6W | 560mA | 400mA | 24Ω |
| DC12V | 3.6W | 420mA | 300mA | 41Ω |
| DC24V | 3.6W | 252mA | 180mA | 130Ω |
| One | Two | three |
|
Medium:Water Temperature: Suitable water≤42℃, surroundings≤52℃ Application range: It is currently one of the most widely used electromagnetic valve in garden irrigation, large-scale garden lawn, stadium, farm, industrial dust and water treatment equipment. |

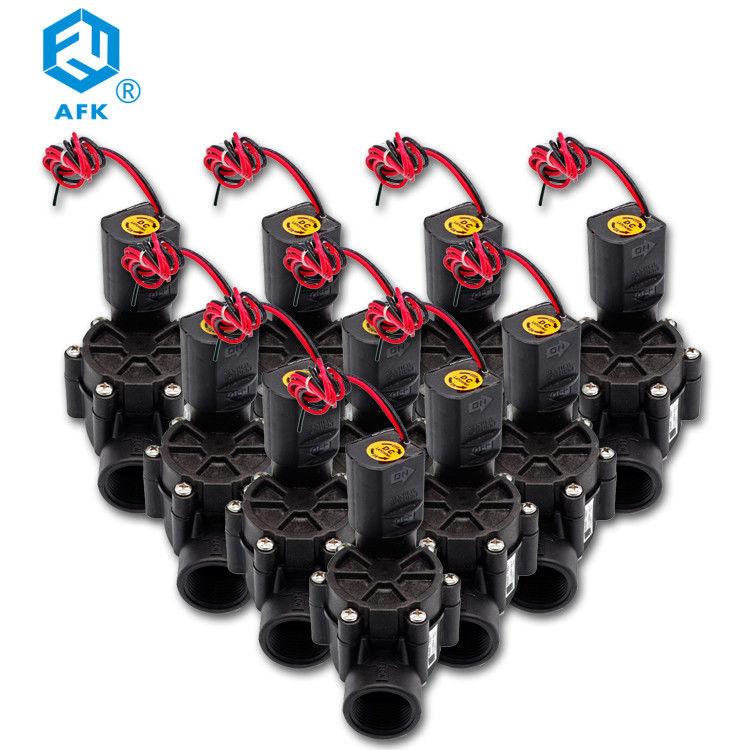

Model: 150P Pressure: 0.1~1.04Mpa connect size: 1.5" Thread: G Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA Orifice size: 40mm Self-holding type coil: DC6-20V, Pulse Width (20-500mSec) working model(+red&-black valve open) (-red&-black valve closed) |
Material-body valve -nylon enclosed-NBR Moving iron core-430F Static iron core-430F Spring-SUS304 Sub-magnetic ring-Copper |
