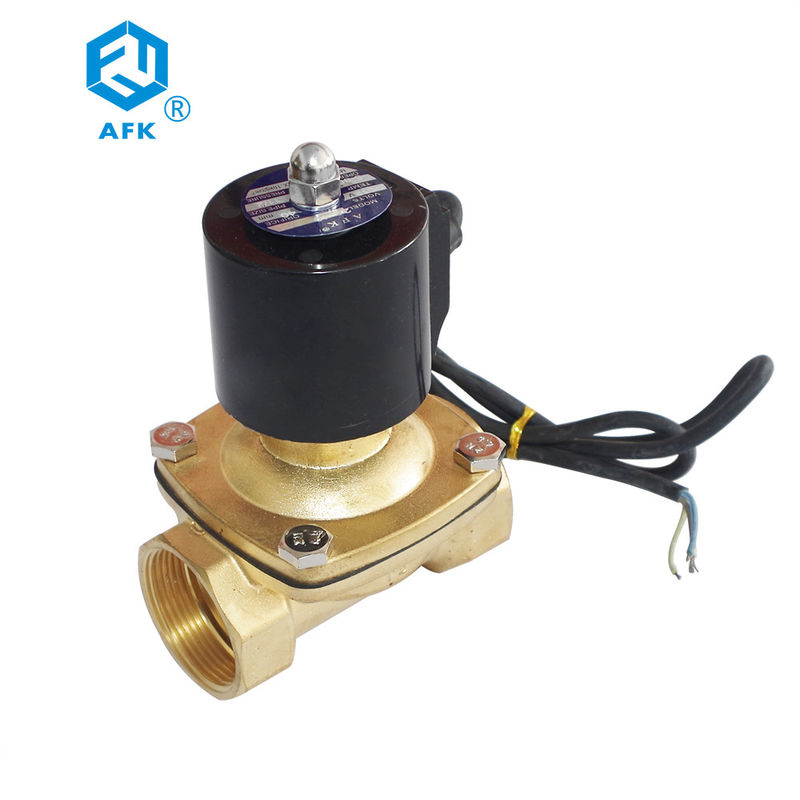

Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V

Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V
Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V

Large Image :  Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: SV-2A
Payment & Shipping Terms:
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC

Brass IP68 Internal Thread Water Solenoid Valve 2 Inch AC220V

Description
Body Material: Brass Ambient Temperature: -10℃-50℃
Media: Water POwer Supply: AC220V 15VA, DC24V 15W,AC220V 25VA, DC24V 25W
Standard Or Nonstandard: Standard Medium: Air,water,oil,natural Liquid
Warranty: 1 Year Type: Normal Colse/normal Open
High Light:

Internal Thread Water Solenoid Valve

,

IP68 Water Solenoid Valve

,

AC220V Solenoid Control Valve

Features:

1. 2A series solenoid valve is the automatic control system of common switch element.

2. As the core of music fountain control equipment, especially suitable for running spring.

3. 2A series direct-acting solenoid valve with a media pressure working, adoting diaphragm structure with the opening and closing speed.

4. Stable performance, convenient application, high reliability, long service.

5. Can be used in river and various artificial water area for a long period, excellent performance in the domestic leading level.



Technical Parameters:

Ambient Temperature -10℃-50℃
Body Material brass/stainless steel
Media Temperature 0-60℃
Working Pressure 1Mpa
Media Water
POwer Supply AC220V 15VA, DC24V 15W,AC220V 25VA, DC24V 25W
Allow the Fluctuation -10%~+10%
Insulation Grade B class
Insulation class IP68
Closing and opening speed 1 second
Applicable of life 100 thousand times
Install Way media flow direction and the on the arrow consistent. The coil vertically upward. The working media clean and no particle impurities

Structure parameters





  A B c   Material(mm)
2A-15 62 55 102 G1/2 Brass
2A-20 67 55 113 G3/4″
2A.25 86 73 117 G1
2A.32 9. 77 130 G1 1/4
2A-40 106 67 164 G1 1/2
2A50 123 S3 176 G2
2A-15B 69 57 107 G1/2 stailless steel
2A-20B 73 57 115 G3/4
2A25B 98 77 125 G1
2A-32B 115 87 153 G1J/4”
2A-40B 121 94 162 G1 1/2”
2A-50B 6S 123 187 G2
2A-15BF 107 95 150

stailless steel

Material Flange

connection

2A-20BF 107 102 150
2A-25BF 138 10S 165
2A-32BF 149 131 200
2A-40BF 160 141 200
2A-50BF Jfi6 160 240
