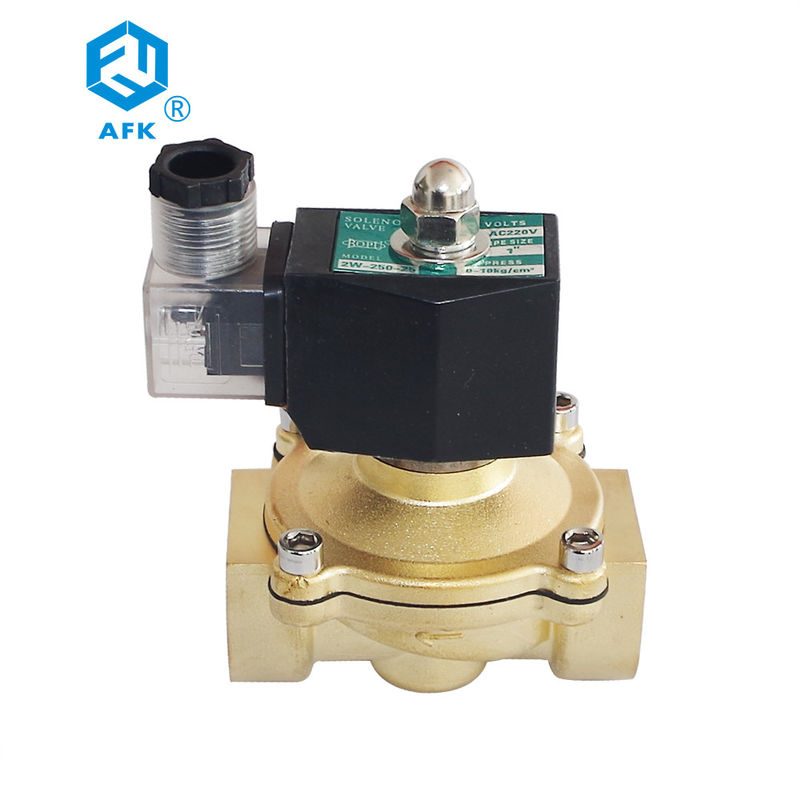

12V 24V 110V 220V AFK 2T Lpg Gas Solenoid Valve 3/4 Inch
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Brass | Structure | Control |
|---|---|---|---|
| Pressure | Low Pressure | Temperature Of Media | Normal Temperature , Low Temperature |
| Media | Gas , Water | Product Name | Solenoid Valve |
| Size | 1" , 2" | ||
| High Light | Lpg Gas Solenoid Valve,220V Gas Solenoid Valve,3/4 Inch Brass Solenoid Valve |
||
Product Description
Product Show
| Characteristic |
| One-time open valve connection the opening structure, without pressure, seal with high performance, achieve leakage |
| Product use |
|
On the gas natural gas combustion automatic control media in the pipeline can also control of other fluid in low voltage system.
|
Install Way
1.Media flow direction is in line with arrow.
2. Horizontal installation, the coil up.
3.The coil vertically upward.
4. Below 25 can be equipped with explosion-proof coil.
5. Explosion-proof certificate NO.:GYB03616X
6. Explosion-proof standards:GB3836.1-2000,GB3836.9-1990
7. Explosion mark:EXM/11 T4
Product Description
| Product Name | LPG, gas, Natural Gas Solenoid Valve |
| Size | 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″ |
| Type | Normally Closed/Normally Opened |
| Body material | Brass, ss304 |
| Voltage | 220VAC, 110VAC, 24VDC, 24VAC, 12VDC |
| Working pressure |
0-10bar for lpg gas (normally closed) 1-8bar for natural gas (normally opened) |
| Seal Material | Viton |
| Medium Temperature | -5-180degree |
| Explosion-proof | Optional |
Selection Table
| Model no. | A | B | c | port sire | Material |
| 2T-15 | 62 | 55 | 102 | G1/2″ | Brass |
| 2T-20 | 67 | 55 | 113 | G3/4″ | |
| 2T.25 | 86 | 73 | 117 | G1” | |
| 2T-32 | 90 | 11 | 130 | G1 1/4” | |
| 2T.40 | 106 | 67 | 164 | G1 1/2″ | |
| 2T-50 | 123 | 93 | 176 | G2″ | |
| 2T-15B | 69 | 57 | 107 | G1/2″ | stainless steel |
| 2T-20B | 73 | 57 | 115 | G3/4” | |
| 2T-25B | 98 | 77 | 125 | G1″ | |
| 2T-32B | 115 | 87 | 153 | G1 1/4″ | |
| 2T-40B | 121 | 94 | 162 | G1 1/2″ | |
| 2T-50B | 168 | 123 | 187 | G2” | |
| 2T-15BF | 107 | 95 | 150 | DN15 | stein less steel Material Flange ocnnection |
| 2T-20BF | 107 | 102 | 150 | DN20 | |
| 2T-25BF | 138 | 108 | 165 | DN25 | |
| 2T-32BF | 149 | 131 | 200 | DN32 | |
| 2T-40BF | 160 | 141 | 200 | DN40 | |
| 2T-50BF | 186 | 160 | 2G | DN50 |
