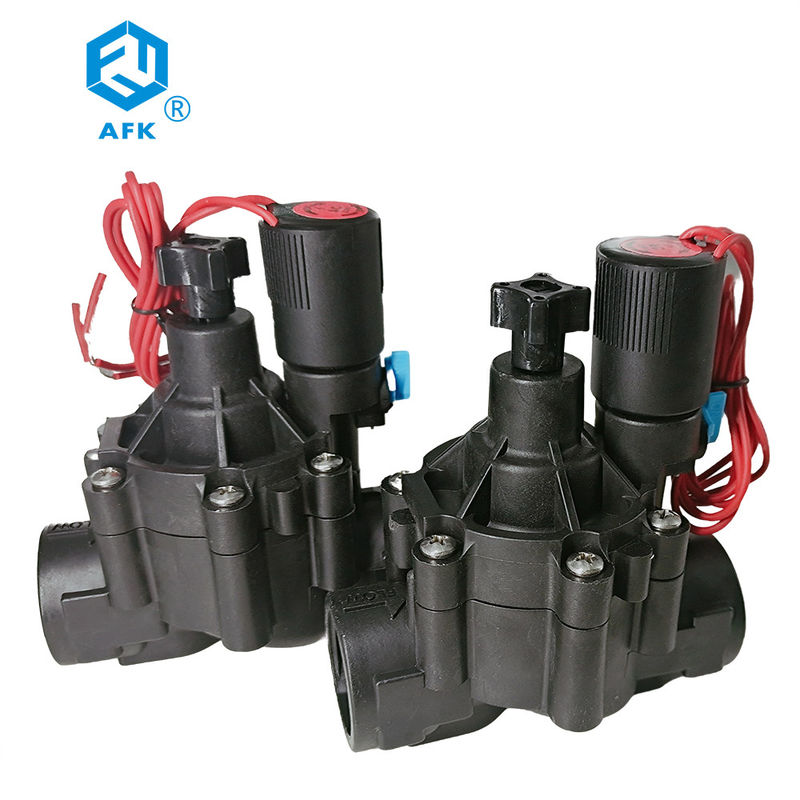

101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon

  • 101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon
  • 101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon
  • 101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon
  • 101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon
  • 101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon
  • 101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon
Place of Origin China
Brand Name AFK
Certification CE
Model Number SV-101D
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pressure 0.1-1.0Mpa Temperature Of Media Normal Temperature,Medium Temperature,Low Temperature
Media Water Application General
Standard Or Nonstandard Standard Voltage AC220V , AC110V , AC24V , 50/60Hz DC24V , DC12V , DC9V DC Latching
Certification CE Flow 9m3/h
Temp Water Temp ≤ 53℃,surrounding Temp80 ≤ ℃ Port Size 3/4"and 1"
Port Thread Female G BSP , NPT (customaization) Orifice DN20/DN25
High Light

NBR Sealing Water Solenoid Valve

,

Agricultural Irrigation Water Solenoid Valve

,

SUS304 Flow Control Valve
Leave a Message
Product Description

Prodcut description

Feature:
1, Pilot operated diaphragm structurt , nylon reinforced.
2, Double filtration to protect solenoid core.
3, Water proof sealing coil.
4, Close slowly function to prevent the wate hammer.

Application
One of the most widely used valves in agriculture and landscaping irrigation system , like large area of lawn , stadium , agriculture , industrial dust and water treatment.
Material
  1. Body :reinforced nylon
  2. Sealring : NBR
  3. The movable iron core : stainless steel 430F
  4. The static iron core : stainless steel430F
  5. Springs : SUS304
  6. Shading coil : red copper





Our company

101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon 0 101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon 1
101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon 2 101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon 3



Packing & Delivery

101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon 4 101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon 5



Company Qualification

101D Agricultural Irrigation Water Solenoid Valve NBR Sealing Nylon 6



RFQ



Q. Are you manufacturer?

A. Yes, we are manufacturer.



Q.What is lead time?

A.3-5days. 7-10 days for 100pcs



Q. How do I order?

A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours



Q. Do you have any certificates?

A. We have CE certificate.



Q: What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery.
