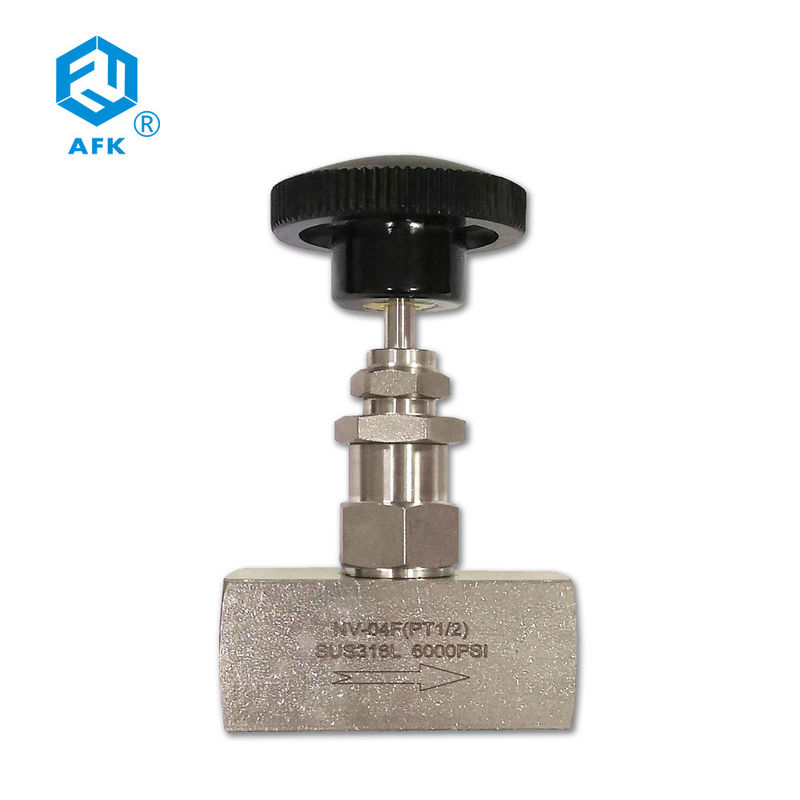

6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas

6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas
6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas 6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas 6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas 6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas 6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas 6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas

Large Image :  6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: BV
Payment & Shipping Terms:
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC

6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas

Description
Material: Stainless Steel,SS304 Port Size: Standard,1/8" 1/4" 3/8" 1/2"
Pressure: High Pressure Temperature Of Media: Medium Temperature,Normal Temperature
Standard Or Nonstandard: Standard Media: Gas
Application: General Size: 1/8" To 3/4"
Valve Type: 2 Way
High Light:

Non Rotating Stem Manual Needle Valve

,

6000psi Manual Needle Valve

,

3/8in Stainless Steel Gas Valve

Prodcut Description

Features

One-piece forged body
Easy external adjustments by packing nuts
Live-loaded packing system
Handle of afferent colors available for option
Compact design
Panel mount available as an option
Leak-tight performance testing for every valve with Nitrogen/Air at the maximum working pressure
Working pressure up to:
NG Series--Stainless Steel ,Brass,Alloy400:3000 psi(207bar)
NGH Series--Sainless Steel:6000psi(342 bar)
Working temperature:
PTFE:-65℉--450℉(-54℃--232℃)
PEEK:-65℉--500℉(-54℃--260℃)



Type Conn./Size Orifice Dimensions(mm)
Inlet/Outlet mm In. A B C D E F
FEMALE THREAD Fractional 1/8" 4 0.16 46.0 23.0 72.7 36 24.2 11.5
1/4" 4 0.16 46.0 23.0 72.7 36 24.2 11.5
3/8" 6 0.24 52.0 26.0 86.5 50 28.4 13.0

6000psi AFK 2 Way Manual Needle Valve 3/8in For Gas 0

Item Component Valve Body Material
316SS 304SS 321SS Brass Alloy 400
1 Handle Anodized aluminum
2 Stop Pin Stainless Steel
3 Spool Aluminum
4 Set Screw Stainless Steel
5 Packing Bolt 316SS/A276 304SS/A276 321SS/A276

Brass

C36000/B16

Alloy 400/b164
6 Packup Ring PTFE/D1710
7 O-ring Fluorocarbon FKM  , Buna N or Ethylene Propylene
8 Washer 316SS/A276
9 Stem 316SS/A276
10 Stem Tip PCTFE OR PEEK
11 Body 316SS/A182 316SS/A182 316SS/A182

Brass

C37700/B283

Alloy 400/B564
Lubricant Molybdenum disulfife-based
