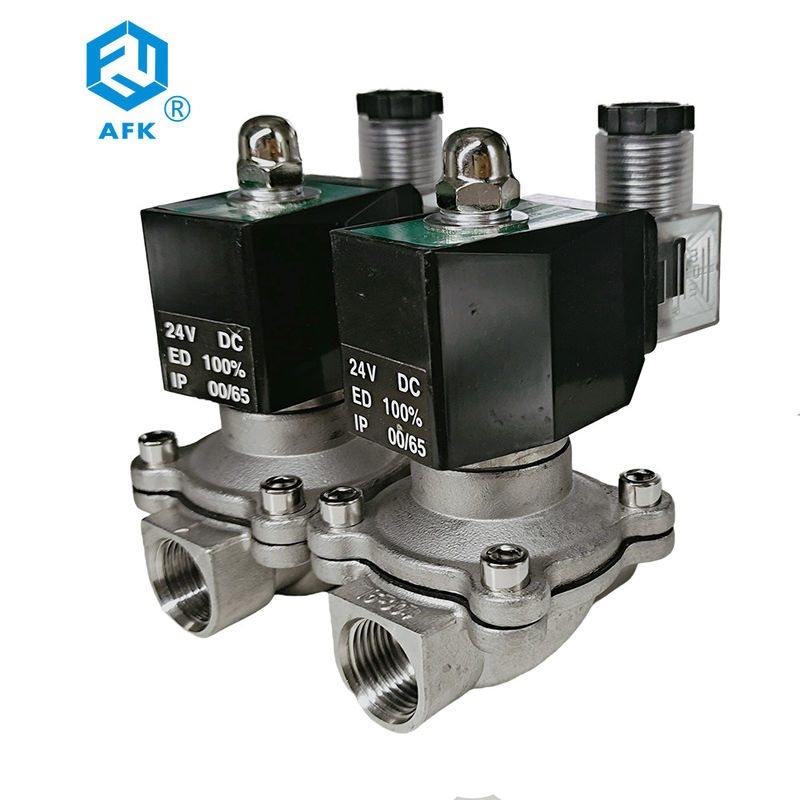

NBR Seal NPT Thread Water Solenoid Valve Normally Closed DC24V

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: 2W-15B

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Expotrt Packing

Delivery Time: 1WEEK

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 3000PC

Get Best Price
Contact Now
Specifications
Highlight:

NPT Thread Water Solenoid Valve

,

NBR Seal Water Solenoid Valve

,

DC24V Water Shut Off Valve

Pressure:
Medium Pressure,Low Pressure
Material:
Stainless Steel
Port Size:
2",3/4",1",1/2"
Temperature Of Media:
Normal Temperature,Medium Temperature,Low Temperature
Media:
Water
Application:
General
Standard Or Nonstandard:
Standard
Certification:
CE
Pressure:
Medium Pressure,Low Pressure
Material:
Stainless Steel
Port Size:
2",3/4",1",1/2"
Temperature Of Media:
Normal Temperature,Medium Temperature,Low Temperature
Media:
Water
Application:
General
Standard Or Nonstandard:
Standard
Certification:
CE
Description
NBR Seal NPT Thread Water Solenoid Valve Normally Closed DC24V

Prodcut Descripation

Model: 2W

Pipe Size: 3/8inch, 1/2inch, 3/4 inch, 1inch, 1-1/4inch, 1-1/2 inch, 2inch

Type: With timer

Thread: G, NPT

Medium: Air, water, oil, the neutral gas liquid

Function type: Normally Closed

Working Pressure: (water, air): 1~10kgf/cm2 (oil): 0~7kgf/cm2

Operating: Direct acting

Body material: Stainless steel 304

Seal: NBR (Medium temperature: -5-80 Degree Centigrade)

Voltage: AV220V/AC110V/DC24V

2-way normally closed solenoid valve, closed when de-energizes,open when energized.











Pipe size

3/8″

1/2″

3/4″

1″

1-1/4″

1-1/2″

2″

Orfice size

16mm

16mm

20mm

25mm

32mm

40mm

50mm

Cv value

4.8

4.8

7.6

12

24

29

48

Fluid
Air, water, ol, the neutral gas,liquid
Voltage
AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%
Operating
Pilot operating
Type
Normally closed
Body material
stainless teel 304
viscosity
(Below)20CST
Working pressure
Water, air;0-10bar oil:0-7bar

Material of seal

Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON



NBR Seal NPT Thread Water Solenoid Valve Normally Closed DC24V 0

Model No. A B C
2W-160-10B 69 57 107
2W-160-15B 69 57 107
2W-200-20B 73 57 115
2W-250-25B 98 77 125
2W-320-32B 115 87 153
2W-400-40B 124 94 162
2W-500-50B 168 123 187
