Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: 2W-15B
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC
Type:: |
SOLENOID VALVES, Normally Closed |
Customized Support:: |
OEM, ODM |
Application:: |
Tube & Pipe |
Power:: |
Solenoid |
Media:: |
Water |
Structure:: |
Diaphragm |
Working Pressure:: |
(water, Air ): 0-10bar, (Oil): 0-7bar |
Body Material:: |
Stainless Steel |
Type:: |
SOLENOID VALVES, Normally Closed |
Customized Support:: |
OEM, ODM |
Application:: |
Tube & Pipe |
Power:: |
Solenoid |
Media:: |
Water |
Structure:: |
Diaphragm |
Working Pressure:: |
(water, Air ): 0-10bar, (Oil): 0-7bar |
Body Material:: |
Stainless Steel |

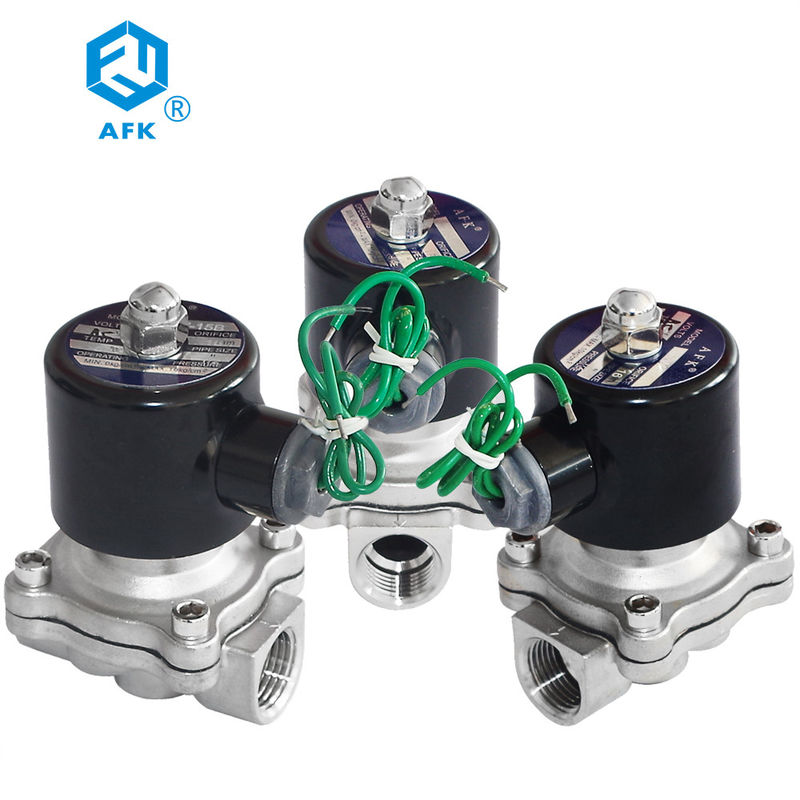

Product Description
| Pipe size | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Orfice size | 16mm | 16mm | 20mm | 25mm | 32mm | 40mm | 50mm |
| Cv value | 4.8 | 4.8 | 7.6 | 12 | 24 | 29 | 48 |
| Fluid | Air, water, ol, the neutral gas,liquid | ||||||
| Voltage | AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10% | ||||||
| Operating | Pilot operating | Type | Normally closed | ||||
| Body material | stainless teel 304 | viscosity | (Below)20CST | ||||
| Working pressure | Water, air;0-10bar oil:0-7bar | ||||||
| Material of seal | Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITON | ||||||
| Model HO. | A | B | C |
| 2W-160-10B | 69 | 57 | 107 |
| 2W-160-15B | 69 | 57 | 107 |
| 2W-200-20B | 73 | 57 | 115 |
| 2W-250-25B | 98 | 77 | 125 |
| 2W-320-32B | 115 | 87 | 153 |
| 2W-400-40B | 124 | 94 | 162 |
| 2W-500-50B | 168 | 123 | 187 |
