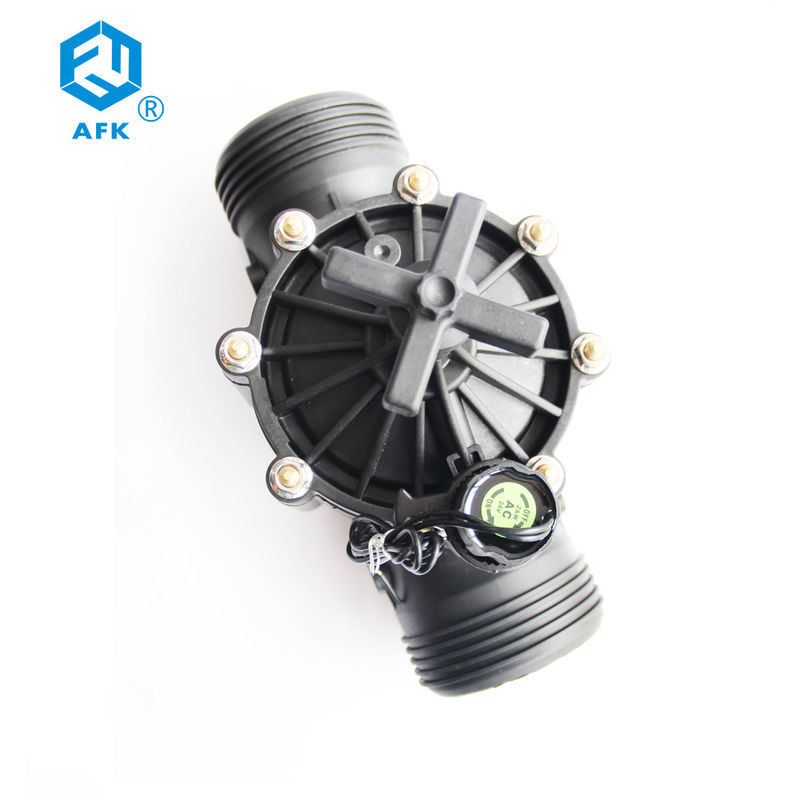

Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa

  • Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa
  • Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa
  • Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa
  • Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa
  • Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa
  • Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa
Place of Origin China
Brand Name AFK
Certification CE
Model Number 300P
Minimum Order Quantity 1
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Solenoid Port Size 3
Orifice Size 80mm Voltage DC Latching/9VDC/12VDC/ 24VDC/24VAC/110VAC/220VAC
Applicable Medium Water Standard Or Nonstandard Standard
Application General Type SOLENOID VALVES
Working Pressure 70-1400Kpa Thread G, Flange
High Light

Nylon Plastic Water Solenoid Valve

,

12V Agriculture Water Solenoid Valve

,

1400Kpa Waterproof Solenoid Valve
Leave a Message
Product Description

Product descripation

Description One

Description Two

Medium:Water

Temperature: Suitable water≤42℃, surroundings≤52℃
Application range: It is currently one of the most widely used electromagnetic valve in garden irrigation, large-scale garden lawn, stadium, farm, industrial dust and water treatment equipment.

 Model: 300PH
Pressure: 0.1~1.0Mpa
Connect size: 3"
Thread: G , Flange
Orifice size: 80mm
Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA
Self-holding type coil: DC6-20V, Pulse Width (20-500mSec)
Working model(+red&-black valve open)
(-red&-black valve closed)

Description Three

 DESIGN FEATURES

Material-body valve -nylon enclosed-NBR
Moving iron core-430F

Static iron core-430F
Sping-SUS304 Sub-magnetic ring-Copper
Water treatment solenoid, normally closed, coil AC24V, Self-holding type coil DC6-20V (Please specify when ordering)

1. Irrigation solenoid valve

2. Fit for stadium, farm, industrial dust and water treatment equipment.

3. Normally closed.

4.Pipe size 3".

5. Service voltage : AC220, AC110V, AC24V

6.Thread connnector :G, flange

7.Material-body valve -nylon



Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa 0

Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa 1



Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa 2   Power Current Amp Coil impedance 20C
    opening curent Holding current
DC9V 3 6W 560mA 400mA 240
DC12V 3.6W 420mA 300mA 410
DC24V 3 6W 252mA 180mA 1300



Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa 3   Power Current Amp Coil impedance 20C
    opening curent Holding current
AC24V 6.72W 0.41A . 0.28A 300
AC110V 3W 0.072A 0.049A 8400
|AC220V 3W 0.037A 0.025A 2.73Q



Nylon Plastic 12V Agriculture Water Solenoid Valve AFK 3 Inch 1400Kpa 4 Voltage range : 9-20VDC
Required capacitance : 4700u
Coil Resistance ; 6Ω
Coil Inductance : 12mH
Puse Width: 20-500m Sec
Working model: + red & black valve core lock position( valve opening)+ red & black release valve core lock position( valve closing)
