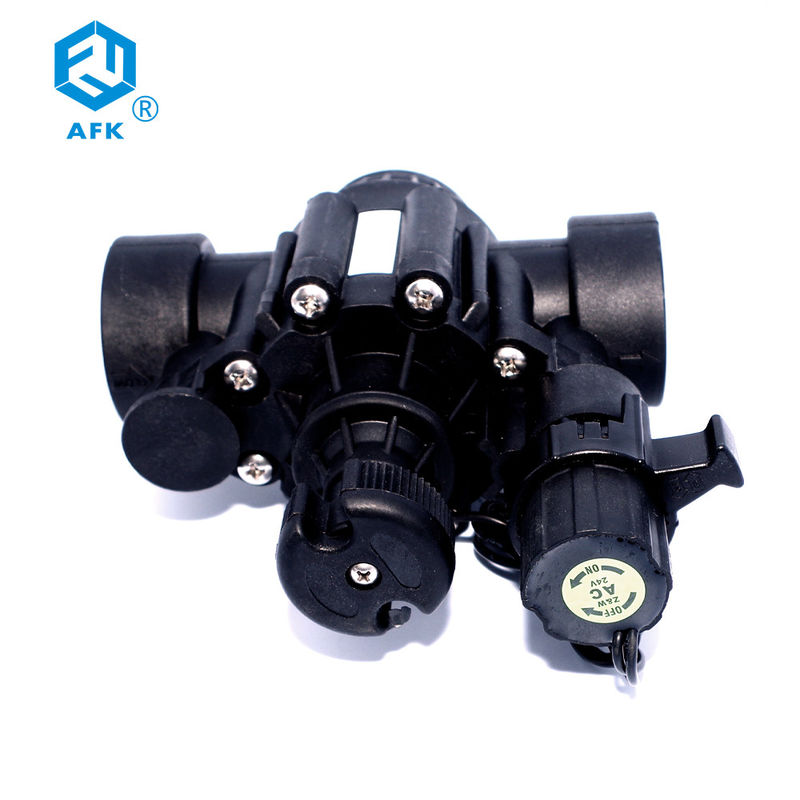

DC Latching Plastic 1.5in Water Solenoid Valve DC12V Irrigation Control
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature | Suitable Water≤42℃, Surroundings≤52℃ | Standard Or Nonstandard | Standard |
|---|---|---|---|
| Applicable Medium | Water | Pressure | 0.1~1.04Mpa |
| Orifice Size | 40mm | Thread | G |
| Voltage | DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V, DC9V | Structure | Pilot |
| Port Size | 1.5" | Media | Water |
| Material | Plastic | Power | Solenoid |
| Application | General | ||
| High Light | DC Latching Water Solenoid Valve,1.5in Water Solenoid Valve,Irrigation Control Plastic Solenoid Valve |
||
Product Description
Product Description
One |
Two |
|
Medium:Water Temperature: Suitable water≤42℃, surroundings≤52℃ Application range: It is currently one of the most widely used electromagnetic valve in garden irrigation, large-scale garden lawn, stadium, farm, industrial dust and water treatment equipment. |
Model: 150P Pressure: 0.1~1.04Mpa connect size: 1.5" Thread: G Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA Orifice size: 40mm Self-holding type coil: DC6-20V, Pulse Width (20-500mSec) working model(+red&-black valve open) (-red&-black valve closed)
|
Three |
|
|
Material-body valve -nylon enclosed-NBR Moving iron core-430F Static iron core-430F Sping-SUS304 Sub-magnetic ring-Copper |
|
|
DESIGN FEATURES 1. Irrigation solenoid valve 2. Fit for stadium, farm, industrial dust and water treatment equipment. 3. Normally closed. 4.Pipe size : 1.5 inch 5. Service voltage : DC Latching, AC110V, AC220V, AC24V, DC24V, DC12V, DC9V 6.Thread connnector :G 7.Material-body valve -nylon |
|
Power | Current Amp | Coil impedance 20C | ||
| opening curent | Holding current | ||||
| DC9V | 3 6W | 560mA | 400mA | 240 | |
| DC12V | 3.6W | 420mA | 300mA | 410 | |
| DC24V | 3 6W | 252mA | 180mA | 1300 | |
|
Power | Current Amp | Coil impedance 20C | ||
| opening curent | Holding current | ||||
| AC24V | 6.72W | 0.41A . | 0.28A | 300 | |
| AC110V | 3W | 0.072A | 0.049A | 8400 | |
| |AC220V | 3W | 0.037A | 0.025A | 2.73Q | |
|
Voltage range : 9-20VDC Required capacitance : 4700u Coil Resistance ; 6Ω Coil Inductance : 12mH Puse Width: 20-500m Sec Working model: + red & black valve core lock position( valve opening)+ red & black release valve core lock position( valve closing) |
