Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE

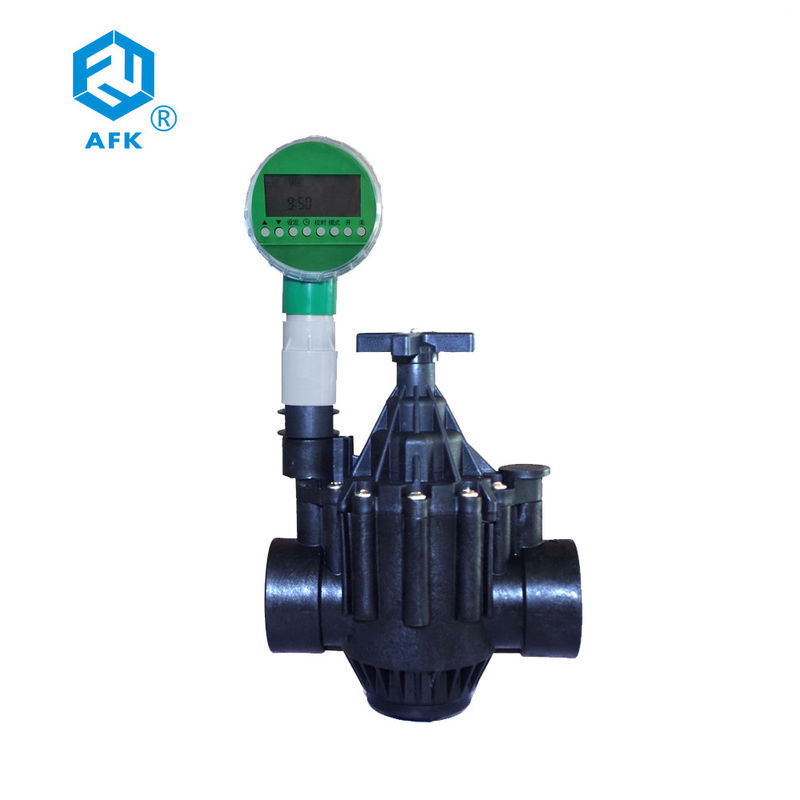

Model Number: 200P
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Supply Ability: 3000PC
Size: |
2" |
Thread: |
G |
Pressure: |
0.1~1.04Mpa |
Body Material: |
Nylon |
Voltage:: |
DC Latching/9VDC/12VDC/24VDC/24VAC/110VAC/220VAC |
Standard Or Nonstandard: |
Standard |
Orifice Size: |
50mm |
Applicable Medium: |
Water |
Type: |
Normally Closed |
Temperature: |
Suitable Water≤42℃, Surroundings≤52℃ |
Size: |
2" |
Thread: |
G |
Pressure: |
0.1~1.04Mpa |
Body Material: |
Nylon |
Voltage:: |
DC Latching/9VDC/12VDC/24VDC/24VAC/110VAC/220VAC |
Standard Or Nonstandard: |
Standard |
Orifice Size: |
50mm |
Applicable Medium: |
Water |
Type: |
Normally Closed |
Temperature: |
Suitable Water≤42℃, Surroundings≤52℃ |
Description One |
Description Two |
|
*Medium:Water |
*Model: 200P *Pressure: 0.1~1.0Mpa *Connect size: 2" *Thread: G *Orifice size: 50mm *Coil: AC220, AC110V, AC24V, 50/60HZ, 10VA *Self-holding type coil: DC6-20V, Pulse Width (20-500mSec) *Working model(+red&-black valve open) (-red&-black valve closed) |
Description Three |
|
| *Material-body valve -nylon enclosed-NBR *Moving iron core-430F *Static iron core-430F *Sping-SUS304 Sub-magnetic ring-Copper *Water treatment solenoid, normally closed, coil AC24V, Self-holding type coil DC6-20V (Please specify when ordering) |
|
|
Power | Current Amp | Coil impedance 20℃ | ||
| opening curent | Holding current | ||||
| DC9V | 3 6W | 560mA | 400mA | 24Ω | |
| DC12V | 3.6W | 420mA | 300mA | 41Ω | |
| DC24V | 3 6W | 252mA | 180mA | 130Ω | |
|
Power | Current Amp | Coil impedance 20℃ | ||
| opening curent | Holding current | ||||
| AC24V | 6.72W | 0.41A . | 0.28A | 30Ω | |
| AC110V | 3W | 0.072A | 0.049A | 840Ω | |
| |AC220V | 3W | 0.037A | 0.025A | 2.73Ω | |
|
Voltage range : 9-20VDC Required capacitance : 4700u Coil Resistance ; 6Ω Coil Inductance : 12mH Puse Width: 20-500m Sec Working model: + red & black valve core lock position( valve opening)+ red & black release valve core lock position( valve closing) |
|
|
