Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R190
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC
Max Inlet Pressure: |
25Mpa |
Inlet Connection: |
G5/8" - RH(F) |
Outlet Connection: |
M16-1.5RH(M) |
Material: |
Brass , Stainlees Steel |
Pressure Gauge: |
2" |
Max Inlet Pressure: |
25Mpa |
Inlet Connection: |
G5/8" - RH(F) |
Outlet Connection: |
M16-1.5RH(M) |
Material: |
Brass , Stainlees Steel |
Pressure Gauge: |
2" |
|

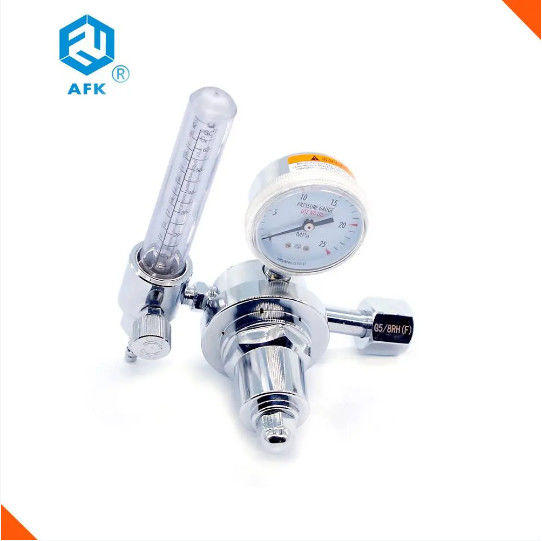

R190 series pressure regulator with flowmeter which is suitable for Industrial Manufacturing, Lab and MIG/TG gas shielded welding.
Co2, Argon, Nitrogen Pressure Regulator with Flowmeter |
| Structure | Material |
| Single Stage pressure reducing pressure structure Superity forged brass 2"pressure gauge outlet pressure : 0 . 35mpa (set well) Flow tube and the protective cover impact resistant composite material Standard : UL CE : EN334 : 2005 + A1 : 2009 |
Body : Brass , Stainlees Steel Bonnet : Brass , Stainlees Steel Diaphragm : Neoprene Stainer : Bronz |
| Application | |
| Non-corrosive gas Purge System Laboratory test Industrial Manufacture |
|
| Model | Medium | Oultet flowmeter | Inlet pressure gauge | Inlet connection | Outlet connection |
| R190C-25L | Co2 | 0-25LPM CO2 | 25Mpa | G5/8” -RH(F) | M16-1.5RH(M) |
| R190A-25L | Ar | 0-25LPM ARGON | 25Mpa | G5/8” -RH(F) | M16-1.5RH(M) |
| R190N-30L | N2 | 0-30LPM NITROGEN | 25Mpa | G5/8” -RH(F) | M16-1.5RH(M) |
