Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: R96
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC
Weight: |
2.35kgs |
Product Name: |
Pressure Regulator |
Body Material: |
Brass |
Certificate: |
CE |
Size: |
1/4"~1" |
Connection: |
OD,Female,Male |
Thread: |
BSPP BSPT NPT |
Working Medium: |
Gas,Oil |
Working Pressure: |
20 Bar |
Weight: |
2.35kgs |
Product Name: |
Pressure Regulator |
Body Material: |
Brass |
Certificate: |
CE |
Size: |
1/4"~1" |
Connection: |
OD,Female,Male |
Thread: |
BSPP BSPT NPT |
Working Medium: |
Gas,Oil |
Working Pressure: |
20 Bar |

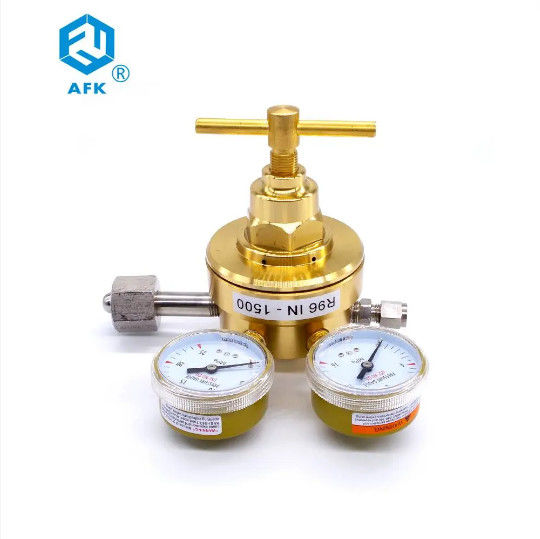

| R96 Seris piston pressure regulator, output stability , high flow, safte and reliable, designed for high outlet pressure.It's applied for manual manufacturing and laborary etc. |
| Model NO. | Medium | Max.Inlet pressure(Mpa) | Outlet pressure(Mpa) | Inlet pressure gauge(Mpa) | Outlet pressure gauge(Mpa) | Inlet connection | Outlet connection |
| R96X-750 | O2 | 20 | 0.35~5 | 25 | 10 | G5/8"-RH(F) | ψ 6 ferrule fitting |
| R96X-1500 | 20 | 0.7~10 | 25 | 16 | G5/8"-RH(F) | ψ 6 ferrule fitting | |
| R96X-3000 | 20 | 1.4~20 | 25 | 25 | G5/8"-RH(F) | ψ 6 ferrule fitting | |
| R96X-3000-577 | 25 | 1.4~20 | 40 | 40 | CGA577 | ψ 6 ferrule fitting | |
| R96X-701 | 35 | 1.4~20 | 40 | 40 | CGA701 | ψ 6 ferrule fitting | |
| R96IN-1500 | Ar , He , N2 | 20 | 0.07~10 | 25 | 16 | G5/8"-RH(F) | ψ 6 ferrule fitting |
| R96IN-3000 | 20 | 1.4~20 | 25 | 25 | G5/8"-RH(F) | ψ 6 ferrule fitting | |
| R96IN-3000-677 | 35 | 1.4~20 | 40 | 40 | CGA677 | ψ 6 ferrule fitting | |
| R96Q-1500 | Air | 20 | 0.35~5 | 25 | 10 | G5/8"-RH(F) | ψ 6 ferrule fitting |
| R96Q-3000 | 20 | 0.7~10 | 25 | 16 | G5/8"-RH(F) | ψ 6 ferrule fitting | |
| R96Q-3000-680 | 20 | 1.4~20 | 25 | 25 | CGA680 | ψ 6 ferrule fitting | |
| R96H-750 | H2 | 20 | 0.35~5 | 25 | 10 | W21.8-14LH | ψ 6 ferrule fitting |
| R96H-1500 | 20 | 0.7~10 | 25 | 15 | W21.8-14LH | ψ 6 ferrule fitting | |
| R96H-3000 | 20 | 1.4~20 | 25 | 25 | W21.8-14LH |
ψ 6 ferrule fitting |
|
|
|
|
FAQ
Q1. What products can you provide?
Re: High pressure regulator, cylinder gas regulator, ball valve, needle valve, compression fittings(connections).
Q2. Can you make the products based on our requests, such as connection, thread, pressure and so on?
Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements. Take a pressure regualtor for example, we can set the range of pressure gauge according actual working pressure, if the regulator is connected to a gas cylinder, we can add an adaptor such as CGA320 or CGA580 to connect the regulator with the cylinder valve.
Q3. What about the quality and price?
Re: Quality is very good. Price is not low but pretty reasonable at this quality level.
Q4. Can you provide samples to test? For free?
Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.
Q5. Can you operate OEM orders?
Re: Yes, OEM is supported though we also have our own brand named AFK.
Q6. What payment methods for chose?
Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 30%T/T, Western Union, L/C as deposit, and 70% balance paid before shipment.
Q7. How about the lead time?
Re: Usually, delivery time is 5-7 working days for sample, 10-15 working days for mass production.
Q8. How will you ship the goods?
Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
