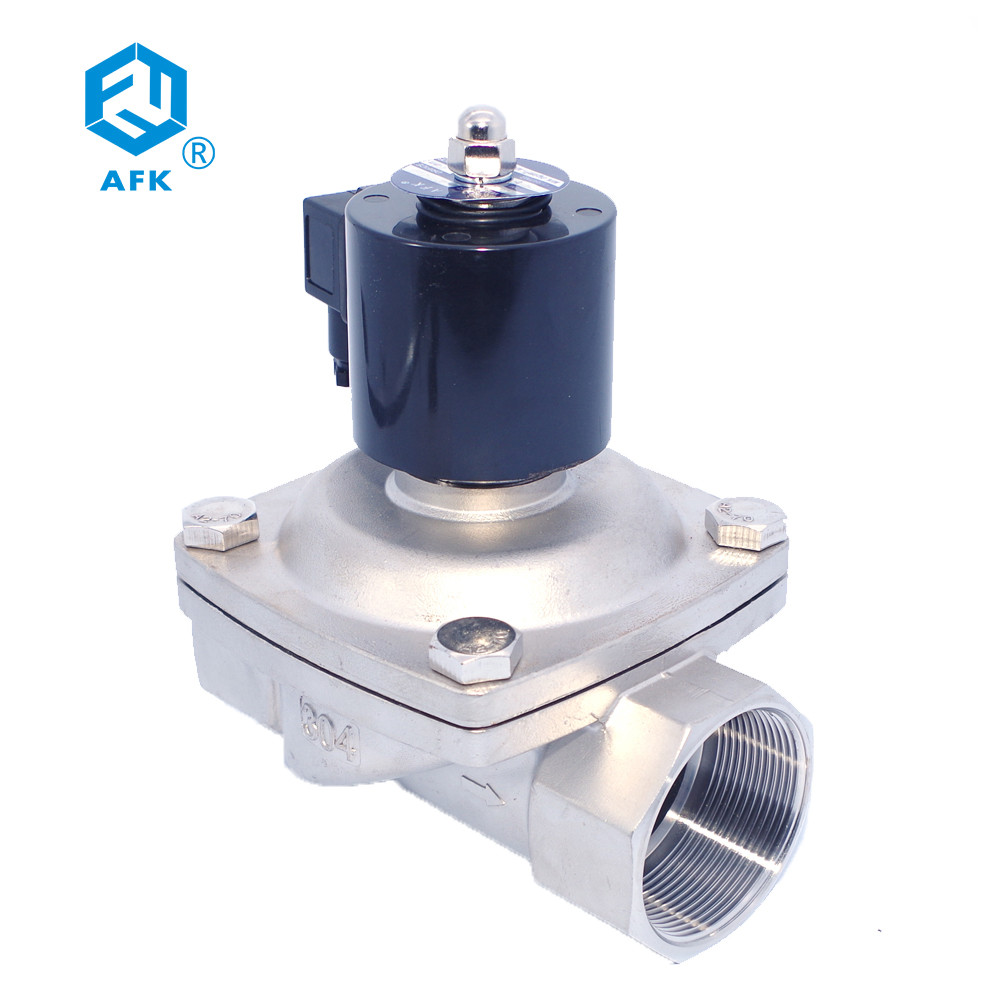

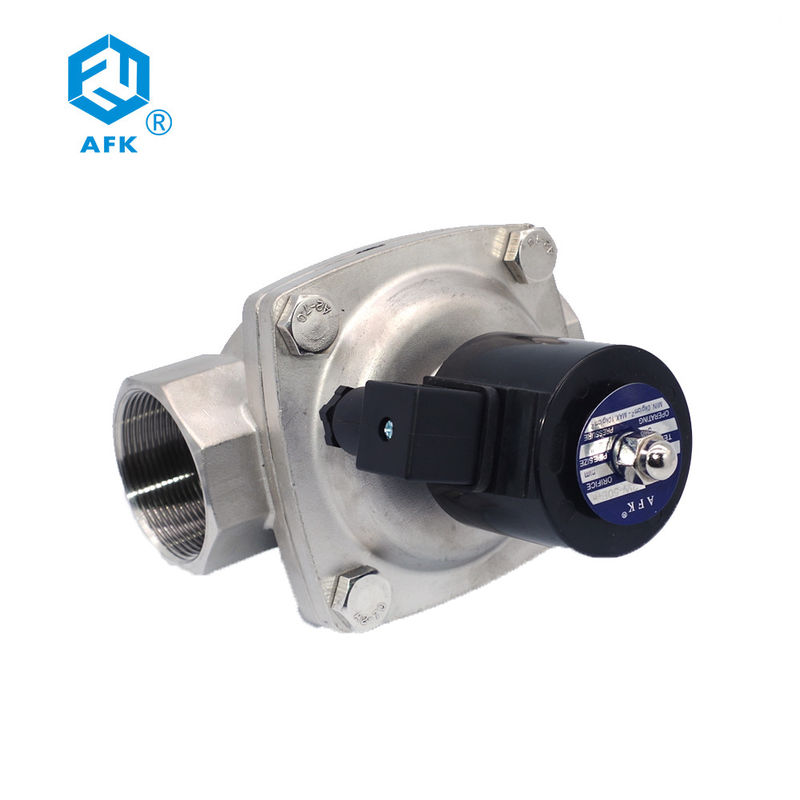

40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm

40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm
40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm 40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm 40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm 40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm 40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm

Large Image :  40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: 2W-40B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000PC

40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm

Description
Port Size: 1-1/2 Inch Medium: Water Oil Gas
Type: Normally Closed Standard Or Nonstandard: Standard
Orifice Size: 40mm Working Pressure: (water, Air ): 0-10bar, (Oil): 0-7bar
Seal: NBR Fluororubber EPDM Structure: Diaphragm
Flow Media: Water Temperature Of Media: Medium Temperature
High Light:

40mm Orifice Water Solenoid Valve

,

NBR Fluororubber Water Solenoid Valve

,

Diaphragm Stainless Steel Solenoid Valve







304 Stainless Steel 1-1/2 inch Normally Closed Water Solenoid Valve 220v

1) Model: 2W-40B
2) Pipe size: 1-1/2 inch
3) Orifice size : 40 mm
4) Connection: G , NPT
5) Medium: Air, water, oil
6)Working Pressure:
(water, air )0~10kgf/cm²(Oil) : 0~7 kgf/cm²
7)Body Material : Stainless steel
8)Seal:Below 80℃ use NBR,Below 120℃use EPDM,Below 150℃ use fluororubber

40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm 0





40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm 1 DESIGN FEATURES
1. Direct acting
2. Fit for air, water, oil , the neutral gas liquid.
3. Type: normally closed.
4.Pipe size from 1/8' to 2' .
5. Service voltage : AC380V, 220V,110V,24V DC24,12V
6.Thread connnector : G, NPT
7. Material: Stainless steel
8.Large flow.





Model NO. 2W-025-06 2W-025-08 2W-040-10 2W-160-10 2W-160-15
Pipe size 1/8' 1/4' 3/8' 1/2'
Orifice size 2.5mm 4mm 4mm 16mm 16mm
CV value 0.23 0.6 4.8 4.8
Fluid Air water oil , the neutral gasliquid
Service voltage AC380V AC220V AC110V AC24V DC24V DC12V ( allowt 10% )
Operating Direct acting Type
Body Material Stainless Steel viscosity
Working pressure ( Water, air ): 0~10 kgf/cm2 ( oil ): 0~7 kgf/m°
Material of seal Standard : below 80℃ fluid temperature use NBR , below 120℃ use EPDM, below 150℃ use fluororubber



Model NO. 2W-200-20 2W-250-25 2W-320-32 2W-400-40 2W-500-50
Pipe size 3/4' 1' 1 1/4'' 1 1/2'' 2''
Orifice size 20mm 25mm 32mm 40mm 50mm
CV value 7.6  12 24 29 48
Fluid Air water oil, the neutral gasliquid
Servise voltage AC380V AC220V AC110V AC24V DC24V DV12V ( allow ± 10%)
Operating Type Normally Closed
Body Material viscosity ( Below )20CST
Working pressure ( water, air ) :0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
Material of seal Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use fluororubber



40mm Orifice NBR Fluororubber Water Solenoid Valve Steel Diaphragm 2

Technical parameter


1) Model: 2W series
2) Pipe size: 1/8" to 2"
3) Orifice size : from 16mm to 50mm.

4) Medium: Air, water, oil
5)Working Pressure :
(water, air )0~10kgf/cm²
(Oil) : 0~7 kgf/cm²
6)Body Material : Stainless steel
7)Seal: NBR, EPDM, fluororubber
