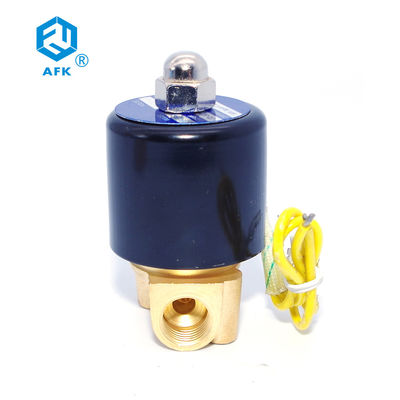

AFK Brass Water Solenoid Valve Air Water 1/4 Inch Normal Open NPT Male

Name: AFK Brass Water Solenoid Valve Air Water 1/4 Inch Normal Open NPT Male
Brand: Shenzhen Wofly Technology Co., Ltd.
SKU: 2W-08
Price: 331.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE

Model Number: 2W-08

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Expotrt Packing

Delivery Time: 1WEEK

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 5000PC

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                            AFK Brass Water Solenoid Valve, NBR Seal Water Solenoid Valve, NPT Male Water Flow Control Valve


Material:	Stainless Steel	Power:	Solenoid
Port Size:	1/4	Media:	Water,Gas,air,oil
Application:	General	Standard Or Nonstandard:	Standard
Type:	Normal Open	Voltage:	AC220V
Connection:	NPT,Male	Seal:	NBR
Certification:	CE

Material:	Stainless Steel
Power:	Solenoid
Port Size:	1/4
Media:	Water,Gas,air,oil
Application:	General
Standard Or Nonstandard:	Standard
Type:	Normal Open
Voltage:	AC220V
Connection:	NPT,Male
Seal:	NBR
Certification:	CE

Description

AFK Brass Water Solenoid Valve Air Water 1/4 Inch Normal Open NPT Male

Model NO.	2W-025-06	2W-025-08	2W-040-10	2W-160-10	2W-160-15
Pipe size	1/8'	1/4'	3/8'		1/2'
Orifice size	2.5mm	4mm	4mm	16mm	16mm
CV value	0.23		0.6	4.8	4.8
Fluid	Air water oil , the neutral gasliquid
Service voltage	AC380V AC220V AC110V AC24V DC24V DC12V ( allow ± 10% )
Operating	Direct acting				Type
Body Material	Brass				viscosity
Working pressure	( water, air ) : 0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
Material of seal	Standard : below 80℃ fluid temperature use NBR , below 120℃ use EPDM, below 150℃ use fluororubber

Model NO.	2W-200-20	2W-250-25	2W-320-32	2W-400-40	2W-500-50
Pipe size	3/4'	1'	1 1/4''	1 1/2''	2''
Orifice size	20mm	25mm	32mm	40mm	50mm
CV value	7.6	12	24	29	48
Fluid	Air water oil, the neutral gasliquid
Servise voltage	AC380V AC220V AC110V AC24V DC24V DV12V ( allow ± 10%)
Operating	Type	Normally Closed
Body Material	viscosity	( Below )20CST
Working pressure	( water, air ) :0~10 kgf/cm² ( oil ) : 0~7 kgf/m²
Material of seal	Standard : below 80℃ fluid temperature use NBR, below 120℃ use EPDM, below 150℃ use fluororubber
