Product Details
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: ZCT
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 1WEEK
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000PC
Standard Or Nonstandard: |
Standard |
Size: |
1/2" |
Operation: |
Normally Closed |
Body Material: |
Brass/Stailess Steel |
Product Name: |
ZCT |
Working Pressure: |
0.2-0.1Mpa |
Applicable Medium: |
Gas |
Connection: |
NPT Thread, G Thread |
Structure: |
Diaphragm |
Power: |
Solenoid |
Application: |
General |
Standard Or Nonstandard: |
Standard |
Size: |
1/2" |
Operation: |
Normally Closed |
Body Material: |
Brass/Stailess Steel |
Product Name: |
ZCT |
Working Pressure: |
0.2-0.1Mpa |
Applicable Medium: |
Gas |
Connection: |
NPT Thread, G Thread |
Structure: |
Diaphragm |
Power: |
Solenoid |
Application: |
General |

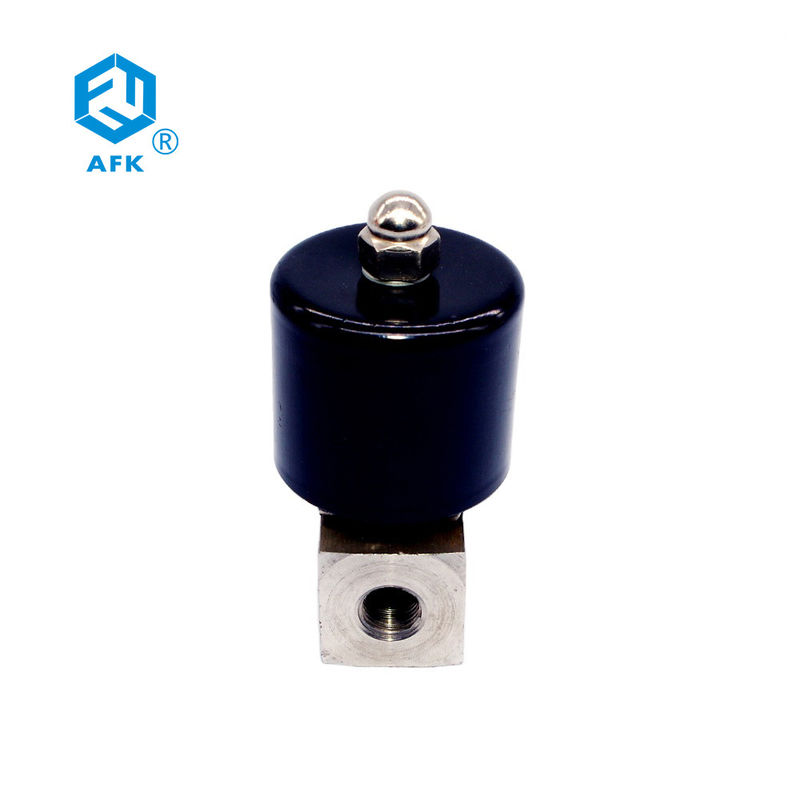

Product Specification:
Brand : AFK
2 Position 2way solenoid valve
Type : Normally closed
Body material : Stainless Steel
Max pressure : 12 bar
Ambient temperature : 0℃~65℃(F) , 0℃~80℃(H)
Voltage : AC220V 50/60HZ DC24V
Seal with VITON
| Model no. | long | wide | high | Technical parameters | |
| Project | Standard | ||||
| ZCT-6 G1/4 | 50 | 50 | 95 | Media | the neutral gas liquld weakly acidic and basic gas |
| ZCT-6 G3/8 | 50 | 50 | 95 | Operation | ZCT-6 Direct-acting ZCT-15Pilot type |
| ZCT-6 G1/2 | 50 | 50 | 95 | Type | Normal close |
| ZCT-15 G1/2 | 61 | 50 | 108 | Media pressure | 0.2-0.1Mpa |
| ZCT-20 G3/4 | 75 | 50 | 115 | Media temperature | ≤150℃ |
| ZCT-25 G1" | 75 | 50 | 115 | Ambient temperature | -10~60℃ |
| Install way | horizontal | ||||
| Selection of voltage | AC380V 220 110 36 24 DC24 12 | ||||
| Application | General |
| Material | Stainless Steel, Brass |
| Pressure | Low Pressure |
| Media | Gas |
| Type | normally Open |
| Place of Origin | Guangdong, China (Mainland) |
| Brand Name | AFK |
| Model Number | ZCT-6 G1/2" |
|
|
