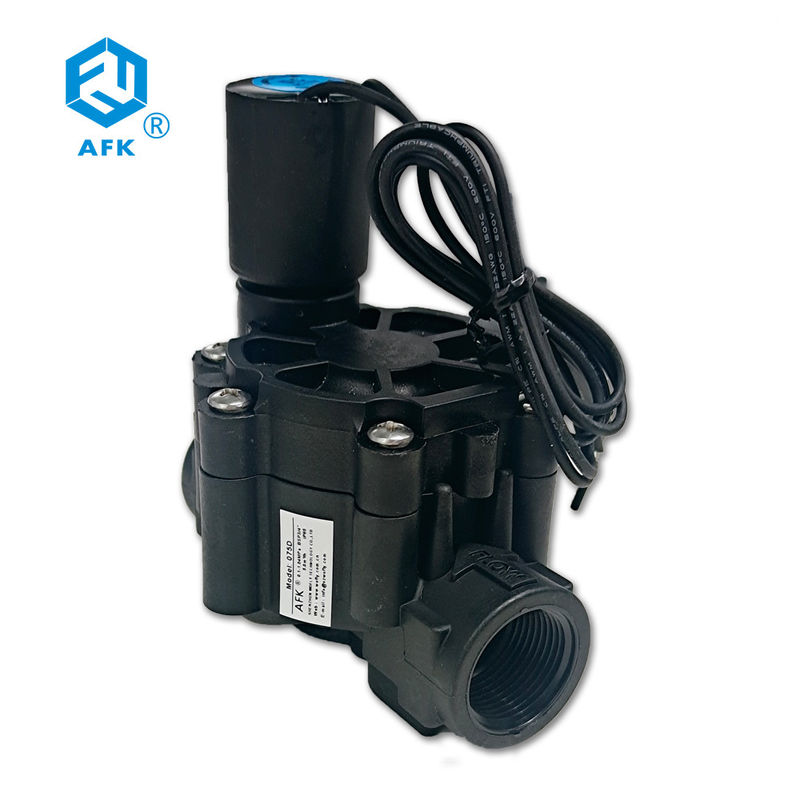

075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture

  • 075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture
  • 075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture
Place of Origin China
Brand Name AFK
Certification CE
Model Number 075D
Minimum Order Quantity 1~10
Price Negotiable
Packaging Details Expotrt Packing
Delivery Time 1WEEK
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Pressure Low Pressure Material Plastic
Power Solenoid Port Size 3/4",1"
Temperature Of Media ≤53℃ ，≤80℃ Media Water
Application Irrigation Standard Or Nonstandard Standard
Product Name Water Solenoid Valve Voltage AC220V
Working Pressure 0.1-1.0mpa Seal NBR,EPDM
Certification CE
High Light

AC220V Irrigation Water Solenoid Valve

,

075D Irrigation Water Solenoid Valve

,

Lawn Agriculture Plastic Solenoid Valve
Leave a Message
Product Description
item
value
Warranty
1 years
Type
SOLENOID VALVES
Certification
CE
Customized support
OEM, ODM
Place of Origin
China
Guangdong
Brand Name
AFK
Model Number
075D
Application
General
Temperature of Media
Low Temperature, Medium Temperature, Normal Temperature
Power
Solenoid
Media
Water
Port Size
3/4" , 1"
Structure
Gate
Product name
075D Irrigation Solenoid Valve
Material
nylon
Connection
Male Thread ,BSP ,NPT
Standard or Nonstandard
Standard
Flow
075D , 5.0m3/h
Pressure
0.1-1.0MPa
Working Temperature
≤53℃ ,≤80℃
Diameter
DN20 , DN25
medium
Water
coil
AC220V , AC110 , AC24V , DC24V , DC12V , DC Latching



Features of Irrigation Water Solenoid Valve

1. Pilot diaphragm structure, nylon valve body material
2. Double filtration to prevent electromagnetic core blockage
3. Totally enclosed electromagnetic coil, waterproof
4. It has slow closing function to prevent water hammer from damaging the system



Material of Irrigation Water Solenoid Valve

Valve body Nylon
Seals NBR / EPDM
Moving iron core 430F
Static core 430F
Spring SUS304
Magnetic separation ring red copper



Scope of application
At present, it is one of the most widely used solenoid valves in garden irrigation. It is used in large area lawn, stadium, agricultural factory dust removal and water treatment equipment.


075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture 0



075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture 1



tpye Size(mm)
lengih width height
075D 112 82 120
100D 112 83 120





Packing & Dilvery

075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture 2 075D 12V AC220V Irrigation Water Solenoid Valve For Lawn Agriculture 3
