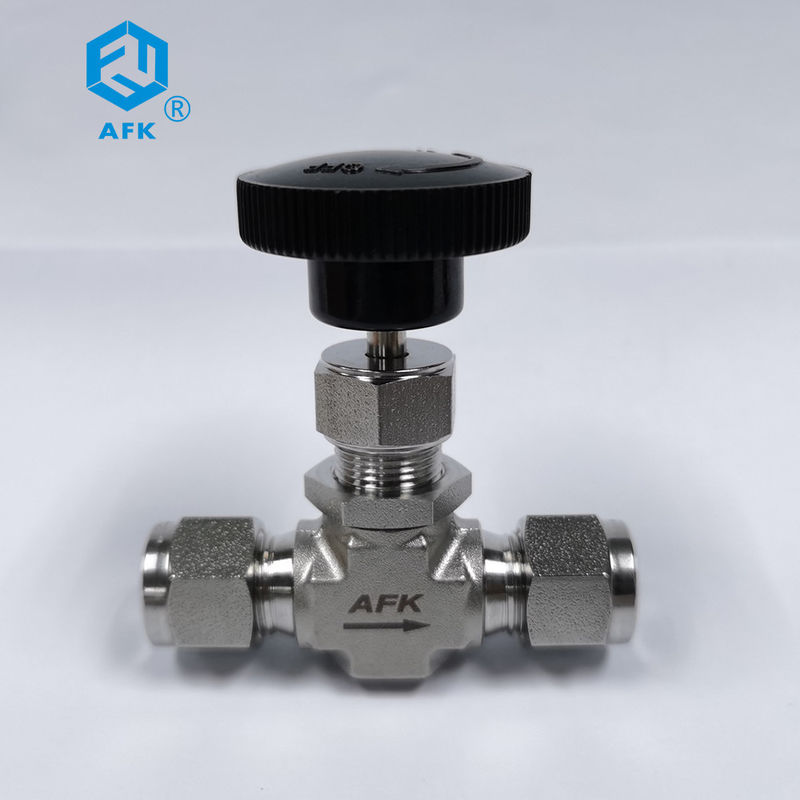

PTFE High Pressure Needle Valve EN3.1 6000psi Stainless Steel

Product Details

Place of Origin: China

Brand Name: AFK

Certification: CE, Rohs, EN3.1

Model Number: NV

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: plastic bag+color box

Delivery Time: 3-5days

Payment Terms: T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 3000pcs/week

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    PTFE High Pressure Needle Valve, EN3.1 High Pressure Needle Valve, 6000psi Stainless Steel Needle Valve


Material:	Ss316/ss304	Working Pressure:	3000psi, 6000psi
Application:	Industry Equipment,chemical And Pharmaceutical Reaction	Type:	OD, NPT F, NPT M
Type Of Handle:	Black, "-" Type	Name:	High Pressure Needle Valve

Material:	Ss316/ss304
Working Pressure:	3000psi, 6000psi
Application:	Industry Equipment,chemical And Pharmaceutical Reaction
Type:	OD, NPT F, NPT M
Type Of Handle:	Black, "-" Type
Name:	High Pressure Needle Valve

Description

PTFE High Pressure Needle Valve EN3.1 6000psi Stainless Steel

Technical Parameters

Brand: AFK

Size:3mm, 6mm, 8mm, 10mm, 12mm, 1/8", 1/4", 3/8", 1/2"

End Connection: O.D.(ferrule)

Body Material:ss316

Seal Material: PTFE

Features:

Maximum working pressure up to 5000 psig (344 bar)

Live-Loaded Packing System

Packing nut enables easy external adjustments

Straight, angle and cross patterns

Softseat stem with PCTFE tip available

Pls send us following infomation if you would like to know the price:

1. What media is used for?

2. What is working pressure?

3. What size do you need? 3mm, 1/4 or others?

4. What type of end connection? NPT F, NPT F, NPT M

6. If you need angle type, pls kindly specify.

7. How many do you need?

Or just send us oder code e.g. NV-04 OD

Type		Conn./Size	Orifice	Dimensions(mm)
Type		Inlet/Outiet	In.	A	B	C	D	E	F
AFK TUBE END	Fractional	1/8''	0.08	59.8	29.9	72.7	36	24.2	11.5
		1/4''	0.18	61.7	30.9	72.7	36	24.2	11.5
		3/8''	0.24	67.5	33.8	86.5	50	28.4	13.0
		1/2''	0.24	71.8	35.9	86.5	50	28.4	11.0
	Metric	4mm	0.08	60.2	30.1	72.7	36	24.2	11.5
		6mm	0.18	61.1	30.6	72.7	36	24.2	11.5
		8mm	0.18	63.7	31.9	72.7	36	24.2	11.5
		10mm	0.24	67.8	33.9	86.5	50	28.4	13.0
		12mm	0.24	71.4	35.7	86.5	50	28.4	13.0
MALE THREAD	Fractional	1/8''	0.16	46.0	23.0	72.7	36	24.2	11.5
		1/4''	0.16	50.0	25.0	72.7	36	24.2	11.5
		3/8''	0.24	56.0	28.0	86.5	50	28.4	13.0
FEMALE THREAD	Fractional	1/8''	0.16	46.0	23.0	72.7	36	24.2	11.5
		1/4''	0.16	46.0	23.0	72.7	36	24.2	11.5
		3/8''	0.24	52.0	23.0	86.5	50
