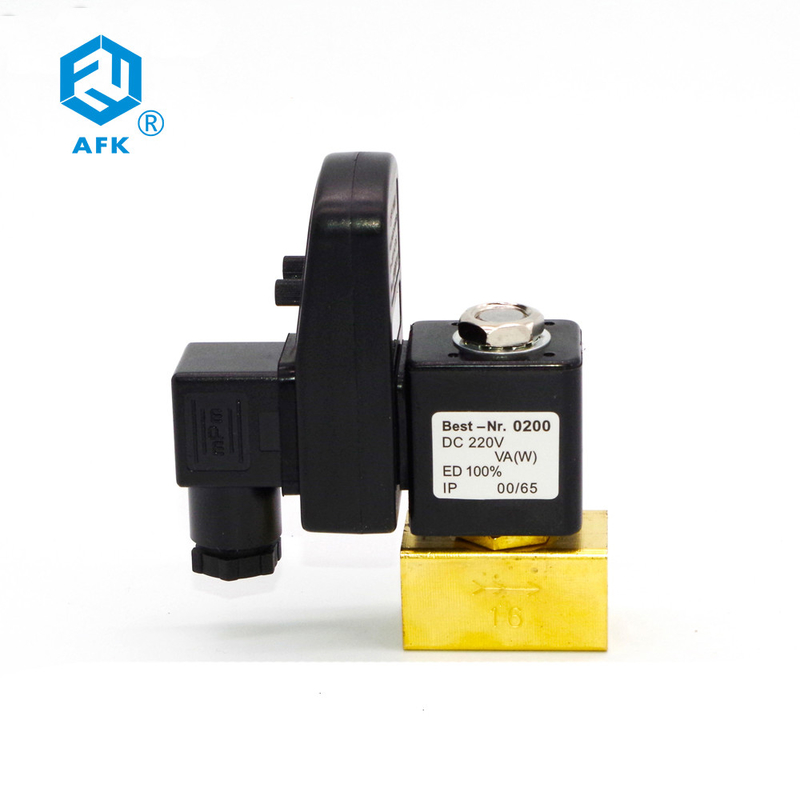

Medium Pressure Water Solenoid Valve OPT-B AC240v 1/2 Inch Drain

Medium Pressure Water Solenoid Valve OPT-B AC240v 1/2 Inch Drain
Medium Pressure Water Solenoid Valve OPT-B AC240v 1/2 Inch Drain Medium Pressure Water Solenoid Valve OPT-B AC240v 1/2 Inch Drain

Large Image :  Medium Pressure Water Solenoid Valve OPT-B AC240v 1/2 Inch Drain

Product Details:
Place of Origin: China
Brand Name: AFK
Certification: CE
Model Number: OPT-B
Payment & Shipping Terms:
Minimum Order Quantity: 1~10
Price: Negotiable
Packaging Details: Expotrt Packing
Delivery Time: 10Day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200PC

Medium Pressure Water Solenoid Valve OPT-B AC240v 1/2 Inch Drain

Description
Pressure: Medium Pressure Material: Brass
Power: Solenoid Port Size: 1/2"
Media: Water,Gas,air,oil Application: General
Standard Or Nonstandard: Standard Voltage: AC240V
Certification: CE
High Light:

Medium Pressure Water Solenoid Valve

,

1/2 Inch Drain Water Solenoid Valve

,

AC240V Brass Solenoid Valve

Scope of application
It is widely used in compressed air system components such as air compressor, cooler, separator, dryer and air storage tank. The discharge time and interval can be adjusted as needed.



Timer OPT

Timer interval (off):0.5-45 minutes

Emission interval (on):0.5-10 second

Manual test button:switch

Power supply:24-240v AC/DC 50/60Hz(voltage 380VAC special can order)

The current consumption of the large 4mA

The ambient temperature :-40℃-+60℃

Protection class:IP65

The shell material:Flame retardant ABS plastic

The electrical connection DIN43650A

Indicator light LED indicator to indicate the power on to off

Design standard VDE 01 10C

Valve OPT



Voltage range +/-10%

Install site arbitrarily

Type two position two way direct acting solenoid valve

In/out interface size: 1/2"

The maximum working pressure 16 bar

The minimum/maximum ambient temperature 2℃-55℃

The maximum temperature 90℃

Body valve forging brass 5.0 mm orifice size

Insulation level

Heat group H class IP65

Voltage:24-230v AC/DC 50/60Hz

(voltage380v ac special can order)



Medium Pressure Water Solenoid Valve OPT-B AC240v 1/2 Inch Drain 0
