Manual Operated Pneumatic Operated Diaphragm Valve High Pressure For Large Flow

  • Manual Operated Pneumatic Operated Diaphragm Valve High Pressure For Large Flow
  • Manual Operated Pneumatic Operated Diaphragm Valve High Pressure For Large Flow
  • Manual Operated Pneumatic Operated Diaphragm Valve High Pressure For Large Flow
  • Manual Operated Pneumatic Operated Diaphragm Valve High Pressure For Large Flow
  • Manual Operated Pneumatic Operated Diaphragm Valve High Pressure For Large Flow
  • Manual Operated Pneumatic Operated Diaphragm Valve High Pressure For Large Flow
Place of Origin China
Brand Name AFK
Certification CE
Model Number WV4H
Minimum Order Quantity 1
Price 107.71USD
Packaging Details Expotrt Packing
Delivery Time 30Day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 3000PC

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Stainless Steel,SS316L Media Gas
Power Manual Pressure High Pressure
Structure Diaphragm Application Industrial
Standard Or Nonstandard Standard Type Diaphragm Type
Body Material Stainless Steel Size 1/4,1/2
Product Name Manual Operated Diaphragm Valve
High Light

Manual Operated pneumatic operated diaphragm valve

,

High Pressure pneumatic operated diaphragm valve

,

Large Flow High Pressure Diaphragm Valve
Leave a Message
Product Description

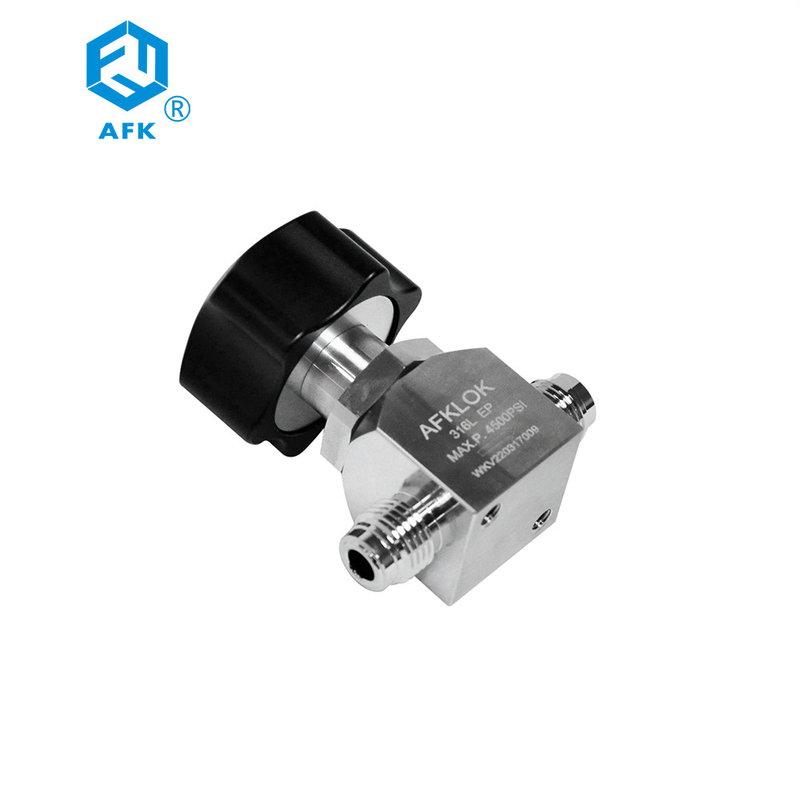

For Large Flow AFK High Pressure Vacuum Stainless Steel Seal Manual Operated Diaphragm Valve Corrosion Resistance

Features of Manual Operated Diaphragm Valve

1. The maximum working pressure can reach 31mpa

2. Fully wrapped valve seat design, with superior anti expansion and pollution ability

3. Nickel cobalt alloy diaphragm has higher durability and corrosion resistance

4. The standard roughness is Ra0 twenty-five μ M (grade BA), or electropolishing Ra0 thirteen μ M (EP grade) optional

5. Helium test leakage rate ＜ 1x10-9 STD cm3 / S

6. Pneumatic actuators are available

7. The service life of pneumatic valve can reach 100000 times



1/4in Pneumatic Pressure Control Valve Low Pressure 150psi Diaphragm Type 0

1/4in Pneumatic Pressure Control Valve Low Pressure 150psi Diaphragm Type 1 Item Part Description Material
1 handle Aluminium
2 Actuator Aluminium
3 Valve Stem 304 SS
4 Bonnet S17400
5 Bonnet Nut 316 SS
6 Button Brass
7 Diaphragm Nickel cobalt alloy
8 Valve Seat PCTFE
9 Valve Body 316L SS



WV4H
6L TW 4 MR4 Executive type Cleaning process
body material TW:inch tube SWL Joint 4:1/4" Outlet type Outlet size handle Standard (grade BA)
6L:316L SS MR:Male thread MCR joint   Same as entrance C:Pneumatic normally closed O2:Oxygen cleaning
6LV:316L VAR FR: Female thread MCR joint   O:Pneumatic normally open EP:Ultra high purity (EP grade)
6LW:316L VIM-VAR TF:inch OD joint
  FNS:NPT Female



Flow data:Air@ 21℃(70℉) Water@16℃(60℉)
1 pressure drop of maximum air pressure bar(psig) air(I/min) water(I/min)
2 0.68(10) 64 2.4
3 3.4(50) 170 5.4
4 6.8(100) 300 7.6



1/4in Pneumatic Pressure Control Valve Low Pressure 150psi Diaphragm Type 2

basic order number port type and size size in.(mm)
A B C L
WV4H-6L-TW4- 1/4"-Tube-w 0.44(11.2) 0.3(7.6) 1.12(28.6) 1.81(45.9)
WV4H-6L-FR4- 1/4"-FA-MCR 0.44(11.2) 0.86(21.8) 1.12(28.6) 2.85(72.3)
WV4H-6L-MR4- 1/4"-MA-MCR1/4 0.44(11.2) 0.58(14.9) 1.12(28.6) 2.24(57.0)
WV4H-6L-TF4- OD 0.44(11.2) 0.70(17.9) 1.12(28.6) 2.54(64.4)



1/4in Pneumatic Pressure Control Valve Low Pressure 150psi Diaphragm Type 3

basic order number port type and size size in.(mm)
A B C D L
WV4H-6L-TW4- 1/4"-Tube-w 0.44(11.2) 0.3(7.6) 1.12(28.6) 0.3(7.6) 1.74(44.2)
WV4H-6L-TF4- 1/4"OD 0.44(11.2) 0.70(17.9) 1.12(28.6) 0.3(7.6) 2.54(64.4)
WV4H-6L-FR4- 1/4"-FA-MCR 0.44(11.2) 0.86(21.8) 1.12(28.6) 0.86(21.8) 2.78(70.6)
WV4H-6L-MR4- 1/4"-MA-MCR1/4 0.44(11.2) 0.62(15.7) 1.12(28.6) 0.62(15.7) 2.24(57.0)



1/4in Pneumatic Pressure Control Valve Low Pressure 150psi Diaphragm Type 4

FAQ



Q. Are you manufacturer?

A. Yes, we are manufacturer.



Q.What is lead time?

A.3-5days. 7-10 days for 100pcs



Q. How do I order?

A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours



Q. Do you have any certificates?

We have CE certificate.



Q. What materials do you have?

aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
