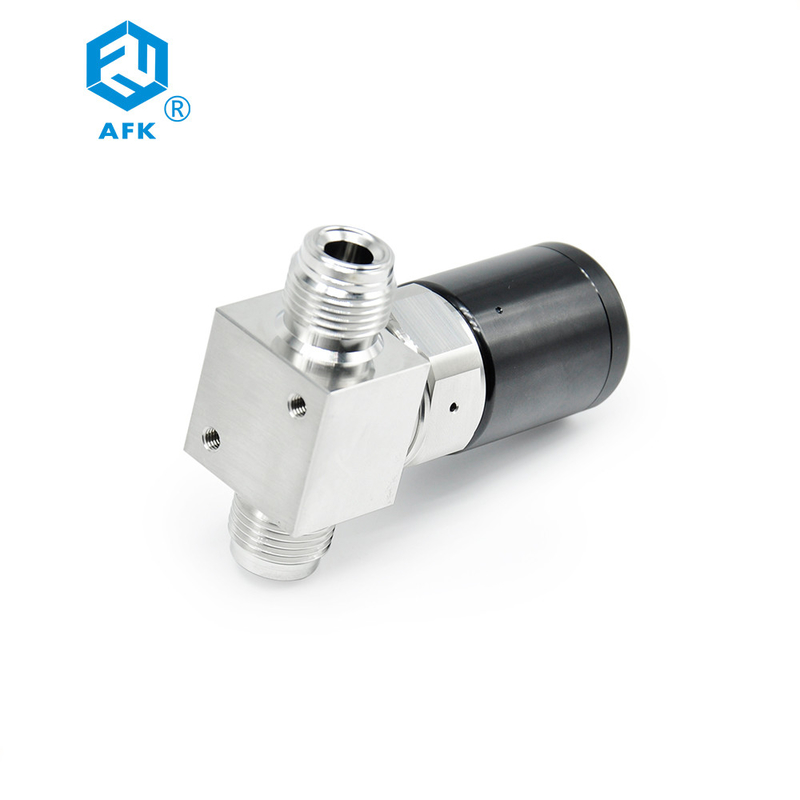

VCR Pneumatic Diaphragm Valve Ultrahigh Purity 316 EP Stainless Steel Diaphragm Valve
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel | Media | Gas |
|---|---|---|---|
| Power | Pneumatic | Pressure | High Pressure |
| Structure | Ball | Temperature Of Media | High Temperature |
| Application | Industrial | Standard Or Nonstandard | Standard |
| Type | Pneumatic | Body Material | 316L,Stainless Steel |
| Connection Type | Thread | Size | 1/2 |
| High Light | VCR Pneumatic Diaphragm Valve,Ultrahigh Purity Pneumatic Diaphragm Valve,316 EP Stainless Steel Diaphragm Valve |
||
Product Description
Product Description of VCR diaphragm valves
Features of Pneumatic diaphragm valves
1.Metal to metal sealing provides leak free service from vacuum to high pressure
2.The internal volume is small, and the flow channel can be completely purged
3.Fully wrapped valve seat design, with superior anti expansion and anti pollution ability
4.Nickel cobalt alloy diaphragm has higher durability and corrosion resistance
5.The standard roughness is Ra0 twenty-five μ M (grade BA), or electropolishing Ra0 thirteen μ M (EP grade) optional
6.Helium test leakage rate ＜ 1 × 10-9 std cm3/s
7.Pneumatic actuators are available
8.The service life of pneumatic valve can reach 3 million times
Technical Data of Gas diaphragm valves
| Port Size | 1/4", 3/8" |
| Flow Coefficient (Cv) | 0.27 |
| Inner Diameter | 0.16 in. (4.1 mm) |
| Maximum Working Pressure | 10 bar (150 psig) |
| Pneumatic actuator working pressure | 4.2~6.2 bar (60~90 psig) |
| working Temperature | PCTFE:-23~65℃(-10~150℉) |
| PFA:-23~150℃(-10~302℉) | |
|
Leakage rate (helium) |
Internal ≤1×10-9 mbar l/s |
| External ≤1×10-9 mbar l/s |
Features of VCR pneumatic diaphragm valve
| Diaphragm sealing | VCR pneumatic diaphragm valves use a flexible diaphragm to create a seal between the valve body and the fluid flow path. This diaphragm can be made of various materials, including Teflon, EPDM, and Viton, to suit different process fluids and temperatures. |
| Pneumatic actuation |
These valves are controlled by a pneumatic actuator, which opens and closes the valve by applying air pressure to the diaphragm. |
| High-purity design | VCR pneumatic diaphragm valves are often used in high-purity applications where contamination must be minimized. They are designed with smooth surfaces, minimal dead space, and easy-to-clean materials. |
| Leak-tight performance | The diaphragm sealing mechanism of VCR pneumatic diaphragm valves provides excellent leak-tight performance, making them suitable for critical applications where even small leaks can be problematic. |
| Modular design | VCR pneumatic diaphragm valves are often designed with a modular construction, which allows for easy replacement of individual components and simplified maintenance. |
| Wide range of sizes | These valves are available in a wide range of sizes, from small-scale laboratory valves to larger industrial valves. |
| Versatile applications | VCR pneumatic diaphragm valves can be used for a variety ofapplications, including in pharmaceuticals, biotechnology, semiconductor manufacturing, food and beverage, and chemical processing. |
| Compatibility with VCR fittings | VCR pneumatic diaphragm valves are designed to be compatible with VCR fittings, which are widely used in high-purity applications for their leak-tight, metal-to-metal sealing. |
| Low maintenance | Due to their simple design and modular construction, VCR pneumatic diaphragm valves require low maintenance and have a long service life. |
 |
|
|
Item | Part Description | Material |
| 1 | handle | Aluminium | |
| 2 | Actuator | Aluminium | |
| 3 | Valve Stem | 304 SS | |
| 4 | Bonnet | S17400 | |
| 5 | Bonnet Nut | 316 SS | |
| 6 | Button | 316 SS | |
| 7 | Diaphragm | Nickel cobalt alloy | |
| 8 | Valve Seat | PCTFE or PFA | |
| 9 | Valve Body | 316L SS Or 316L VAR 316L VIM-VAR |
High-purity diaphragm valves of Selection table
| 6L | TW | 4 | MR | 4 | C | A | EP |
| Valve body material | Input Type | Input size | Output Type | Output size | Actuator Type | Valve seat | Cleaning Process |
| 6L:316L SS | TW:Inch Tube Pipe Butt Weld | 4:1/4" | TW:Inch Tube Pipe Butt Weld | 4:1/4" | Handle | PCTFE | Standard (BA level) |
| 6LV:316L VAR | MR:Integral male thread MCR Fitting | 6:3/8" | MR:Integral male thread MCR Fitting | 6:3/8" | C:Pneumatic normally closed | A:PFA | O2:Clean for Oxygen |
| 6LVW:316L VIM-VAR | FR:Female thread MCR connector | FR:Female thread MCR connector | O:Pneumatic normally open | EP:Ultra-high purity (EP grade) | |||
| TF:Inch tube fittings | TF:Inch tube fittings |
FAQ
Q1: what kinds of stainless steel are most commonly used?
A1. 201 stainless steel is suitable for use in dry explosion environment. It is easy to rust in water
A2. 304 stainless steel, outdoor or humid environment, strong corrosion resistance and acid resistance.
A3. 316 stainless steel, molybdenum added, more corrosion resistance and pitting corrosion resistance, especially suitable for seawater and chemical media.
Q2. how can we guarantee quality?
A1: Strictly in accordance with the ISO9001 standard, the products have passed the
A2. CE/ROHS/EN certification Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3. what can you buy from us?
A3. pressure regulator,pressure gauges, Tube fittings,solenoid valve,Needle valve,check valve ect.
Q4. What’s the MOQ?
A4. All products are in stock, MOQ is 1 pcs, Generally according to the requirements of customers, no matter.
Q5. what services can we provide?
A1. Accepted Delivery Terms: FOB,CIF,EXW；
A2. Accepted Payment Currency:USD,CNY;
A3. Accepted Payment Type: T/T,L/C,Western Union;
A4. Language Spoken:English,Chinese
Q6. How long will the shipment take?
A6. If it's express, it will take 3~7days.If it by sea,it will take about 20~30days.
Q7. If any question when I got the product,how to solve it?
A7. The product have warranty and we will offer you the online or video technical support.
