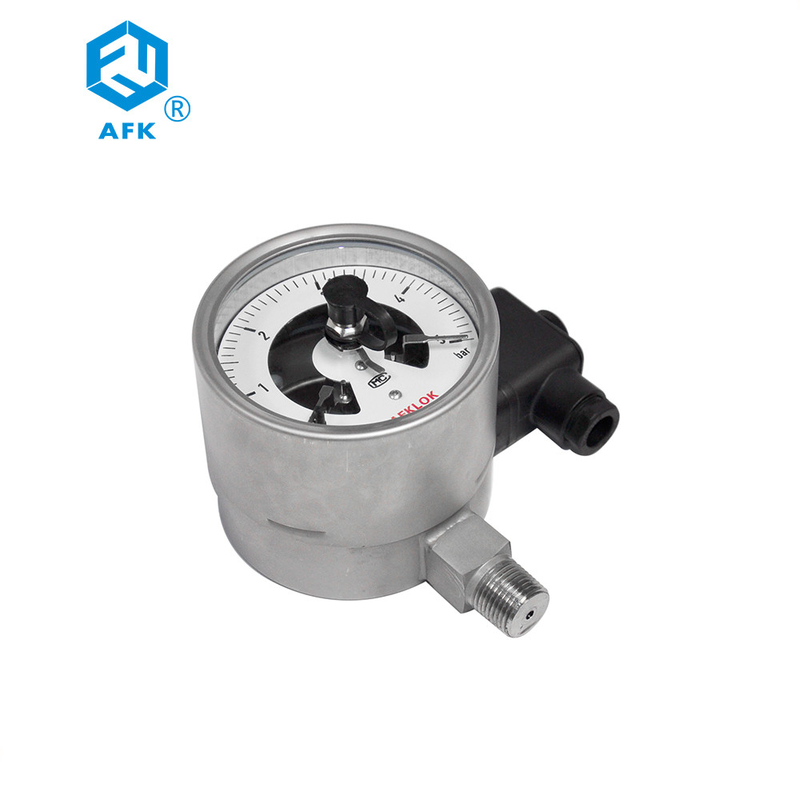

AFK 5bar Electric Contact Pressure Gauge Stainless Steel 304 100mm Male Connection
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel 304 | Connection | Male |
|---|---|---|---|
| Color | Sliver/Yellow | Warranty | 1 Year |
| Pressure | 5bar | ||
| High Light | 5bar Electric Contact Pressure Gauge,hosman connector Electric Contact Pressure Gauge,SS304 electric contact manometer |
||
Product Description
AFK Stainless Steel 304 100mm Pressure 0-5bar Electric Contact Pressure Gauge Manufacturer
Composition of instrument
The instrument is composed of measuring system, indicating system, magnetic auxiliary contact device, shell, adjusting device and junction box (plug base).
Working principle of instrument
Based on the spring in the measurement system, under the pressure of the measured medium, the end of the spring tube is chased to produce corresponding spring deformation displacement. With the help of the pull rod, it is transmitted and amplified by the gear transmission mechanism, and the measured value is indicated on the dial one by one by the indication on the fixed gear (together with the contact). At the same time, when it contacts with the contact (upper or lower limit) on the set pointer (dynamic breaking or dynamic closing), the circuit in the control system can be disconnected or connected, so as to achieve the purpose of automatic control and sending signal alarm.
Product Description
| Installation form | Stainless steel anti-corrosion model | Stainless steel shockproof model | Specifications |
| Radial direct installation | YTX-100BF | YTNX-100BF | -0.1~250Mpa |
| YTX-150BF | YNTX-150BF | ||
| Axial direct installation | YTX-100BFZ | YTNX-100BFZ | -0.1~250Mpa |
| YTX-150BFZ | YTNX-150BFZ | ||
| Axial embedding | YTX-100BFZT | YTNX-100BFZT | -0.1~250Mpa |
| YTX-150BFZT | YTNX-150BFZT | ||
|
The range specifications are as follows: (unit: MPa) Pressure vacuum: -0.1~0/-0.1~0.06/-0.1~0.15/-0.1~0.3/-0.1~0.5/-0.1~0.9/-0.1~1.5/-0.1~2.4/-0.1~3.9MPa Pressure:0~0.1/0~0.16/0~0.25/0~0.4/0~0.6/0~1/0~1.6/0~2.5/0~4/0~6/0~10/0~16/0~25/0~40/0~60/0~100/0~160/0~250MPa |
|||
Specification
The electric contact pressure gauge is usually used together with the corresponding electrical devices (such as relay and contactor). When the pressure reaches the set value, close the contact and close the electronic circuit, so as to achieve the purpose of automatic control and signaling.
| Model/Size | B(mm) | D(mm) | do(mm) | d1(mm) | d(mm) | |
| With mounting ring | Nominal diameter 100mm | 140 | 132 | 114 | 100 | M20X1.5 Or other specifications |
| Nominal diameter 150mm | 150 | 178 | 166 | 149 | ||
| Model/Size | A(mm) | B(mm) | C(mm) | D(mm) | d(mm) | |
| Without mounting ring | Nominal diameter 100mm | 141 | 82 | 100 | 101 | M20X1.5 Or other specifications |
| Nominal diameter 160mm | 200 | 120 | 98 | 160 | ||
| Specification and Material | |
| Executive Standard | JB/T9273-1997 |
| measuring range | minimum 0.1Mpa Minimum vacuum-0.1-0Mpa |
| maximum250Mpa Maximum pressure vacuum -0.1+3.9Mpa | |
| Indication accuracy | φ100/150mm,1.6%. FS (1.0%. FS Optional) |
| Setting accuracy | 4.0%. FS |
| Number of contacts | 1 or 2 |
| working voltage | 380V. AC or 220V .DC |
| Maximum current | 1A |
| maximum power | 30VA |
| Temperature effect | When the set point error changes no more than 20 ± 5 ℃, the service temperature deviates by 0.6% / 10 ℃ |
| Degree of protection | IP65 IP67 |
| Instrument glass | Ordinary glass Safety glass |
| contact material | Silver nickel alloy |
| Shell material | 304.SS |
| Wetted material | 304.SS/316.SS Optional |
| Movement material | 304.SS |
| Electrical connector | Standard hosman connector |
| Connection size | M20X1.5 or On request |
| Electrical interface | M20X1.5 |
Precautions for use of pressure gauge
1. The instrument must be installed vertically. During installation, it should be tightened with a 17mm wrench. The case should not be forced to twist. Collision should be avoided during transportation. 2. The instrument should be used at the ambient temperature of - 40-70 ℃. 3. The vibration frequency in the working environment is less than 25Hz, and the amplitude is no more than 1mm. 4. During use, due to the high ambient temperature, the indicated value of the instrument does not return to zero or the indicated value exceeds the difference, the sealing banana plug on the upper part of the case can be cut off to connect the inner cavity of the instrument with the atmosphere. 5. The application range of the instrument shall be between 1 / 3 and 2 / 3 of the upper limit. 6. Isolation device shall be added when measuring corrosive medium, possible crystallization medium and medium with high viscosity. 7. The instrument shall be verified frequently (at least once every three months). If any fault is found, it shall be repaired in time. 8. If the instrument is found invalid or damaged due to poor manufacturing quality within half a year from the date of delivery, the company shall be responsible for repairing or replacing it.
