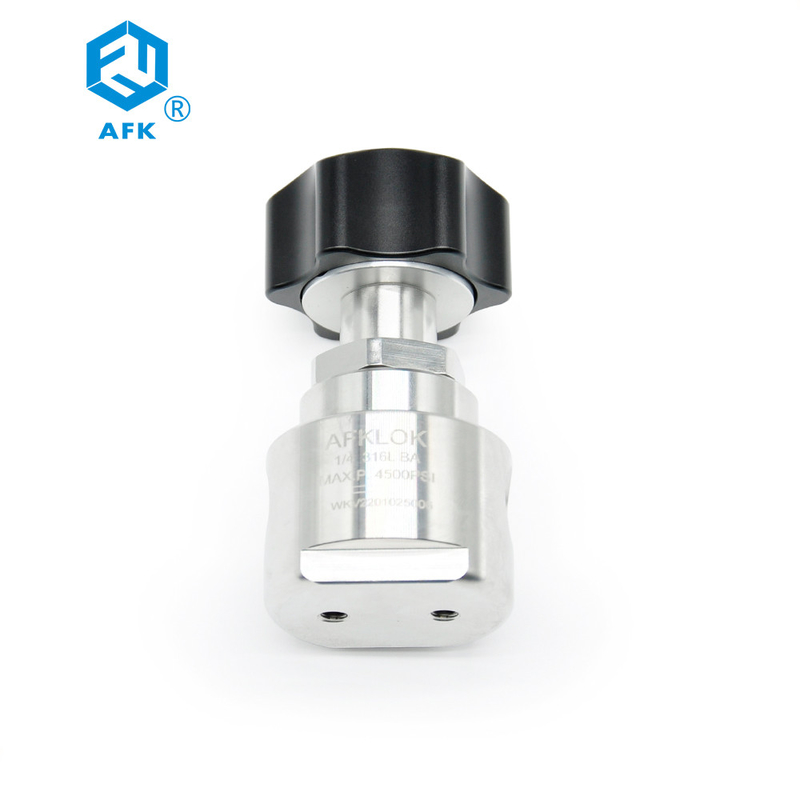

High Pressure 316 Stainless Steel Manual Diaphragm Valves 1/4in Female Thread
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | General | Temperature Of Media | Normal Temperature |
|---|---|---|---|
| Power | Manual | Media | Gas |
| Structure | Diaphragm | Port Size | 1/4"NPT F |
| Product Name | Manual Diaphragm Valves | Body Material | SS316L |
| Material | 316 Stainless Steel | Size | 1/4" |
| Pressure | 4500PSI | MOQ | 1pcs |
| High Light | Stainless Steel Manual Diaphragm Valves,High Pressure 316 Diaphragm Valves,1/4in Female Thread Diaphragm Valves |
||
Product Description
Product Description of Manual Diaphragm Valves
1. The maximum working pressure can reach 31mpa
2. Fully wrapped valve seat design, with superior anti expansion and pollution ability
3. Nickel cobalt alloy diaphragm has higher durability and corrosion resistance
4. The standard roughness is Ra0 twenty-five μ M (grade BA), or electropolishing Ra0 thirteen μ M (EP grade) optional
5. Helium test leakage rate ＜ 1x10-9 STD cm3 / S
6. Pneumatic actuators are available
7. The service life of pneumatic valve can reach 100000 times
Specification of Manual Diaphragm Valves
|
Item | Part Description | Material |
| 1 | handle | Aluminium | |
| 2 | Actuator | Aluminium | |
| 3 | Valve Stem | 304 SS | |
| 4 | Bonnet | S17400 | |
| 5 | Bonnet Nut | 316 SS | |
| 6 | Button | Brass | |
| 7 | Diaphragm | Nickel cobalt alloy | |
| 8 | Valve Seat | PCTFE | |
| 9 | Valve Body | 316L SS |
| Flow data:Air@ 21℃(70℉) Water@16℃(60℉) | |||
| 1 | pressure drop of maximum air pressure bar(psig) | air(I/min) | water(I/min) |
| 2 | 0.68(10) | 64 | 2.4 |
| 3 | 3.4(50) | 170 | 5.4 |
| 4 | 6.8(100) | 300 | 7.6 |
| basic order number | port type and size | size in.(mm) | |||
| A | B | C | L | ||
| WV4H-6L-TW4- | 1/4"-Tube-w | 0.44(11.2) | 0.3(7.6) | 1.12(28.6) | 1.81(45.9) |
| WV4H-6L-FR4- | 1/4"-FA-MCR | 0.44(11.2) | 0.86(21.8) | 1.12(28.6) | 2.85(72.3) |
| WV4H-6L-MR4- | 1/4"-MA-MCR1/4 | 0.44(11.2) | 0.58(14.9) | 1.12(28.6) | 2.24(57.0) |
| WV4H-6L-TF4- | OD | 0.44(11.2) | 0.70(17.9) | 1.12(28.6) | 2.54(64.4) |
