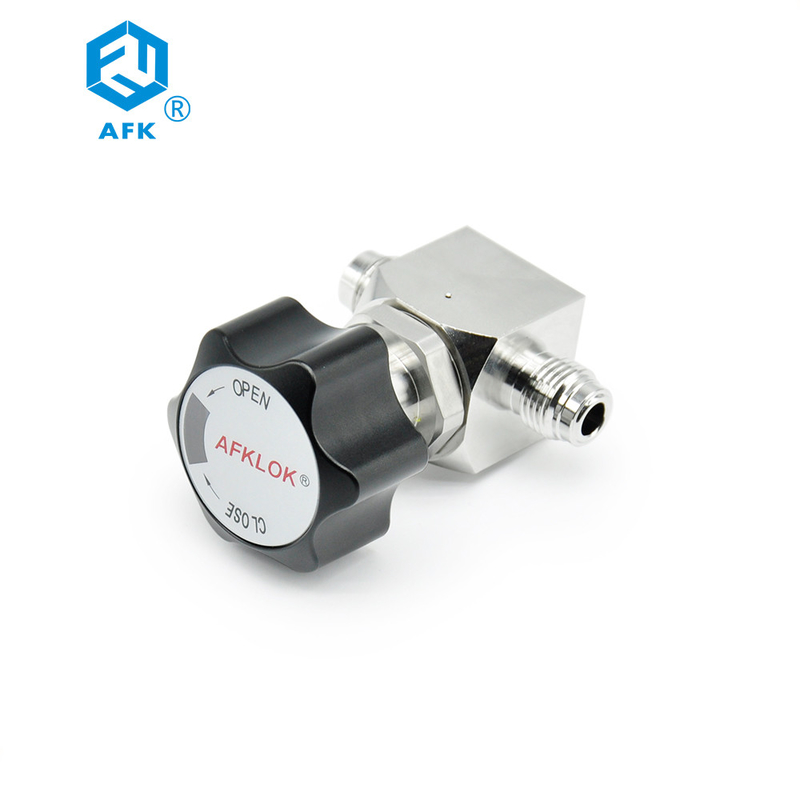

EP 316 Stainless Steel Manual Diaphragm Valve VCR Ultrahigh Purity Valve
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel,SS316L | Media | Gas |
|---|---|---|---|
| Power | Manual | Pressure | High Pressure |
| Structure | Ball | Temperature Of Media | High Temperature |
| Application | Laboratory | Standard Or Nonstandard | Standard |
| Body Material | 316L,Stainless Steel | Size | 1/4" |
| High Light | EP 316 Manual Diaphragm Valve,VCR Manual Diaphragm Valve,Ultrahigh Purity Stainless Steel Diaphragm Valve |
||
Product Description
Product Description
Features of Manual High pressure diaphragm valve
The maximum working pressure can reach 31mpa
Fully wrapped valve seat design, with superior anti expansion and anti pollution ability
Nickel cobalt alloy diaphragm has higher durability and corrosion resistance
The standard roughness is Ra0 twenty-five μ M (grade BA),or electropolishing Ra0 thirteen μ M (EP grade) optional
Helium test leakage rate ＜ 1 × 10-9std cm3/s
Optional pneumatic actuator
The service life of pneumatic valve can reach 100000 times
Manual high-pressure diaphragm valve selection table
|
6L
|
TW | 4 | MR | 4 | C | EP |
| body material | Input Type | Input size | Output Type | Output size | Actuator Type | Cleaning Process |
| 6L:316L SS | TW:Inch Tube SWL | 4:1/4" | TW:Inch Tube SWL | 4:1/4" | Handle | Standard (BA level) |
| 6LV:316L VAR | MR:Integral male thread MCR Fitting | MR:Integral male thread MCR Fitting | C:Pneumatic normally closed | O2:Clean for Oxygen | ||
| 6LVW:316L VIM-VAR | FR:Female thread MCR Fitting | FR:Female thread MCR Fitting | O:Pneumatic normally open | EP:Ultra-high purity (EP grade) | ||
| TF:Inch tube fittings | TF:Inch tube fittings | |||||
| FNS:NPT Female thread | FNS:NPT Female thread |
| Basic order number | Port type and size | size in.(mm) | |||
| A | B | C | L | ||
| WV4H-6L-TW4- | 1/4" Tube -W | 0.44 (11.2) | 0.30 (7.6) | 1.12 (28.6) | 1.81 (45.9) |
| WV4H-6L-FR4- | 1/4" FA-MCR | 0.44 (11.2) | 0.86 (21.8) | 1.12 (28.6) | 2.85 (72.3) |
| WV4H-6L-MR4- | 1/4" MA-MCR1/4" | 0.44 (11.2) | 0.58 (14.9) | 1.12 (28.6) | 2.24 (57.0) |
| WV4H-6L-TF4- | OD | 0.44 (11.2) | 0.70 (17.9) | 1.12 (28.6) | 2.54 (64.4) |
