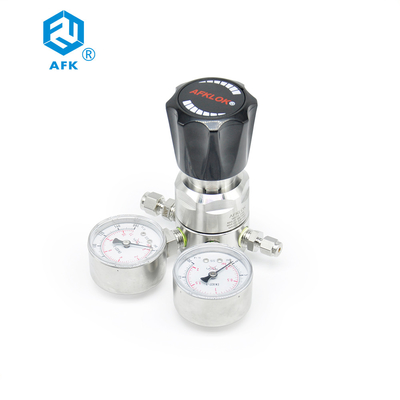

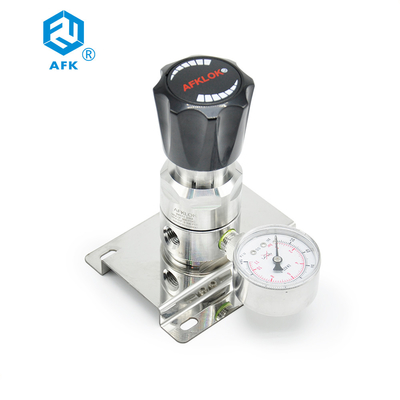

OEM Hydrogen Air Ammonia Natural Gas Pressure Regulator Single Stage Special Gas High Pressure Gas Regulator Valve
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| CV | 0.09 | External Flow Rate | ≤1×10-9 Mbar L/s |
|---|---|---|---|
| Working Temperature | -40℃～+74℃(-40℉～+165℉) | Material | Stainless Steel 316L |
| Weight | 1 KG | Max Inlet Pressure | 600psig, 3500psig |
| Outlet Pressure Range | 0~30, 0~60, 0~100, 0~150, 0~250, 0~500psig | Connection Type | 1/4 NPTF |
Product Description
Product Description:
Our stainless steel pressure regulator is a reliable and cost-effective choice for a variety of applications. It features 1/4 NPT High Pressure Regulator, Cv0.09 High Pressure Regulator and OME ODM High Pressure Regulator 1/4 NPT with an Internal Flow Rate of ≤1×10-7 Mbar L/s, Max Inlet Pressure of 600psig and 3500psig, and an External Flow Rate of ≤1×10-9 Mbar L/s. It is made from durable stainless steel and comes with a 1-year warranty for added peace of mind. The stainless steel pressure regulator is easy to install and maintain for optimal performance and long-term reliability. It is an ideal choice for a wide range of industrial and commercial applications.
Features:
- Product Name: Stainless Steel Pressure Regulator
- External Flow Rate: ≤1×10-9 Mbar L/s
- Working Temperature: -40℃～+74℃(-40℉～+165℉)
- Outlet Pressure Range: 0~30, 0~60, 0~100, 0~150, 0~250, 0~500psig
- Internal Flow Rate: ≤1×10-7 Mbar L/s
- CV: 0.09
- 316ss pressure regulator
- High Pressure Regulator
- ammonia gas pressure regulator 1/4 VCR
Technical Parameters:
| Parameter | Description |
|---|---|
| Connection Type | 1/4 NPTF |
| Material | Stainless Steel 316L |
| Internal Flow Rate | ≤1×10-7 Mbar L/s |
| External Flow Rate | ≤1×10-9 Mbar L/s |
| Outlet Pressure Range | 0~30, 0~60, 0~100, 0~150, 0~250, 0~500psig |
| Warranty | 1 Year |
| CV | 0.09 |
| Working Temperature | -40℃～+74℃(-40℉～+165℉) |
| Weight | 1 KG |
| Max Inlet Pressure | 600psig, 3500psig |
| Manual Diaphragm Valve | OME ODM 316ss pressure regulator |
Applications:
Nitrogen dioxide (NO2) gas pressure regulators are used in various application areas where precise control of gas pressure is required. Here are some common application areas where NO2 gas pressure regulators are used:
Laboratory and Research Facilities,Industrial Processes,Environmental Monitoring,Gas Cylinder Systems,HVAC Systems,Semiconductor Industry.
Packing and Shipping:
Packaging and Shipping for Stainless Steel Pressure Regulator:
The Stainless Steel Pressure Regulator is securely packaged in an appropriate box and shipped via a reliable courier or freight service.
The packaging is designed to protect the product from any damage during transportation and ensure safe delivery.
The tracking number is provided to the customer for monitoring the delivery status.
FAQ:
Q1: What is the Brand Name of the Stainless Steel Pressure Regulator?
A1: The Brand Name of the Stainless Steel Pressure Regulator is AFKLOK.
Q2: What is the Model Number of the Stainless Steel Pressure Regulator?
A2: The Model Number of the Stainless Steel Pressure Regulator is R11.
Q3: Where is the Place of Origin of the Stainless Steel Pressure Regulator?
A3: The Place of Origin of the Stainless Steel Pressure Regulator is China.
Q4: What is the Certification of the Stainless Steel Pressure Regulator?
A4: The Certification of the Stainless Steel Pressure Regulator is CE.
Q5: What is the Minimum Order Quantity of the Stainless Steel Pressure Regulator?
A5: The Minimum Order Quantity of the Stainless Steel Pressure Regulator is 1.
