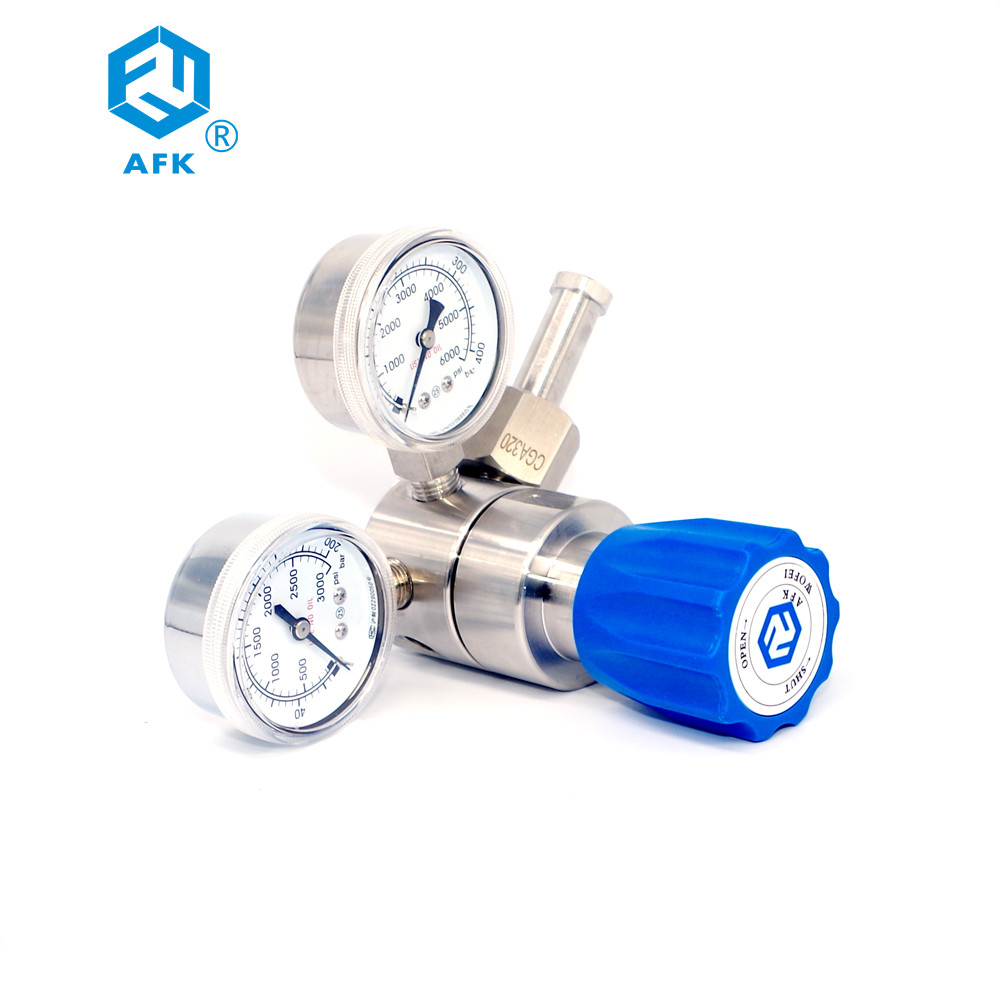

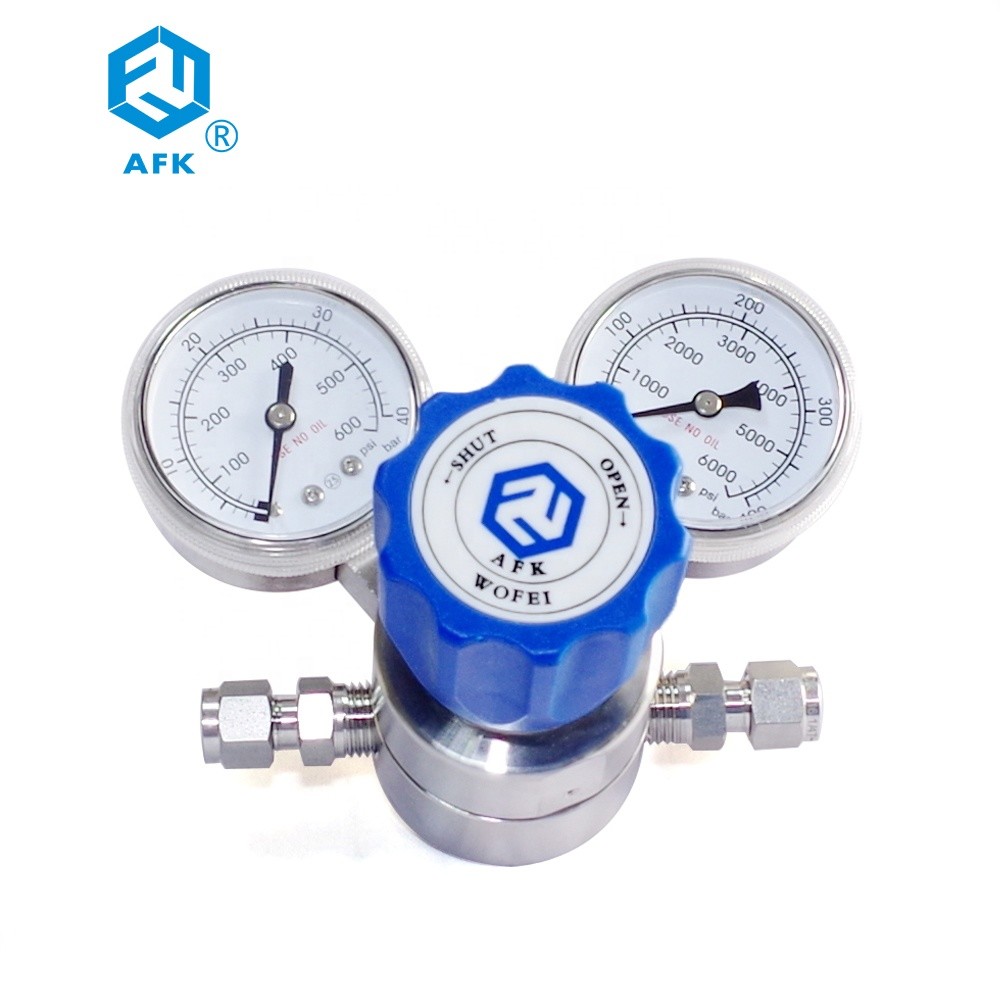

Product Details:
|
| Structure: | Piston | Max Inlet Pressure: | 3000, 6000 Psig |
|---|---|---|---|
| Outlet Pressure Range: | 0~250, 0~500, 0~1500 Psig | Proof Pressure: | 1.5 Times Of Maximum Rated Presure |
| Working Temperature: | -10° F ~+165° F(-23°C+74°C) | Leakage Rate: | Bubble-tight Testing |
| Cv: | 0.06 | Valve Seat: | FCTFE |
| Body Material: | Ss316L | Strainer: | 316L(10 μm) |
| Port: | SHENZHEN | ||
| High Light: | flow control valve,gas cylinder regulator |
||
1)Max inlet pressure: 3000, 6000 psig
2)Outlet pressure: 0~250, 0~500, 0~1500, 0~3000 psig
3)Proof pressure: 1.5 times of maximum rated pressure
4)Working temperature: -10°F-+165°F(-23°C-+74°C)
5)Leakage rate: bubble-tight testing
6)CV: 0.06
7)Body Thread: 1/4" NPT ( F )
8)Body/Bonnet/Stem/Spring loaded: 316L
9)Filter mesh: 316L (10μm)
1) Piston pressure- reducing Structure.
2) Body Thread : 1/4“ NPT ( F )
3) Filter element installed internally
4) Panel mountable or wall mounted
Typical applications
1) Laboratory
2) Gas analysis
3) Process contral
4) Gas bus-bar
5) Testing equipment
Ordering Information
| R41 | L | B | B | D | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet Pressure | Outlet Pressure | Pressure Gauge | Inlet Size | Outlet Size | Options |
| R41 | L:316 | A | B:6000psig | D:0~3000psig | G:MPa gauge | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000psig | E:0~1500psig | P:Psig/bar gauge | 00:1/4″NPT(M) | 00:1/4″NPT(M) | ||
| D | F:0~500psig | W:No gauge | 10:1/8″OD | 10:1/8″OD | ||||
| G | G:0~250psig | 11:1/4″OD | 11:1/4″OD | |||||
| J | 12:3/8″OD | 12:3/8″OD | ||||||
| M | 15:6mm”OD | 15:6mm”OD | ||||||
| 16:8mm”OD | 16:8mm”OD |
Company profile
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
