china products 1/4NPT 200bar air compressor regulator in ss/brass

china products 1/4NPT 200bar air compressor regulator in ss/brass
china products 1/4NPT 200bar air compressor regulator in ss/brass china products 1/4NPT 200bar air compressor regulator in ss/brass china products 1/4NPT 200bar air compressor regulator in ss/brass china products 1/4NPT 200bar air compressor regulator in ss/brass china products 1/4NPT 200bar air compressor regulator in ss/brass

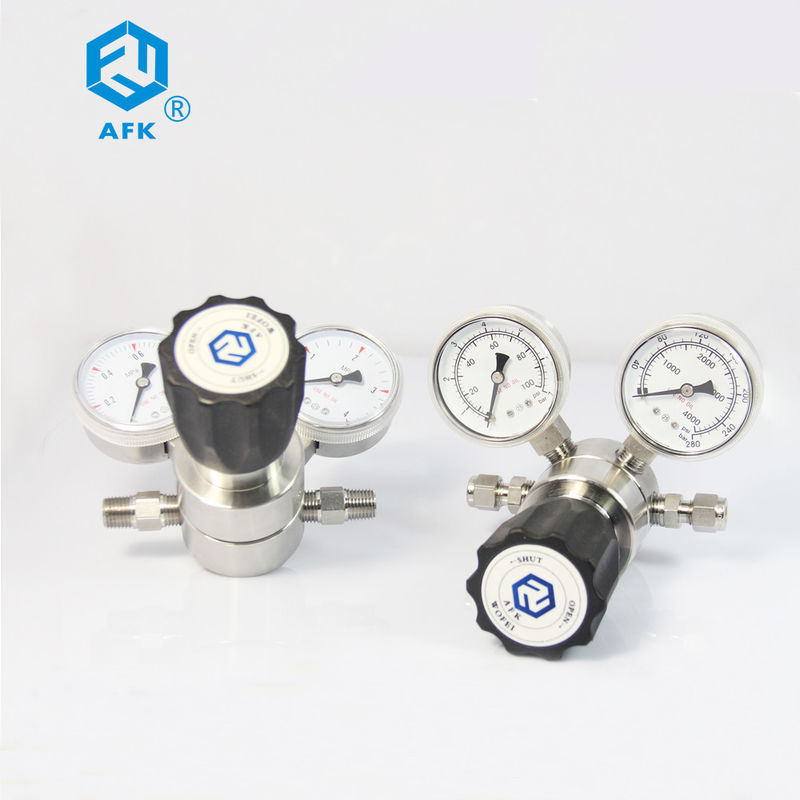

Large Image :  china products 1/4NPT 200bar air compressor regulator in ss/brass

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: R11
Payment & Shipping Terms:
Minimum Order Quantity: 10 - 49 Pieces
Price: Negotiable
Packaging Details: PP bag+export carton
Supply Ability: 5000 Piece/Pieces per Week

china products 1/4NPT 200bar air compressor regulator in ss/brass

Description
Suitable Gas: Co2/lpg/air/propane/Acetylene/Argon/nitrogen Structure: Diaphragm
Material: Ss316L/nickel Plated Brass Body Port: 1/4NPT F
Gauge: Two/one/no Inlet Pressure: 500,3000psig
Outlet Pressure: 0~25, 0~50, 0~50,0~250,0~500psig Packing Details: Neutral/AFK Packing
Warranty: 1 Year Port: Shenzhen
High Light:

flow control valve

,

gas cylinder regulator

china products 1/4NPT 200bar air compressor regulator in ss/brass

Product Description







Technical Diameter
Maximum Inlet Pressure                        500,3000psig
Outlet Pressure Ranges   0~25, 0~50, 0~50,0~250,0~500psig
Safety test pressure 1.5 times maximum inlet pressure
Operating Temperature -40°F to 165°F / -40°c to 74°c
Leakage Rate AgainstAtmosphere 2*10-8atm cc/sec he
Cv value 0.08
Materials
Body                                            316L,Brass
Bonnet 316L. Brass
Diafragm 316L
strainer 316L(10mm)
Seat PCTFE,PTEE,Vespel
Spring 316L
Plunger valve core 316L
Design Features
Single-stage pressure reducer
Maternal and diaphragm use hard seal form
Body NPT:1/4''NPT(F)
The internal structure easy to purge
Can set filters
Can use a panel or wall mounting
Typical Applications

Labotary
Gas Chromatography
Gas laser
Gas bus-bar
petro-chemical industry
Test equipment



 china products 1/4NPT 200bar air compressor regulator in ss/brass 0

Ordering Information

 Pls kindly inform following information to us when you send us inquiry.



1. Media?  co2, o2, N2, H2, or?

2. Atual inlet and outlet pressure?

3. Inlet and outlet connection?

4. Flow rate?

5.  Quantity?

6.  Special demands, pls specify.



china products 1/4NPT 200bar air compressor regulator in ss/brass 1



china products 1/4NPT 200bar air compressor regulator in ss/brass 2

ORDERING INFORMATION

R11 L B D F G 00 00 P
Item

Body

Materia

Body Hole

Inlet

pressure

Outlet

pressure

Pressure gauge Inlet size Outlet size mark
R11 L:316 A D:3000 psi F:0-500 psi G:MPa gauge 00:1/4 " NPT (F) 00: 1/4 " NPT(F) P:Panel mounting
  B:Brass B E:2200 psi G:0-250 psi   01:1/4 " NPT (M) 01: 1/4 " NPT(M) N:Needle valve
    D F:500 psi l:0-100 psi P:Psig/bar gauge 23: CGA330 10:1/8 " OD N:Needle valve
    G   K:0-50 psi   24: CGA350 11:1/4 " OD D:Diaphragm valve
    J   L:0-25 psi W:No gauge 28: CGA660 12:3/8 " OD
    M       28: CGA660 15:6mm OD
            30: CGA590 16:8mm OD
            52: G5/8 "-RH(F)
            63: W21.8-14H(F)
            64: W21.8-14LH(F)



FAQ



Q1. What is your terms of packing?
A: Export standard.



Q2. What is your terms of payment?
A: T/T ,PayPal, Western Union.


Q3. What is your terms of delivery?
A: EXW.


Q4. How about your delivery time?
A: Generally, it will take 5 to 7 days after receiving your full payment. The specific delivery time depends on the items and the quantity of your order.



Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery


Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
A:2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
