Product Details:
|
| Structure: | Diahpragm | Max Inlet Pressure: | 500, 3000 Psig |
|---|---|---|---|
| Outlet Pressure Range: | 0~25, 0~50, 0~100, 0~125, 0~250 Psig | Proof Pressure: | 1.5 Times Of Maximum Rated Presure |
| Working Temperature: | -40° F ~+165° F(-40°C+74°C) | Leakage Rate: | 2*10-8 Atm Cc/sec He |
| Cv: | 1.1 | Valve Seat: | FCTFE, PTFE |
| Body Material: | 316L, Brass | Diaphragms: | 316L |
| Port: | SHENZHEN | ||
| High Light: | flow control valve,gas cylinder regulator |
||

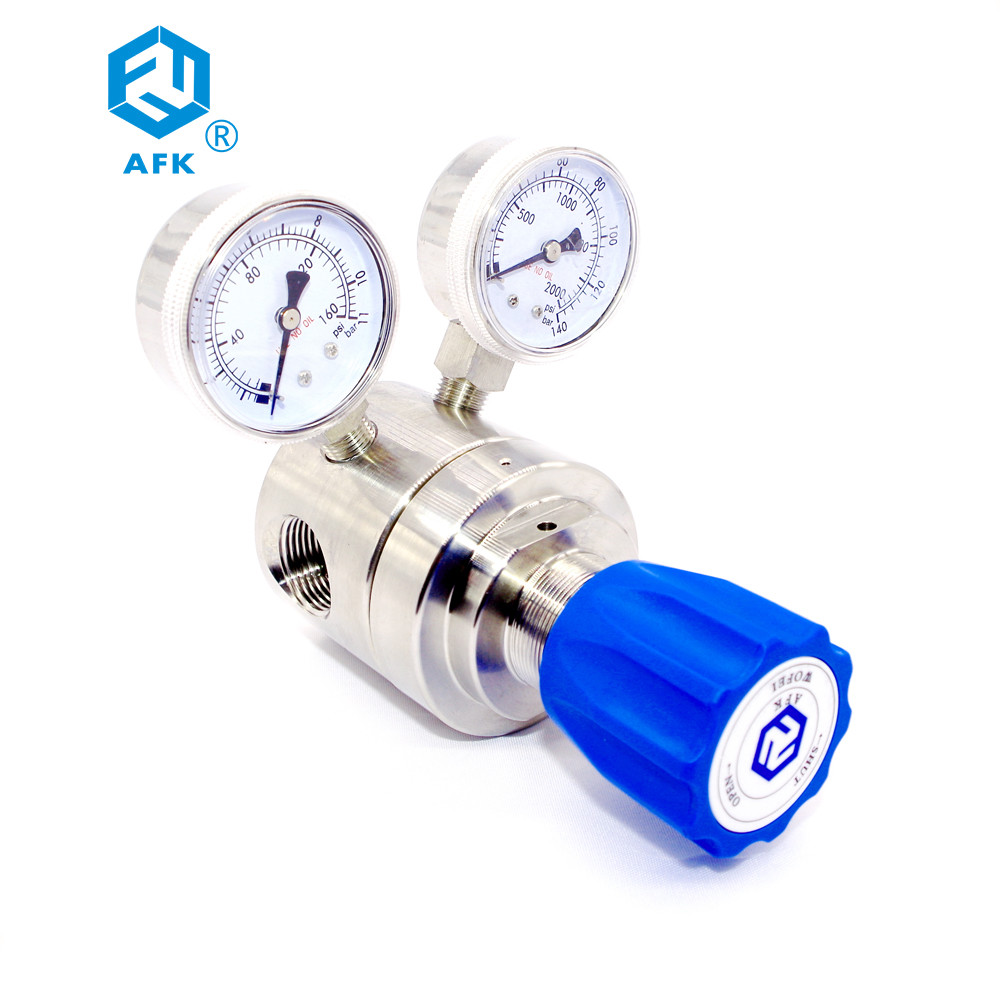

1) Single -stage pressure reducing Structure.
2) Metal-to-metal diaphragm seal.
3) Body Thread : 1/2“ NPT ( F )
4) Pressure gauge, safety valve interface : 1/4" NPT ( F )
5) Filter element installed internally
6) Panel mountable or wall mounting available
|
Material List
|
Tenchnical Data
|
||
|
Body
|
316L, Brass
|
Max inlet pressure
|
500, 3000 psig
|
|
Roof
|
316L, Brass
|
Outlet pressure
|
0~25, 0~50, 0~100, 0~125, 0~250 psig
|
|
Diaphragm
|
316L
|
Proof pressure
|
1.5 times of maximum rated pressure
|
|
Strainer
|
316L (10μm)
|
Working temperature
|
-40°F-+165°F(-40°C-+74°C)
|
|
Valve seat
|
PCTFE, PTFE, Vaspel
|
Leakage rate
|
2*10-8 atm cc/sec He
|
|
Spring loaded
|
316L
|
Cv
|
1.1
|
|
Valve disc regulation pole
|
316L
|
Body Thread
|
1/4" NPT ( F )
|
Ordering information
| R12 | L | B | D | F | G | 02 | 00 | P |
| Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge |
Inlet size |
Outlet size |
mark |
| R12 | L:316 | A | D:3000psi | G:0~250psig | G:MPa gauge | 02:3/8”NPT(F) | 02:3/8”NPT(F) | P:Panel mointing |
| B:Brass | B | F:500psi | H::0~125psig | 03:3/8”NPT(M) | 03:3/8”NPT(M) | R:With relief valve | ||
| D | I::0~100psig | P:Psig/bar gauge | 04:1/2”NPT(F) | 04:1/2”NPT(F) | ||||
| G | K::0~50psig | 05:1/2”NPT(M) | 05:1/2”NPT(M) | |||||
| J | L::0~25psig | W:No gauge | 12:3/8”OD | 12:3/8”OD | ||||
| M | 13:1/2”OD | 13:1/2”OD | ||||||
| Other type is available | Other type is available |
Q1. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. Do you have any MOQ limit ?
A: Low MOQ 1 pic.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
