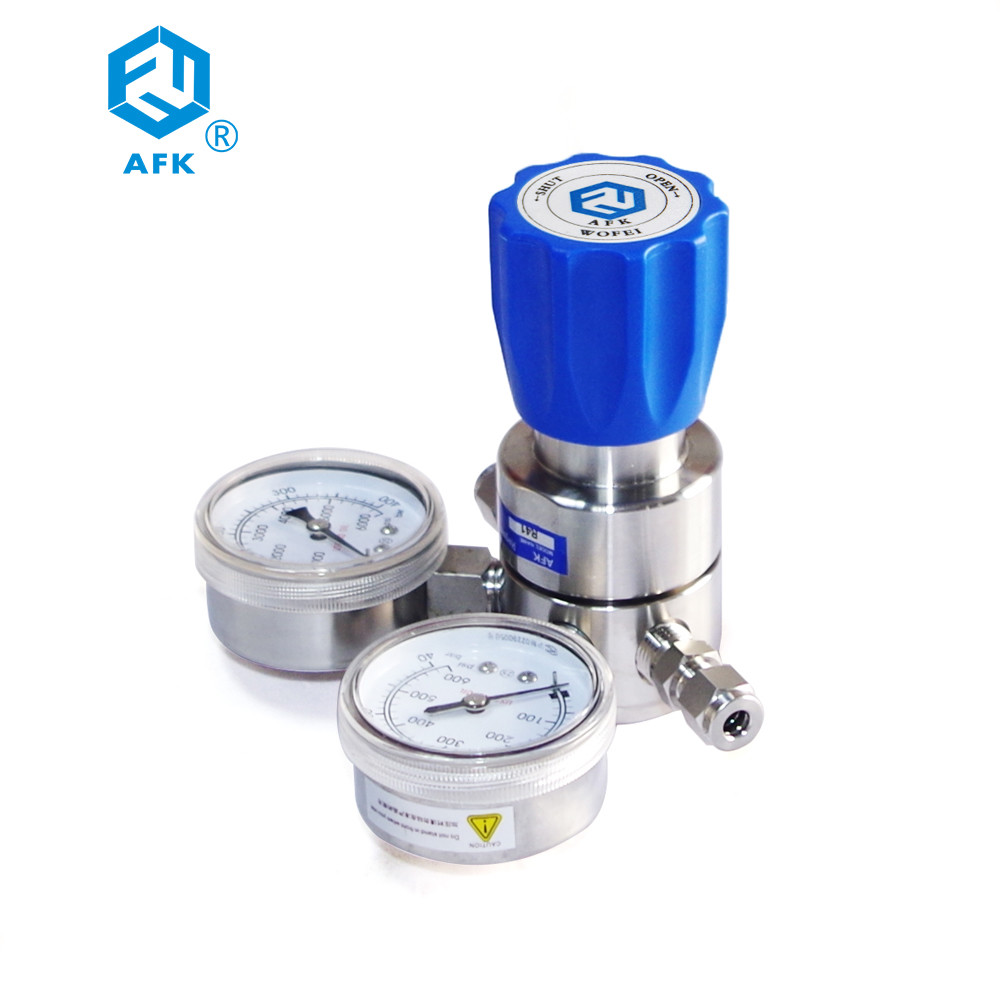

Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: R41
Payment & Shipping Terms
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: Export packing
Supply Ability: 30000 Set/Sets per Week
MOQ: |
1 |
Material: |
316L, Brass |
Feature: |
S |
Applicable Gas: |
Pure Gas, Standard Gas, Corrosive Gas |
Maximum Inlet Pressure: |
3000,6000 Psig |
Body Port: |
1/4NPT |
Gauges: |
Two/one/no |
Amount: |
Panel, Wall Amount For Wall Oxygen Pressure Regulator |
Warranty: |
1 Year |
Port: |
Shenzhen |
MOQ: |
1 |
Material: |
316L, Brass |
Feature: |
S |
Applicable Gas: |
Pure Gas, Standard Gas, Corrosive Gas |
Maximum Inlet Pressure: |
3000,6000 Psig |
Body Port: |
1/4NPT |
Gauges: |
Two/one/no |
Amount: |
Panel, Wall Amount For Wall Oxygen Pressure Regulator |
Warranty: |
1 Year |
Port: |
Shenzhen |
Technical Parameter:
| Maximum Inlet Pressure | 3000,6000psig | |||||
| Outlet Pressure Ranges | 0~250, 0~500, 0~1500,0~3000psig | |||||
| Safety test pressure | 1.5 times maximum inlet pressure | |||||
|
Operating Temperature |
-40°F to +165°F / -40°c to 74°c |
|||||
| Leak rate | foam test | |||||
| Cv value | 0.06 | |||||
Material:
| Body | 316L.Brass | |
| Bonnet | 316L. Brass | |
| Diafragm | 316L | |
| Strainer | 316L(10 μm) | |
| Seat | PCTFE | |
| Spring | 316L | |
| Plunger valve core | 316L | |
| o-ring | viton | |
Design Feature:
Piston type pressure relief structure.
Body NPT:1/4''NPT(F)
Can set filters
Can use a panel or wall mounting
Typical Applications:
Labotary
Gas Chromatography
Gas laser
Gas bus-bar
petro-chemical industry
Test equipment
Flow Diagram:
Ordering Information:
| R41 | L | B | B | D | G | 00 | 00 | P |
| Item | Body Materia | Body Hole | Inlet Pressure | Outlet Pressure | Pressure Gauge | Inlet Size | Outlet Size | Options |
| R41 | L:316 | A | B:6000psig | D:0~3000psig | G:MPa gauge | 00:1/4″NPT(F) | 00:1/4″NPT(F) | P:Panel mounting |
| B:Brass | B | D:3000psig | E:0~1500psig | P:Psig/bar gauge | 00:1/4″NPT(M) | 00:1/4″NPT(M) | ||
| D | F:0~500psig | W:No gauge | 10:1/8″OD | 10:1/8″OD | ||||
| G | G:0~250psig | 11:1/4″OD | 11:1/4″OD | |||||
| J | 12:3/8″OD | 12:3/8″OD | ||||||
| M | 15:6mm”OD | 15:6mm”OD | ||||||
| 16:8mm”OD | 16:8mm”OD |
About us:
FAQ
Q. Are you manufacturer?
A. Yes, we are manufacturer.
Q.What is lead time?
A.3-5days. 7-10 days for 100pcs
Q. How do I order?
A.You can order it from Alibaba directly or send us a inquiry. We will reply you within 24 hours
Q. Do you have any certificates?
A. We have CE certificate.
Q. What materials do you have?
A.aluminium alloy and chrome plated brass are available. The picture shown is chrome plated brass. If you need other material, pls contact us.
