Product Details
Place of Origin: Guangdong, China (Mainland)
Brand Name: AFK
Certification: CE
Model Number: R11
Payment & Shipping Terms
Minimum Order Quantity: 1 Set/Sets
Price: Negotiable
Packaging Details: white box+export carton packing
Supply Ability: 30000 Set/Sets per Week
MOQ: |
1 |
Material: |
316L, Brass |
Feature: |
One-stage |
Applicable: |
Purity Gas, Standard Gas, Corrosive Gas |
Bonnet: |
Ss 316L |
Seat: |
Ss316L |
Spring: |
Ss316L |
O-ring: |
Ss316L |
Strainer: |
Ss316L (10um) |
Warranty: |
1 Year |
Port: |
Shenzhen |
MOQ: |
1 |
Material: |
316L, Brass |
Feature: |
One-stage |
Applicable: |
Purity Gas, Standard Gas, Corrosive Gas |
Bonnet: |
Ss 316L |
Seat: |
Ss316L |
Spring: |
Ss316L |
O-ring: |
Ss316L |
Strainer: |
Ss316L (10um) |
Warranty: |
1 Year |
Port: |
Shenzhen |

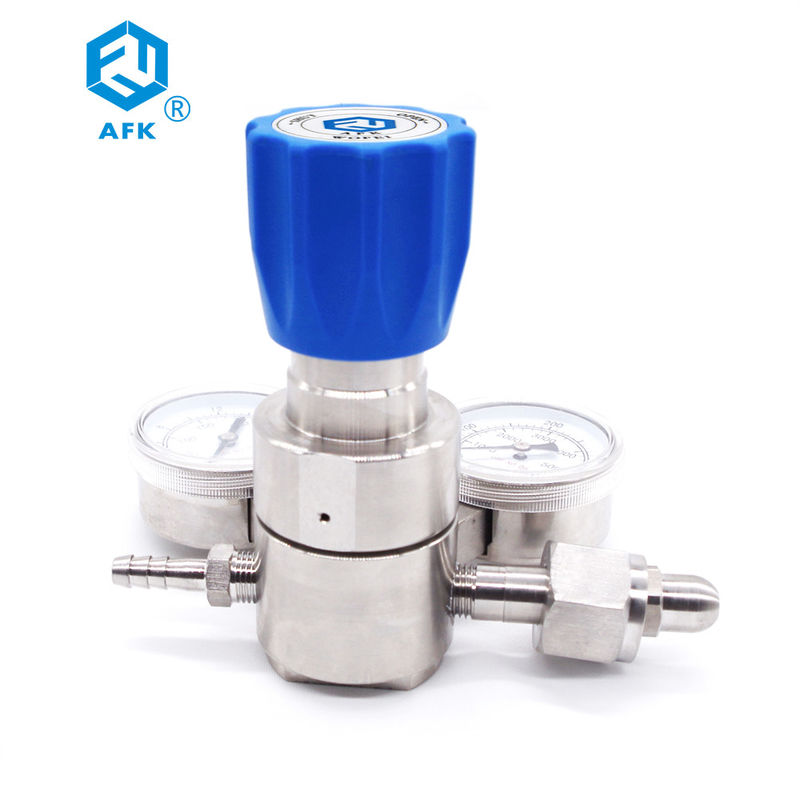

R11 hydrogen c2h2 propane panel mounting high pressure gas regulator
| Technical Diameter: | ||||||
| Maximum Inlet Pressure | 500,3000psig | |||||
| Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig | |||||
| Safety test pressure | 1.5 times maximum inlet pressure | |||||
| Operating Temperature | -40°F to 165°F / -40°c to 74°c | |||||
| Leakage Rate AgainstAtmosphere | 2*10-8atm cc/sec he | |||||
| Cv value | 0.08 | |||||
| Materials: | ||||||
| Body | 316L,Brass | |||||
| Bonnet | 316L. Brass | |||||
| Diafragm | 316L | |||||
| strainer | 316L(10mm) | |||||
| Seat | PCTFE,PTEE,Vespel | |||||
| Spring | 316L | |||||
| Plunger valve core | 316L | |||||
| Design Features: | ||||||
| Single-stage pressure reducer Maternal and diaphragm use hard seal form Body NPT:1/4''NPT(F) The internal structure easy to purge Can set filters Can use a panel or wall mounting |
||||||
| Typical Applications | ||||||
|
Labotary
|
||||||
| R11 | L | B | D | F | G | 00 | 00 | P |
| Item |
Body Materia |
Body Hole |
Inlet pressure |
Outlet pressure |
Pressure gauge | Inlet size | Outlet size | mark |
| R11 | L:316 | A | D:3000 psi | F:0-500 psi | G:MPa gauge | 00:1/4 " NPT (F) | 00: 1/4 " NPT(F) | P:Panel mounting |
| B:Brass | B | E:2200 psi | G:0-250 psi | 01:1/4 " NPT (M) | 01: 1/4 " NPT(M) | N:Needle valve | ||
| D | F:500 psi | l:0-100 psi | P:Psig/bar gauge | 23: CGA330 | 10:1/8 " OD | N:Needle valve | ||
| G | K:0-50 psi | 24: CGA350 | 11:1/4 " OD | D:Diaphragm valve | ||||
| J | L:0-25 psi | W:No gauge | 28: CGA660 | 12:3/8 " OD | ||||
| M | 28: CGA660 | 15:6mm OD | ||||||
| 30: CGA590 | 16:8mm OD | |||||||
| 52: G5/8 "-RH(F) | ||||||||
| 63: W21.8-14H(F) | ||||||||
| 64: W21.8-14LH(F) |
APPLICATIONS
FAQ
Q1. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. Do you have any MOQ limit ?
A: Low MOQ 1 pic.
Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days. Airline and sea shipping also optional.
Q4. How to proceed an order ?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
